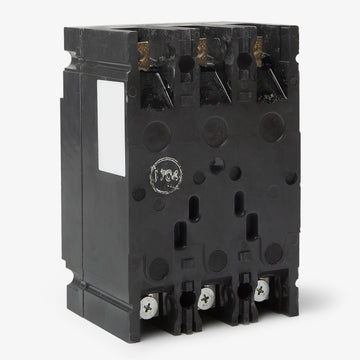

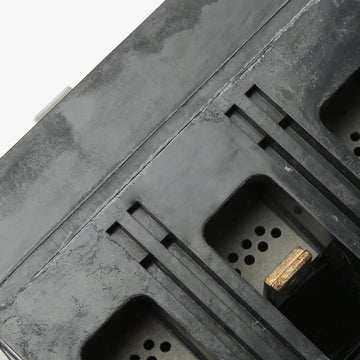

ABB / General Electric TED136050 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
ABB / General Electric
TED136050
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED136050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED136050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED136050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED136050 |
| Series | TED |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards, Motor Control Centers, E150 Enclosures |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, HID Rated |
Quantity
ABB / General Electric TED136050 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED136050 |
| Series | TED |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards, Motor Control Centers, E150 Enclosures |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, HID Rated |
Similar Items
ABB / General ElectricTED134045
45A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134060
60A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136060
60A 3 Pole Molded Case Circuit Breaker
Description
Built to handle demanding electrical loads, this 50A E-frame breaker provides essential long-time and instantaneous protection for commercial facilities. The bolt-on mounting style ensures a secure connection when installed into GE A-Series panelboards, Spectra switchboards, and E150 enclosures. Featuring a non-interchangeable trip unit and reverse feed capabilities, it delivers an 18kAIC rating at 480VAC alongside HACR and HID certifications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED136050 |
| Series | TED |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards, Motor Control Centers, E150 Enclosures |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, HID Rated |
Product FAQs
6 answersWhat panelboards and enclosures accept the TED136050 breaker?
This E-frame breaker installs in GE A-Series and Spectra panelboards. It is also compatible with GE switchboards, motor control centers, and standalone E150 enclosures.
Why is the TED136050 listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. Depending on the production date, the TED136050 may feature either GE or ABB branding. Both versions share the exact same form factor, fit, and electrical specifications.
Is the TED136050 suitable for direct current (DC) systems?
Yes, this thermal magnetic breaker is rated for DC applications. It provides a 10kA interrupting capacity at both 250VDC and 500VDC.
Can I adjust the trip curve on the TED136050?
No. The TED136050 features fixed thermal and fixed magnetic trip elements. The long-time and instantaneous trip functions are factory set and cannot be modified in the field.

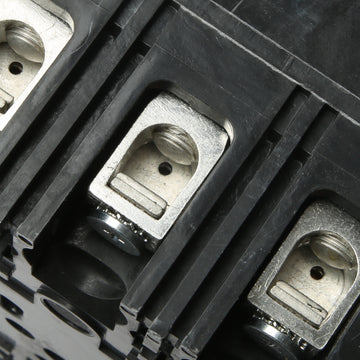

What type of wire can be used with the TED136050 lugs?
The factory lugs accept 14 to 2 AWG copper conductors or 12 to 2 AWG aluminum conductors. Ensure all connections are torqued to the manufacturer specifications printed on the breaker label.
How does the TED136050 mount into the equipment?
This is a bolt-on circuit breaker. It secures directly to the busbars using mounting hardware, which provides a rigid connection ideal for high-vibration environments like motor control centers.
