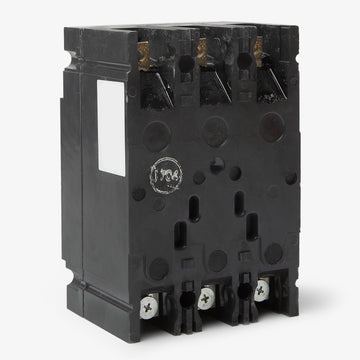

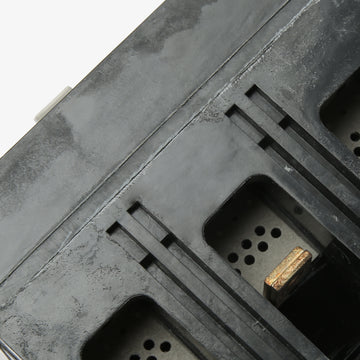

ABB / General Electric TED134060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
ABB / General Electric
TED134060
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED134060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED134060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED134060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134060 |
| Series | TED |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC, 10kA @ 500VDC |

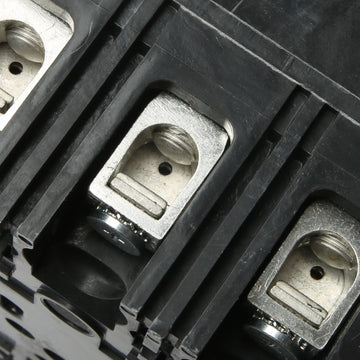

| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TED134060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134060-R |
| Series | TED |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTED134070
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136070
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134050
50A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy E-Frame family, the GE TED134060 is a 3-pole molded case circuit breaker designed for commercial and industrial power distribution. It mounts into GE A-Series panelboards, Spectra Series switchboards, and compatible motor control centers. Rated for 18 kAIC at 480VAC, this bolt-on breaker features fixed thermal-magnetic trip units with long-time and instantaneous (LI) protection. It is HACR rated and reverse feed compatible for versatile installation.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED134060 |
| Series | TED |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat is the difference between TED134060 and TED134060WL?
The standard TED134060 includes factory installed copper and aluminum load lugs only. The TED134060WL catalog number indicates that the circuit breaker is supplied with both line and load lugs installed.
Are ABB and GE TED134060 breakers interchangeable?
Yes. ABB acquired GE Industrial Solutions and continues to manufacture the legacy E150 product line. An ABB branded TED134060 is a direct, drop-in replacement for an older General Electric breaker with the exact same part number.
Which hardware kit is needed to install this breaker in a GE A-Series panelboard?
When mounting the TED134060 or other E150 frame breakers into a GE A-Series panelboard, you must use the ASPTED3P mounting hardware kit for a secure, factory-approved fit.
Is the TED134060 circuit breaker suitable for reverse feed wiring?
Yes, manufacturer documentation confirms that all TEB, TED, and THED circuit breakers in the E150 line are approved for reverse feed applications.
Is the TED134060 HACR rated?
Yes, all TED series circuit breakers 15 amps and higher are UL listed as HACR type, making this 60-amp unit fully suitable for heating, air conditioning, and refrigeration equipment loads.
Can this breaker be used for HID lighting circuits?
Yes, the TED134060 is UL listed for use with High Intensity Discharge (HID) lighting applications.
