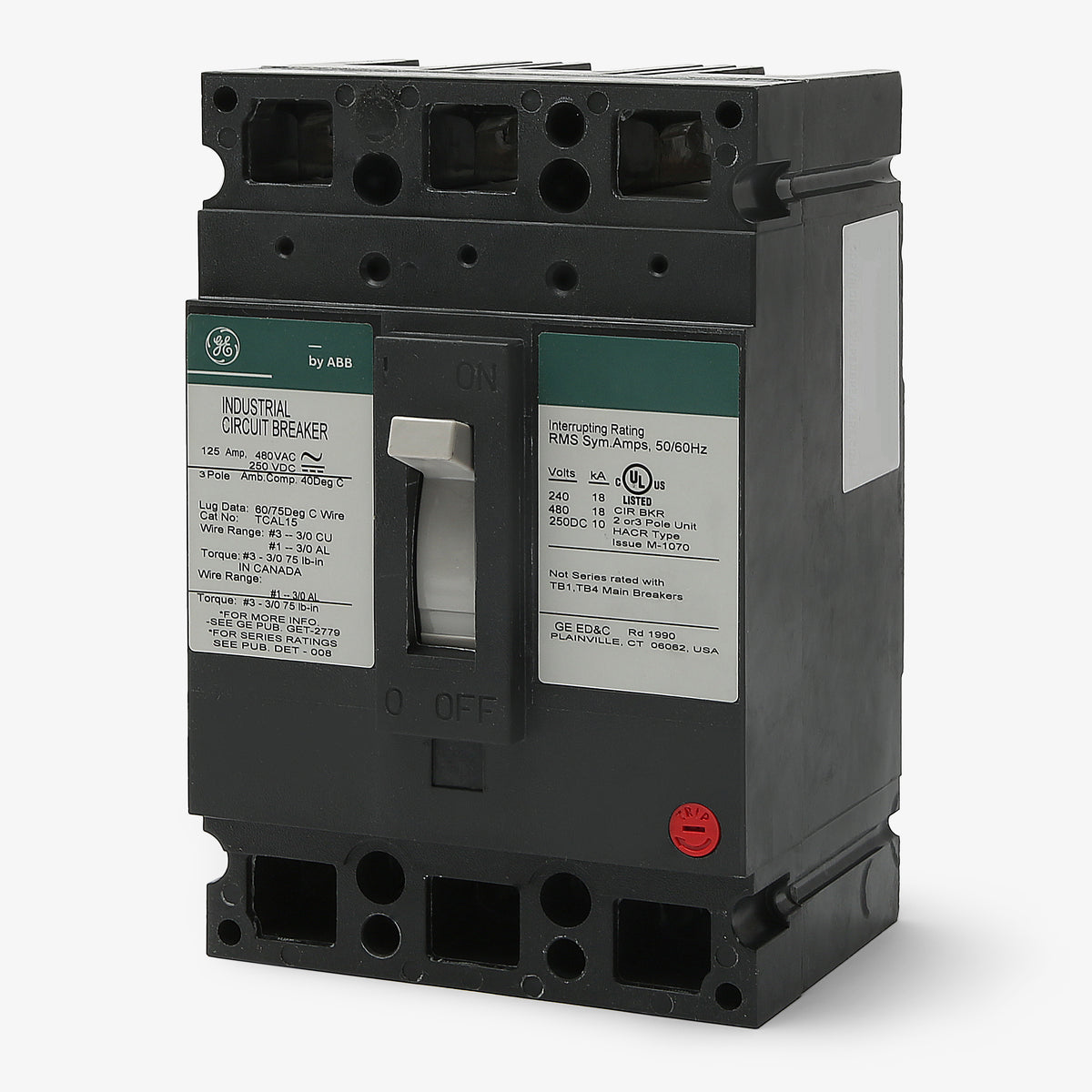

ABB / General Electric TED136090WL Molded Case Circuit Breaker
- 90A
- 3 Pole
- Unit Mount
ABB / General Electric
TED136090WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED136090WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED136090WL - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TED136090WL - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED136090WL |
| Series | TED |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL15) |
| Standards | UL 489, NEMA AB 1, CSA C22.2 No. 5 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Quantity
ABB / General Electric TED136090WL - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED136090WL-R |
| Series | TED |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL15) |
| Standards | UL 489, NEMA AB 1, CSA C22.2 No. 5 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Similar Items
ABB / General ElectricTED134100WL
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED136100WL
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134080WL
80A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy E-Frame family, this 90-amp unit mount molded case circuit breaker provides reliable long-time and instantaneous protection for commercial facilities. It mounts into individual enclosures, switchboards, and motor control centers using standard lugs. The device accommodates 3 AWG to 3/0 AWG copper or aluminum wiring. Featuring an 18kAIC rating at 480VAC, it includes a non-interchangeable trip unit and reverse feed capabilities alongside a standard HACR rating.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED136090WL |
| Series | TED |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs (TCAL15) |
| Standards | UL 489, NEMA AB 1, CSA C22.2 No. 5 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhat does the "WL" suffix in the TED136090WL catalog number indicate?
The "WL" suffix indicates that the circuit breaker comes equipped with factory-installed wire lugs on both the line and load sides. If line lugs are not required for a specific installation, the base breaker is sometimes referenced without the WL suffix.
Is the TED136090WL manufactured by GE or ABB?
The TED136090WL is a legacy General Electric design. Following ABB's acquisition of GE Industrial Solutions, these E-frame breakers are supported under the ABB brand while retaining the original GE catalog numbers and physical dimensions.
Can the TED136090WL circuit breaker be reverse fed?
Yes, GE TED-frame molded case circuit breakers, including the TED136090WL, are suitable for reverse feed applications.
What are the wire size and temperature ratings for the TED136090WL lugs?
The factory-installed lugs accept copper wire from 3 AWG to 3/0 AWG, or aluminum wire from 1 AWG to 3/0 AWG. For this 90-amp breaker, the terminals are dual-rated for use with 60/75°C conductors.
Are the trip settings on the TED136090WL adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. It provides non-interchangeable long-time and instantaneous (LI) protection functions that cannot be field adjusted.
What equipment is the TED136090WL designed to be installed in?
This unit-mount breaker is designed for use in compatible individual enclosures, switchboards, and motor control centers.
