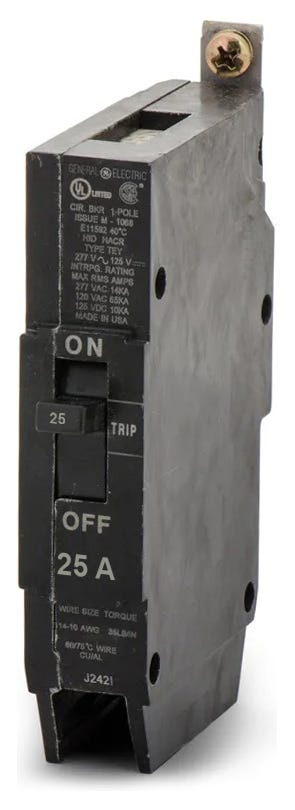

ABB / General Electric TEY125 Miniature Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
ABB / General Electric
TEY125
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEY125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEY125 - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Miniature Circuit Breaker
60A 1 Pole Miniature Circuit Breaker
90A 1 Pole Miniature Circuit Breaker
Description
Delivering robust commercial protection, this 25A single-pole unit is part of the Q-Line family. It provides thermal-magnetic trip functions for standard branch circuits. The bolt-on design installs securely into GE A-Series panelboards. It accepts 14-10 AWG copper wire via standard lug terminals. With a 65kAIC rating at 120V, it handles demanding fault currents and is HACR and HID rated for specialized loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY125 |
| Series | TEY |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC, 14kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhich panelboards are compatible with the TEY125 circuit breaker?
The TEY125 is designed for use in GE A-Series lighting panelboards, including the AQ, AL, AD, AE, and AS series that accept bolt-on Q-Line breakers.
What is the recommended terminal torque for the TEY125?
For the accepted 14-10 AWG copper or 12-10 AWG aluminum wire sizes, the recommended lug tightening torque is 35 in-lb.
Can the TEY125 be used in reverse feed applications?
Yes, standard GE TEY series circuit breakers do not have line and load restrictions, making them suitable for reverse feed applications.
Is the TEY125 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific overcurrent protection.
Is the 25-amp TEY125 rated for Switching Duty (SWD)?
No. Under NEC guidelines, only 15-amp and 20-amp circuit breakers are eligible for a Switching Duty (SWD) rating for fluorescent lighting loads.
Are there direct replacements for the TEY125 with higher interrupting ratings?
Yes. If your system requires a higher interrupting capacity than 14kA at 277VAC, you can upgrade to the TEYF125, which provides 18kA at 277VAC. For even higher ratings, the TEYD, TEYH, and TEYL series offer up to 65kA at 277VAC in the same bolt-on footprint.
