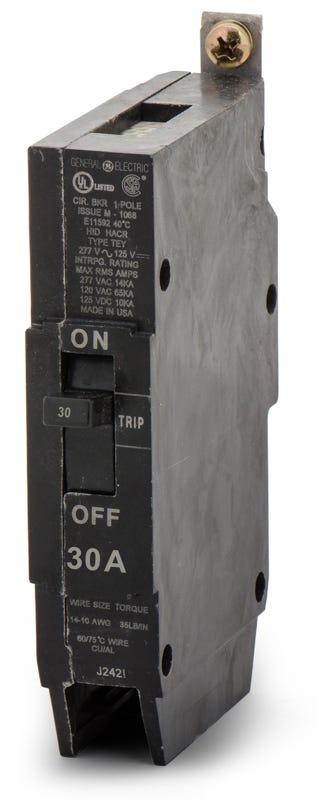

ABB / General Electric TEY130 Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
ABB / General Electric
TEY130
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEY130
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEY130 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEY130 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY130 |
| Series | TEY |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC, 14kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric TEY130 - 30A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY130-R |
| Series | TEY |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC, 14kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Similar Items
20A 1 Pole Miniature Circuit Breaker
60A 1 Pole Miniature Circuit Breaker
90A 1 Pole Miniature Circuit Breaker
Description
Built for heavy-duty commercial environments, this 30A single-pole device offers dependable thermal-magnetic overcurrent defense. It features a quick-make, quick-break mechanism to prevent arcing. Designed specifically for GE A-Series lighting panelboards, the bolt-on mounting style guarantees a firm connection. Capable of interrupting 65kA at 120VAC, it meets stringent safety requirements and is HID and HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY130 |
| Series | TEY |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 240VAC, 14kA @ 277VAC, 10kA @ 125VDC, 14kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat panelboards accept the TEY130 circuit breaker?
The TEY130 is a bolt-on device engineered specifically for GE A-Series lighting panelboards, which includes the Pro-Stock panel line. It cannot be used in residential GE PowerMark load centers or any enclosures requiring plug-on connections.
Why does my replacement TEY130 arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions, integrating their electrical product lines. Currently manufactured TEY130 breakers feature ABB branding but remain exact direct replacements for legacy GE TEY models, maintaining identical physical and electrical characteristics.
Can I use a TEYF130 or TEYD130 in place of a standard TEY130?
Yes. The TEYF130 (rated 18kAIC at 277V) and TEYD130 (rated 25kAIC at 277V) share the exact same physical dimensions and mounting footprint as the standard 14kAIC TEY130. They can be used as direct bolt-on replacements if your commercial lighting panel requires a higher short-circuit interrupting rating.
Can the TEY130 miniature circuit breaker be mounted on a standard DIN rail?
No. Although classified as a miniature circuit breaker, the TEY frame does not support 35mm DIN rail installation. It features a specialized mounting base designed strictly for bolting directly to the busbars within an A-Series panelboard chassis.
How does the fixed LI trip function operate on this model?
The LI designation indicates a thermal-magnetic mechanism providing Long-Time (L) and Instantaneous (I) protection. The thermal bimetal reacts to sustained overloads by heating up and tripping, while the magnetic electromagnet acts immediately to clear severe short-circuit faults. Both trip thresholds are fixed at the factory and cannot be adjusted.
Is the TEY130 approved for switching heavy commercial lighting loads?
Yes. The TEY130 carries both HID (High-Intensity Discharge) and HACR (Heating, Air Conditioning, and Refrigeration) ratings. This ensures the breaker can safely handle the initial inrush currents generated by heavy inductive loads without experiencing nuisance tripping.
