ABB / General Electric TEY215 Miniature Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
ABB / General Electric
TEY215
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEY215
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

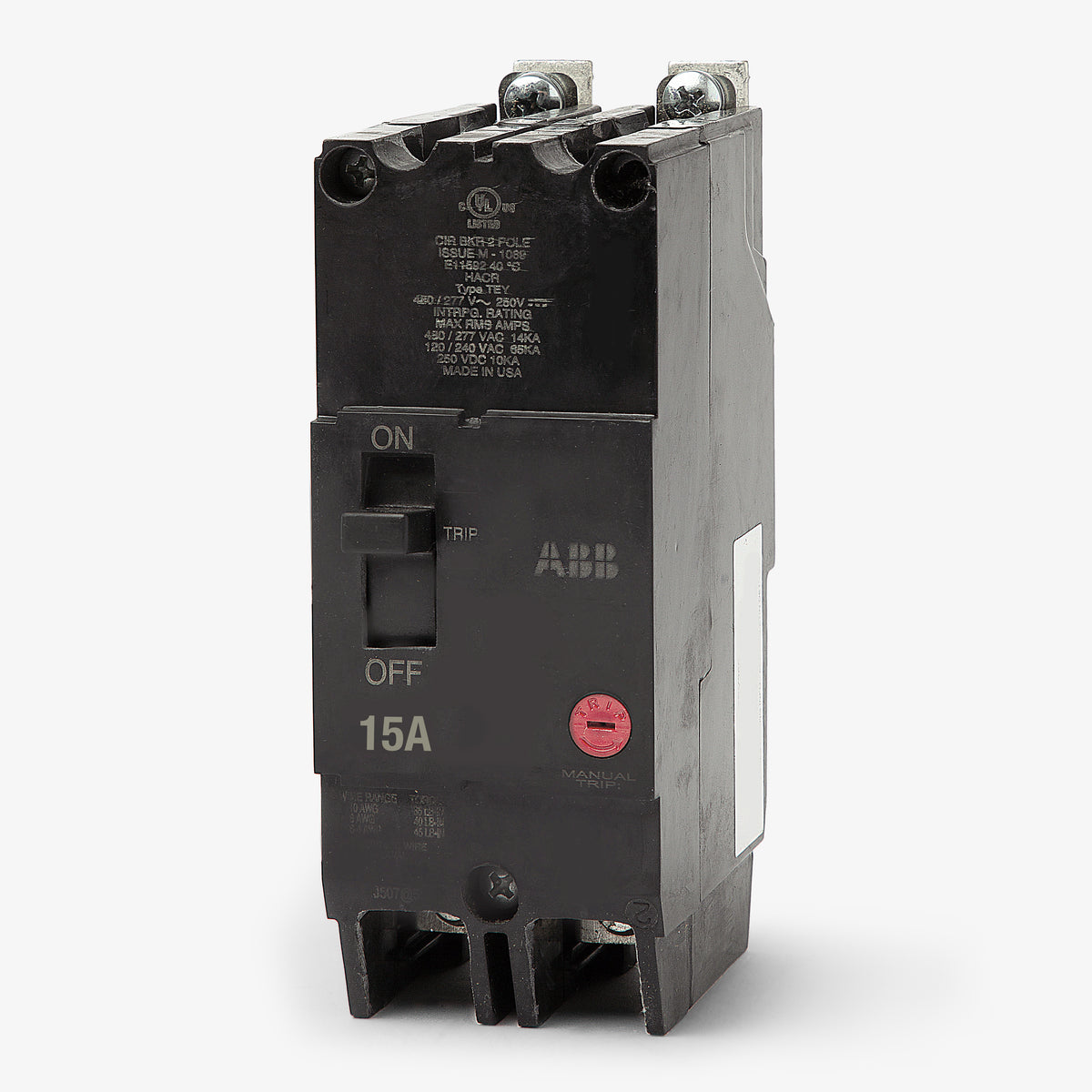

ABB / General Electric TEY215 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEY215 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY215 |
| Series | TEY |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|

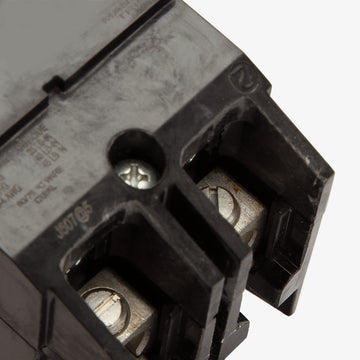

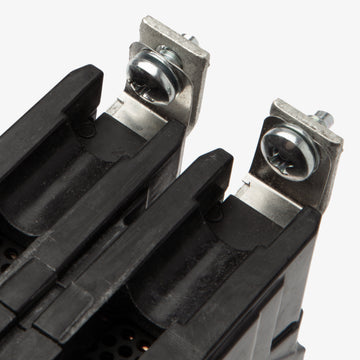

| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Quantity
ABB / General Electric TEY215 - 15A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY215-R |
| Series | TEY |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Similar Items
25A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Part of the Q-Line family, this 15-amp, two-pole miniature circuit breaker delivers robust overcurrent protection for commercial environments. It is specifically rated for grounded 480Y/277 VAC systems. This unit installs into GE A-Series panelboards using a secure bolt-on connection. It accepts 14-8 AWG copper or 12-8 AWG aluminum wire via standard load side lugs. Rated at 14 kAIC at 480Y/277V, it features a quick-make/quick-break mechanism and is both HACR and HID rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY215 |
| Series | TEY |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersIs the TEY215 breaker compatible with standard residential GE load centers?
No. The TEY215 is a bolt-on molded case circuit breaker designed specifically for GE A-Series lighting panelboards. It cannot be used in residential load centers, which typically require plug-in THQL or THQP breakers.
What is the difference between the TEY215 and the THQB2115?
Both are 15A, 2-pole bolt-on breakers for GE panels, but they target different system voltages. The TEY215 is rated for systems up to 480Y/277VAC at 14kAIC. The THQB2115 is limited to 120/240VAC at 10kAIC.
What is the recommended terminal tightening torque for the TEY215 lugs?
According to manufacturer specifications, the lug tightening torque is 35 in-lbs for 14 AWG to 10 AWG wire, and 40 in-lbs for 8 AWG wire.
Can the TEY215 be applied in DC control systems?
Yes, this thermal-magnetic breaker carries a 250VDC rating with a 10kAIC interrupting capacity. This allows it to protect compatible direct current circuits as well as standard AC loads.
What does the LI trip function on the TEY215 provide?
The LI designation indicates Long-Time and Instantaneous trip capabilities. The fixed thermal element provides Long-Time protection against sustained overloads, while the fixed magnetic element provides Instantaneous protection for immediate tripping during short-circuit faults.
Does the TEY215 support DIN rail mounting in a control panel?
No. This breaker requires a bolt-on connection directly to the busbars of a GE A-Series panelboard or a dedicated GE Q-Line mounting base. It is not designed for DIN rail installations.
