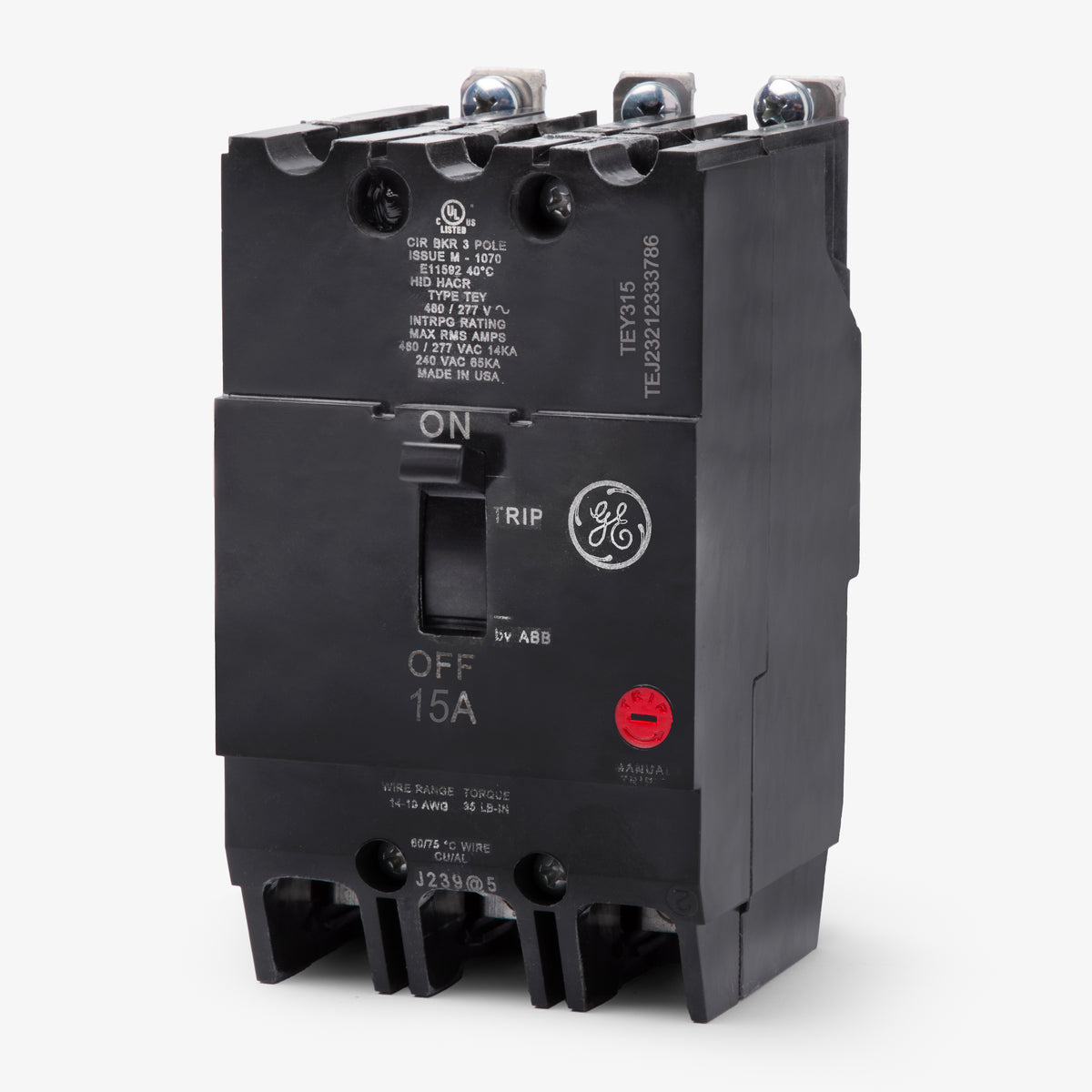

ABB / General Electric TEY315 Miniature Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
ABB / General Electric
TEY315
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEY315
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEY315 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEY315 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY315 |
| Series | TEY |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Quantity
ABB / General Electric TEY315 - 15A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY315-R |
| Series | TEY |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
20A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEY320ST12
20A 3 Pole Miniature Circuit Breaker
25A 3 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial power distribution, this 15A three-pole Q-Line breaker provides reliable thermal-magnetic overcurrent protection. It installs seamlessly into GE A-Series lighting panels and similar bolt-on enclosures. Rated for 14kAIC at 480Y/277V and 65kAIC at 240V, the unit features a common trip mechanism and is fully HACR and HID rated for specialized lighting and HVAC loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY315 |
| Series | TEY |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the TEY315 circuit breaker?
The TEY315 is primarily designed for installation in GE A-Series lighting panelboards, including AQ, AE, AL, and AD types. It features a bolt-on mounting design specific to these enclosures.
Can the TEY315 be mounted outside of a standard panelboard?
Yes. While typically installed directly onto the bus of A-Series panels, this breaker can be adapted for unit-mount or lug-to-lug installations by using a separate GE TEY3B mounting base accessory.
Is the TEY315 circuit breaker HACR and HID rated?
Yes, this breaker is both HACR (Heating, Air Conditioning, and Refrigeration) and HID (High-Intensity Discharge) rated. This makes it compliant for protecting commercial HVAC equipment and specialized lighting circuits.
Does the TEY315 support direct current (DC) applications?
Yes. In addition to its standard AC ratings, this thermal-magnetic breaker is rated for 250VDC systems, offering a 10kA interrupting capacity for DC distribution applications.
What is the physical width of this 3-pole breaker?
The TEY frame utilizes a compact 1-inch width per pole design. The complete 3-pole TEY315 breaker footprint is exactly 3 inches wide.
Are ABB and General Electric TEY breakers interchangeable?
Yes. Following ABB's acquisition of GE Industrial Solutions, TEY series breakers may feature either ABB or General Electric branding depending on the date of manufacture. The part numbers, form, fit, and UL listings remain identical.
