ABB / General Electric TEY315ST12 Miniature Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
ABB / General Electric
TEY315ST12
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEY315ST12
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

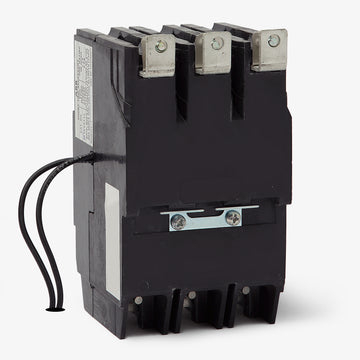

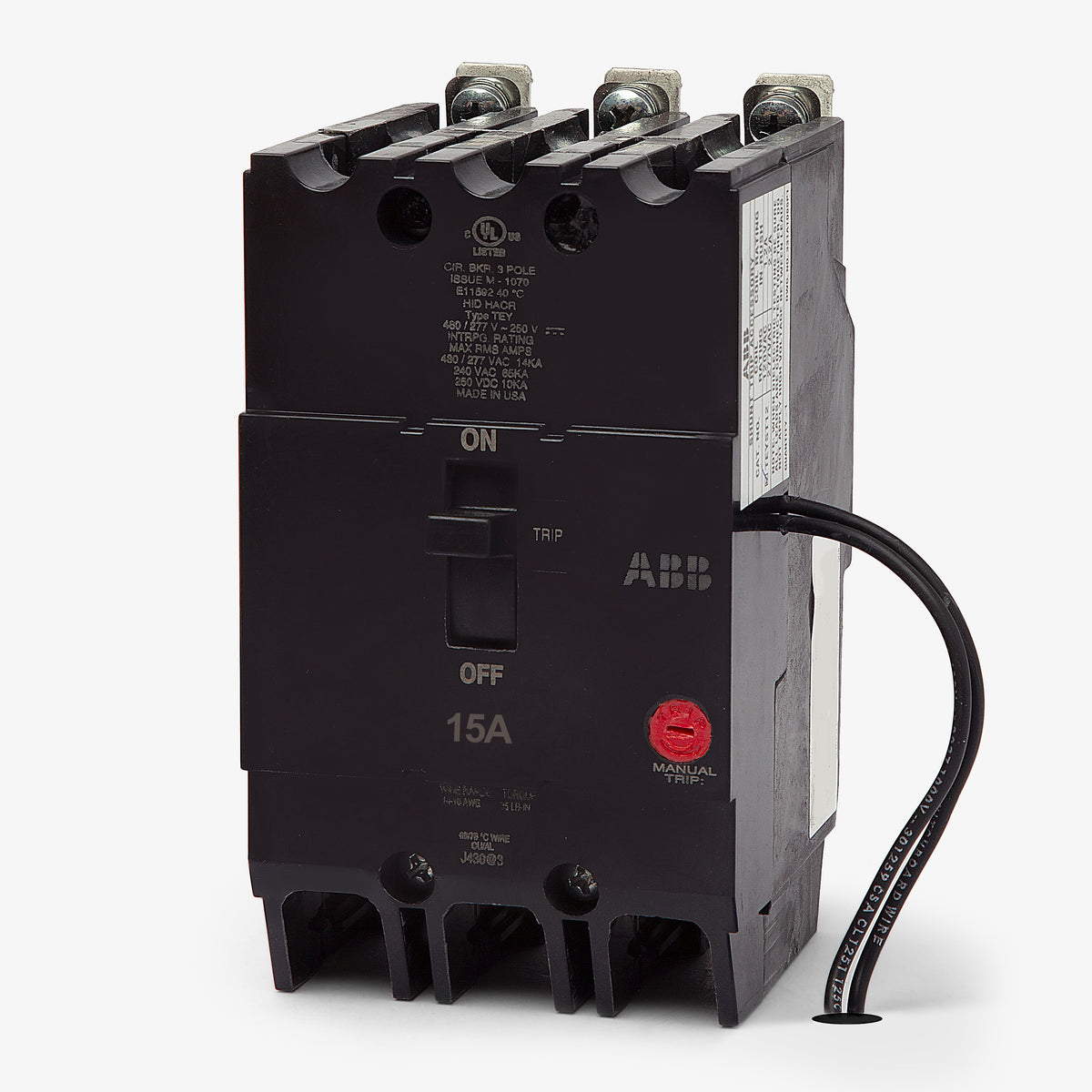

ABB / General Electric TEY315ST12 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEY325ST12
25A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEY330ST12
30A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEY340ST12
40A 3 Pole Miniature Circuit Breaker
Description
Featuring a factory-installed 120-277VAC shunt trip, this 15-amp Q-Line breaker allows for remote circuit disconnection in emergency or control scenarios. It fastens securely into GE A-Series panelboards, providing robust thermal-magnetic protection for commercial facilities. With a 14kAIC rating at 480Y/277V, the three-pole unit integrates a common trip bar and visual trip indicator for simplified maintenance.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY315ST12 |
| Series | TEY |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Shunt Trip (120-277VAC) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Visual Trip Indicator |
Product FAQs
6 answersWhat does the ST12 suffix mean in the TEY315ST12 catalog number?
The ST12 suffix indicates that the breaker comes with a factory-installed shunt trip accessory. This shunt trip operates on a 120-277VAC control voltage, allowing the breaker to be opened remotely for emergency shutdowns or automated control schemes.
Can I add a shunt trip to a standard TEY315 breaker in the field?
No, internal accessories for the TEY series, including the 120-277VAC shunt trip, are factory-installed only. You must order the specific TEY315ST12 catalog number if your application requires remote tripping capabilities.
What panelboards are compatible with the TEY315ST12?

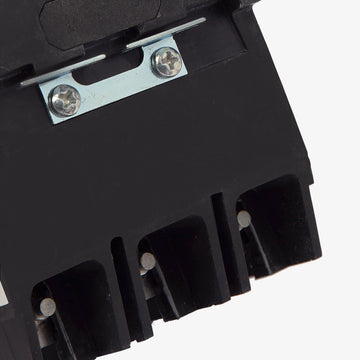

This Q-Line miniature circuit breaker is specifically designed to bolt into GE A-Series panelboards. The bolt-on connection ensures a secure, vibration-resistant installation on the panel bus.

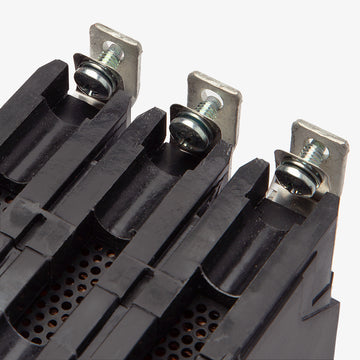

What wire sizes are accepted by the TEY315ST12 terminals?
The factory-installed lugs accept 14-10 AWG copper conductors or 12-10 AWG aluminum conductors. Ensure proper torque is applied during installation as specified on the breaker label.
Can the TEY315ST12 be used in DC circuits?
Yes, in addition to its AC ratings, this breaker is rated for up to 250VDC with a 10kAIC interrupting capacity. This makes it suitable for certain DC control and distribution applications.
Are the trip settings on the TEY315ST12 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time thermal and instantaneous magnetic trip functions are factory-set and cannot be adjusted by the user.
