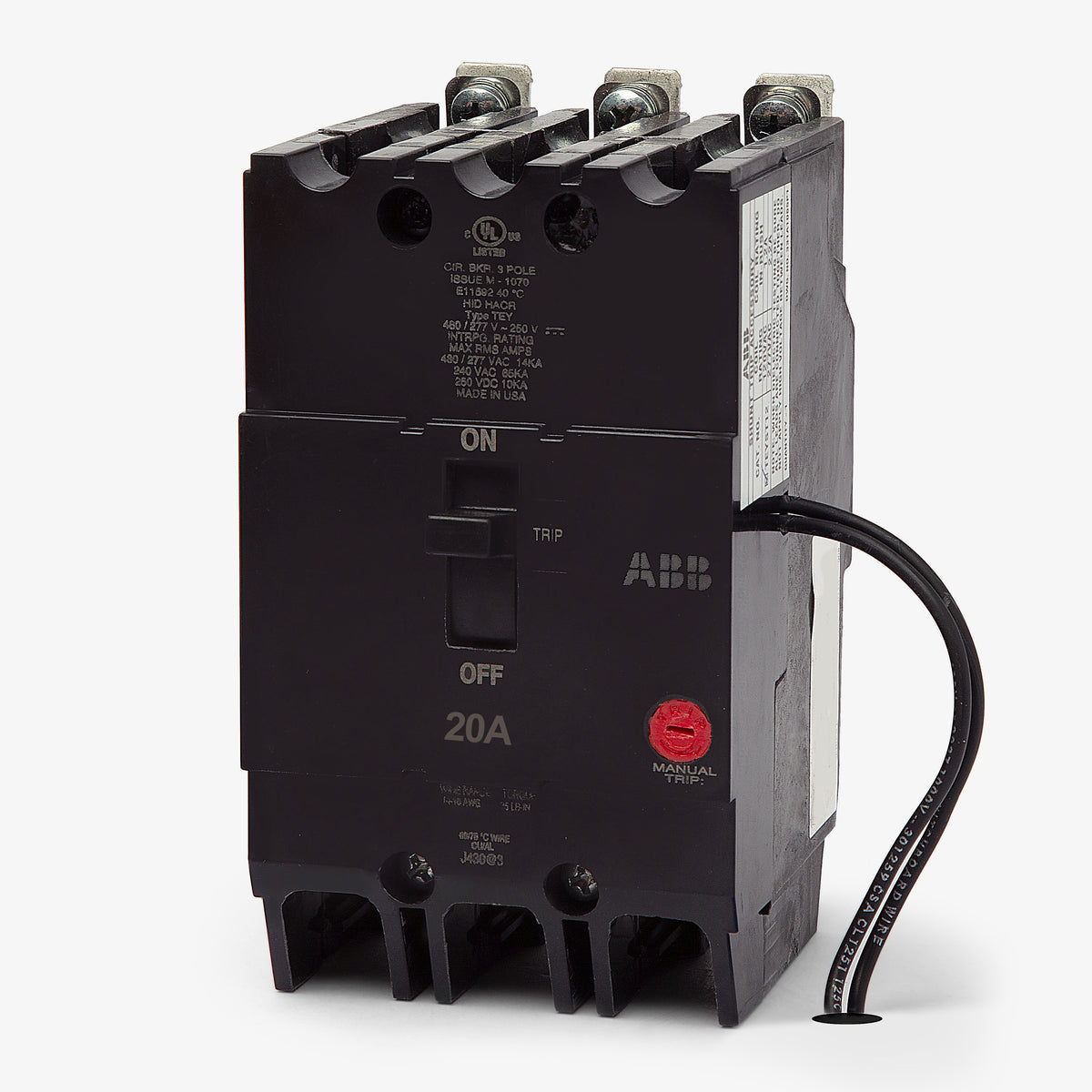

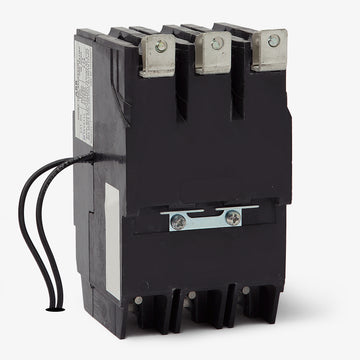

ABB / General Electric TEY320ST12 Miniature Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
ABB / General Electric
TEY320ST12
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEY320ST12
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEY320ST12 - 20A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEY315ST12
15A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEY330ST12
30A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEY340ST12
40A 3 Pole Miniature Circuit Breaker
Description

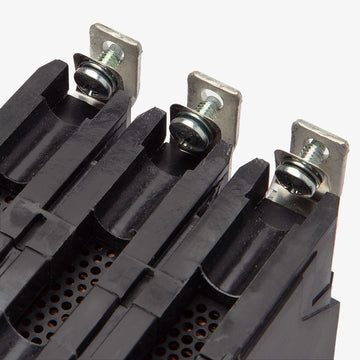

Featuring a factory-installed 120V shunt trip, the GE TEY320ST12 enables remote disconnection of electrical circuits. This 3-pole, 20A miniature circuit breaker provides reliable protection for commercial systems. The unit mounts into GE A-Series panelboards using a sturdy bolt-on configuration. It comes standard with load side lugs that accept 14-8 AWG copper or 12-8 AWG aluminum conductors. With an interrupting capacity of 14 kAIC at 480Y/277V, it handles demanding fault conditions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEY320ST12 |
| Series | TEY |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
8 answersWhat does the ST12 suffix mean on the TEY320ST12 breaker?
The ST12 suffix indicates that this breaker includes a factory-installed shunt trip with a 120 to 277 VAC control voltage. This allows the breaker to be tripped remotely using an external voltage signal, which is commonly required for emergency shutdown systems.
Which panelboards are compatible with the TEY320ST12 circuit breaker?
This bolt-on miniature circuit breaker is designed specifically for use in GE A-Series panelboards. It will not fit in standard residential plug-on load centers.
What are the wire gauge requirements for the TEY320ST12?
The factory lugs accept 14 to 8 AWG copper or 12 to 8 AWG aluminum wire. Because this breaker is often used in commercial lighting and distribution, verify that your conductor material and sizing align with local electrical codes for a 20-amp circuit.
How does the shunt trip function operate on the TEY320ST12?
The factory-installed ST12 shunt trip requires an external 120 to 277 VAC control voltage signal. When voltage is applied to the shunt trip coil, it mechanically trips the breaker to open the circuit. The breaker must be manually reset after the shunt trip is activated.
Is the trip unit on the TEY320ST12 adjustable?
No, this breaker features a fixed thermal magnetic trip unit with long-time and instantaneous (LI) trip functions. The 20-amp trip point cannot be adjusted in the field.
Can I add field-installable internal accessories to the TEY320ST12?
The TEY320ST12 already includes a factory-installed shunt trip. For GE TEY frame breakers, internal accessories such as shunt trips and auxiliary switches are factory-installed only and cannot be added or swapped in the field.
Is the TEY320ST12 rated for direct current applications?
Yes, in addition to its AC ratings, this 3-pole breaker is rated for up to 250 VDC with an interrupting capacity of 10 kAIC, making it suitable for specific DC control or distribution circuits.
How is the TEY320ST12 installed in a panelboard?

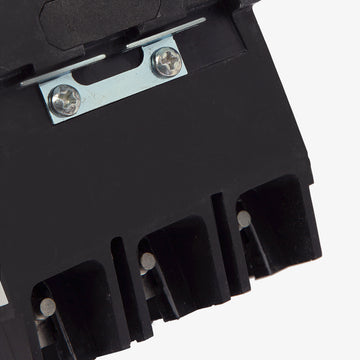

The TEY320ST12 is a bolt-on breaker that fastens directly to the busbar of a GE A-Series panelboard using mounting screws. This bolt-on design ensures a secure, vibration-resistant connection compared to standard plug-on breakers.
