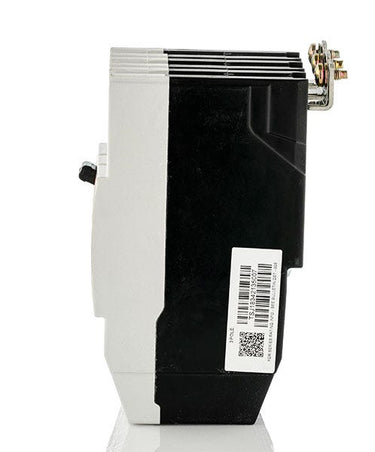

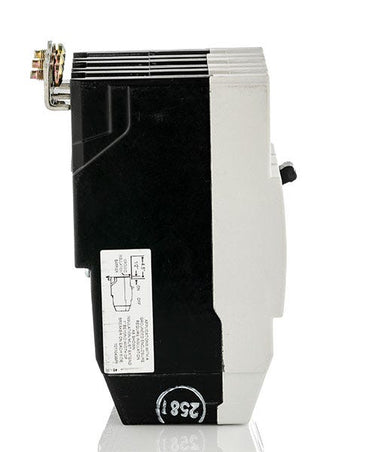

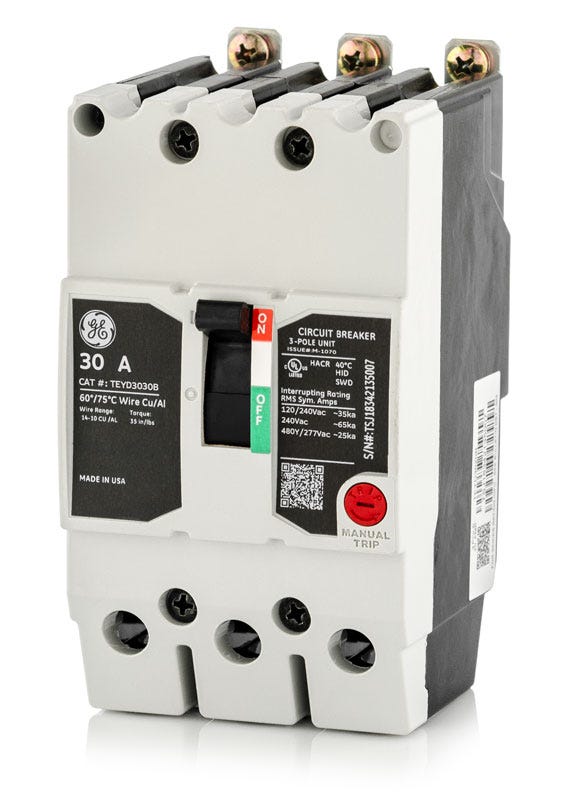

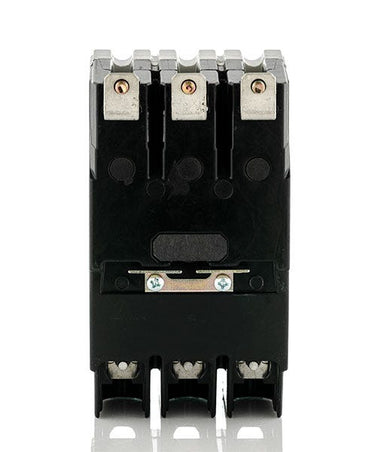

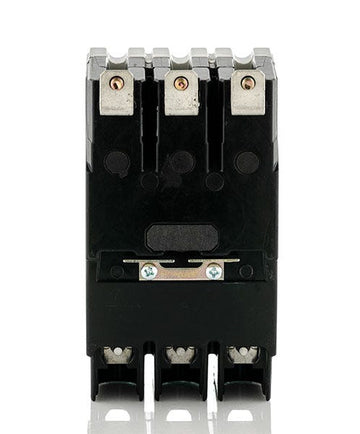

ABB / General Electric TEYD3030B Miniature Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
ABB / General Electric
TEYD3030B
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYD3030B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYD3030B - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYD3025B
25A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEYD3040B
40A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTEYD3020B
20A 3 Pole Miniature Circuit Breaker
Description
A dependable solution for commercial power distribution, the GE TEYD3030B is a 3-pole, 30A miniature circuit breaker. It is equipped with a fixed thermal-magnetic trip mechanism to provide accurate long-time and instantaneous (LI) protection. This Q-Line family breaker is manufactured for bolt-on installation into GE A-Series panelboards. It comes standard with load side lugs that accept 10-4 AWG wiring. Rated to interrupt up to 65kA at 240VAC, it offers substantial fault-clearing capabilities.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYD |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, HID, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the TEYD3030B?
This breaker is primarily designed for installation in GE and ABB A-Series lighting panelboards on grounded 480Y/277VAC systems.
Can this breaker be used in standard residential load centers?
No. This is a commercial bolt-on breaker designed for 480Y/277VAC power distribution. It is not compatible with standard residential plug-on load centers.
Can this breaker be surface mounted or used as a standalone unit?
Yes. While it natively bolts to panel busbars, it can be adapted for unit-mount or lug-to-lug applications by installing a TEY3B mounting base accessory.
What is the difference between TEYD, TEYH, and TEYL breakers?
These series share the exact same physical dimensions and 1-inch per pole frame, but they offer different short-circuit interrupting capacities. The TEYD is rated for 25kAIC at 480Y/277VAC, the TEYH is rated for 35kAIC, and the TEYL provides up to 65kAIC.
Is this breaker rated for HVAC or high-intensity lighting circuits?
Yes. TEYD frame breakers rated 50 amps and under are UL listed as both HACR (Heating, Air Conditioning, and Refrigeration) and HID (High-Intensity Discharge) lighting rated.
