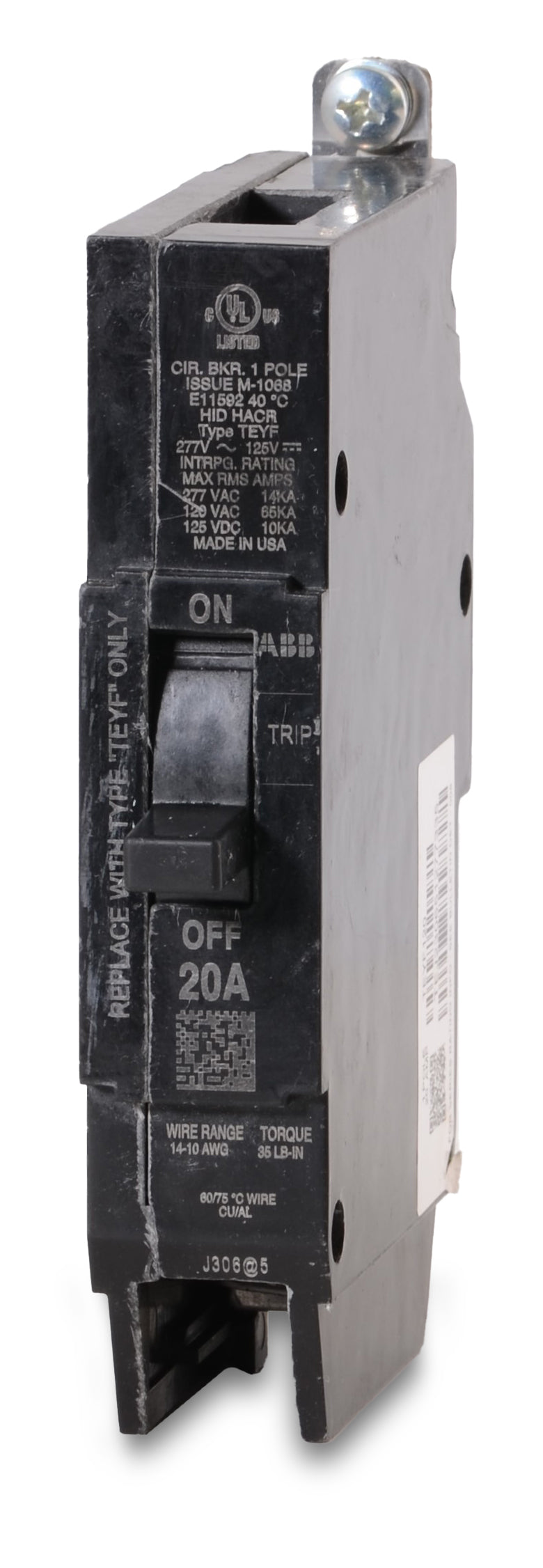

ABB / General Electric TEYF120 Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
ABB / General Electric
TEYF120
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
TEYF120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYF120 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEYF120 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYF120 |
| Series | TEYF |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
Quantity
ABB / General Electric TEYF120 - 20A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEYF |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
Similar Items
20A 3 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL1120
20A 1 Pole Miniature Circuit Breaker
Description
A reliable solution for commercial branch circuit protection, the GE TEYF120 is a single-pole, 20A thermal-magnetic breaker. Part of the Q-Line family, it supports reverse feed applications. Built for seamless integration, it installs into GE A-Series lighting panelboards. The bolt-on design ensures a secure connection. Rated at 18kAIC at 277V, this breaker carries HACR, HID, and SWD ratings, making it ideal for HVAC equipment, high-intensity discharge lighting, and switching duty.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYF120 |
| Series | TEYF |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Lighting Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
7 answersWhich panelboards accept the TEYF120 circuit breaker?
This bolt-on breaker is engineered for GE A-Series and ABB ReliaGear lighting panelboards. It can also be adapted for standalone lug-to-lug applications using a separate TEY3B mounting base.
What is the difference between standard TEY and TEYF breakers?
The difference lies in the short-circuit interrupting capacity. A standard TEY120 is rated for 14kA at 277VAC, whereas the TEYF120 provides an upgraded 18kA rating at the same voltage.
What is the recommended tightening torque for the lug terminals?
For the accepted wire sizes of 14 AWG to 10 AWG, the manufacturer specifies a terminal tightening torque of 35 in-lb.
Is it safe to backfeed or reverse feed the TEYF120?
Yes. TEYF series breakers are reverse-feed capable, meaning they can be safely wired with the supply power connected to either the line or load terminals.
Can this breaker handle direct current (DC) loads?
Yes. The TEYF120 carries a direct current rating of 125VDC, making it suitable for control circuits and other specific DC applications requiring up to a 10kA fault rating.
Why might this breaker arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. As a result, current production TEYF breakers are functionally identical but may feature ABB logos, GE logos, or dual branding depending on the manufacture date.
What are the direct upgrades if I need a higher interrupting capacity than 18kA?
If your panel requires a higher fault rating at 277VAC, you can install the TEYD120 (25kA), TEYH120 (35kA), or TEYL120 (65kA). These alternatives share the exact same physical dimensions and panelboard compatibility as the TEYF120.
