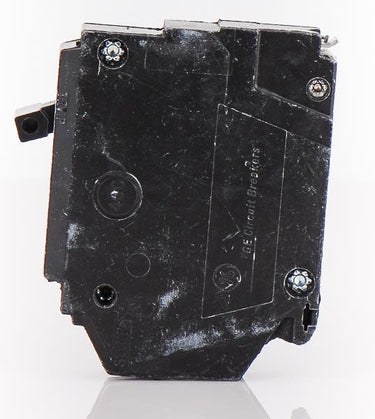

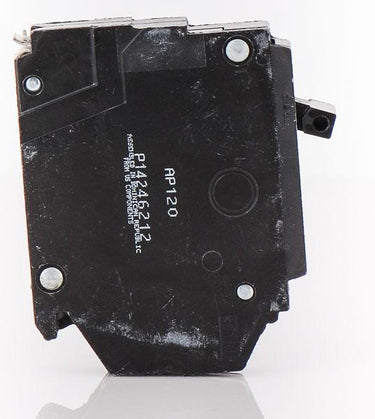

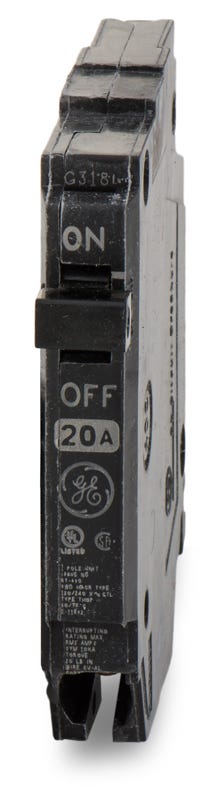

ABB / General Electric THQP120 Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
ABB / General Electric
THQP120
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQP120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQP120 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQP120 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP120 |
| Series | THQP |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, SWD Rated, Reverse Feed, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQP120 - 20A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP120-R |
| Series | THQP |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, SWD Rated, Reverse Feed, Quick-Make/Quick-Break |
Similar Items
15A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
35A 1 Pole Miniature Circuit Breaker
Description
Engineered for space efficiency, the THQP120 is a 1-pole, 20A miniature circuit breaker from GE. By utilizing a 1/2-inch width per pole, this Q-Line breaker allows electricians to add more circuits without requiring a larger enclosure. This unit plugs into GE PowerMark Gold and Q-Line load centers that accept half-inch breakers. It acts as a direct substitute for the UBITB120. Delivering 10 kAIC at 120/240VAC, it ensures robust defense and is fully HACR and SWD rated for safe operation.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQP120 |
| Series | THQP |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQP |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, SWD Rated, Reverse Feed, Quick-Make/Quick-Break |
Product FAQs
7 answersHow does the THQP120 differ from a standard THQL1120 breaker?
The THQP120 is a half-inch wide slim circuit breaker. A standard THQL1120 breaker requires a full 1-inch space per pole. Using a half-inch THQP breaker allows you to fit more circuits into a compatible load center.
Will the THQP120 fit any slot in a GE load center?
No. It must be installed in a GE Q-Line or PowerMark Gold load center specifically designed to accept half-inch THQP breakers. Check your panel label to confirm compatibility before installation.
Is the GE THQP120 suitable for HVAC equipment?
Yes. This circuit breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific safety designation.
Can I use this breaker to switch fluorescent lighting?
Yes. This 20-amp single-pole breaker carries an SWD rating, meaning it is certified for switching duty on 120V fluorescent lighting circuits.
Can I use this GE THQP120 in place of a UBITB120 breaker?
Yes. The GE THQP120 is the exact original equipment manufacturer equivalent and can replace the aftermarket Connecticut Electric UBITB120 circuit breaker.
Can I install this breaker in a Siemens or Murray panel?
No. The THQP120 is only UL listed for installation in compatible ABB and GE enclosures. Installing it in other brands violates electrical codes and voids the panel listing.
Can I use two THQP120 breakers for a 240V circuit?
No. Two single-pole breakers lack the internal common trip mechanism required for 240V loads. You must use a dedicated two-pole breaker, such as the THQP220, to ensure both ungrounded conductors trip simultaneously during a fault.
