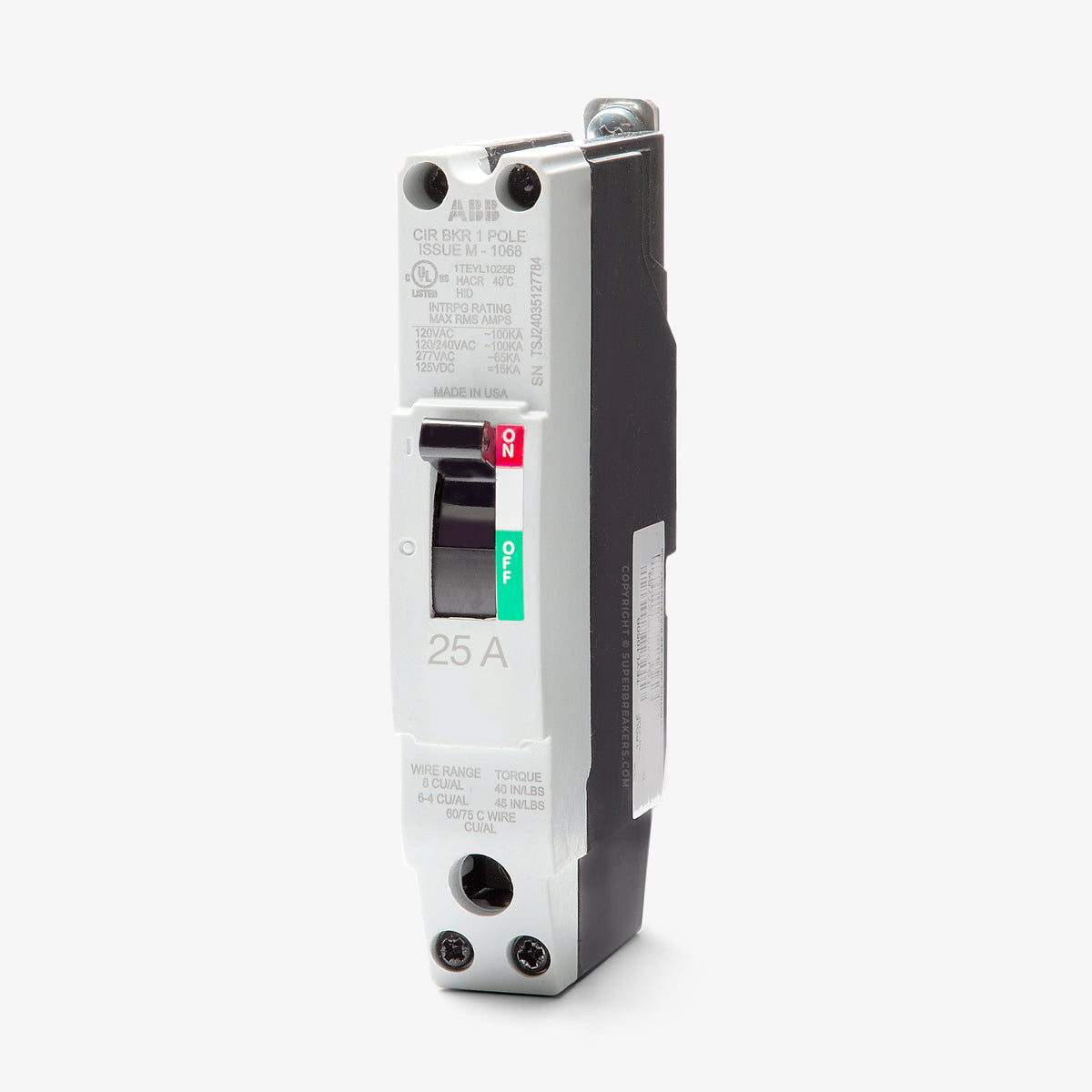

ABB / General Electric TEYL1025B Molded Case Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
ABB / General Electric
TEYL1025B
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEYL1025B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYL1025B - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYL1020B
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEYL1040B
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEYL1045B
45A 1 Pole Molded Case Circuit Breaker
Description
Built for high-fault commercial environments, this 25-amp molded case circuit breaker delivers robust thermal-magnetic protection. It features a current-limiting design to restrict let-through energy during electrical faults. The unit mounts securely into GE A-Series panelboards using a standard bolt-on configuration. With an impressive 65kAIC rating at 277VAC, it handles severe short-circuit conditions. The quick-make, quick-break mechanism ensures reliable operation across facilities.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYL1025B |
| Series | TEYL |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 277VAC, 15kA @ 125VDC, 100kA @ 120/240VAC |
| Frame Type | TEYL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14 AWG - 10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards accept the TEYL1025B circuit breaker?
This Q-Line bolt-on breaker is specifically designed for installation in GE A-Series lighting and distribution panelboards. It is a commercial-grade breaker and will not fit in standard residential plug-on load centers.
What wire gauge is supported by the TEYL1025B lugs?
The factory-installed lugs accommodate 14 AWG to 10 AWG conductors. The terminals are rated for use with both copper (Cu) and aluminum (Al) wire.
Is the TEYL1025B suitable for direct current (DC) circuits?
Yes, this thermal-magnetic breaker is rated for DC applications. It provides an interrupting capacity of 15kA at 125VDC.

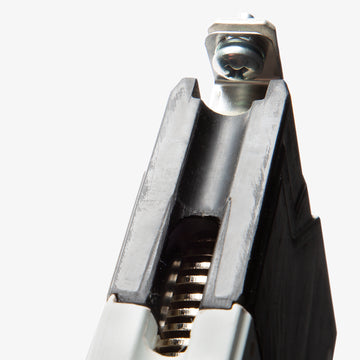

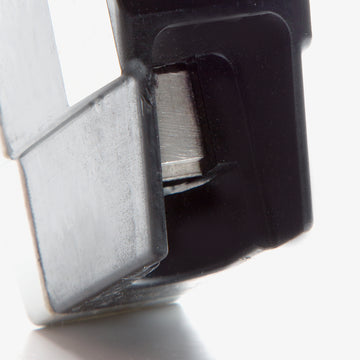

How does the TEYL1025B mount into the panel?
It utilizes a bolt-on connection type, securing directly to the busbar of compatible commercial panelboards. This provides a rigid, secure connection that is highly resistant to vibration.
What is the interrupting capacity of this breaker on 277V systems?
The TEYL1025B features a high interrupting rating of 65kAIC at 277VAC, making it suitable for commercial and industrial facilities with high available fault currents.
