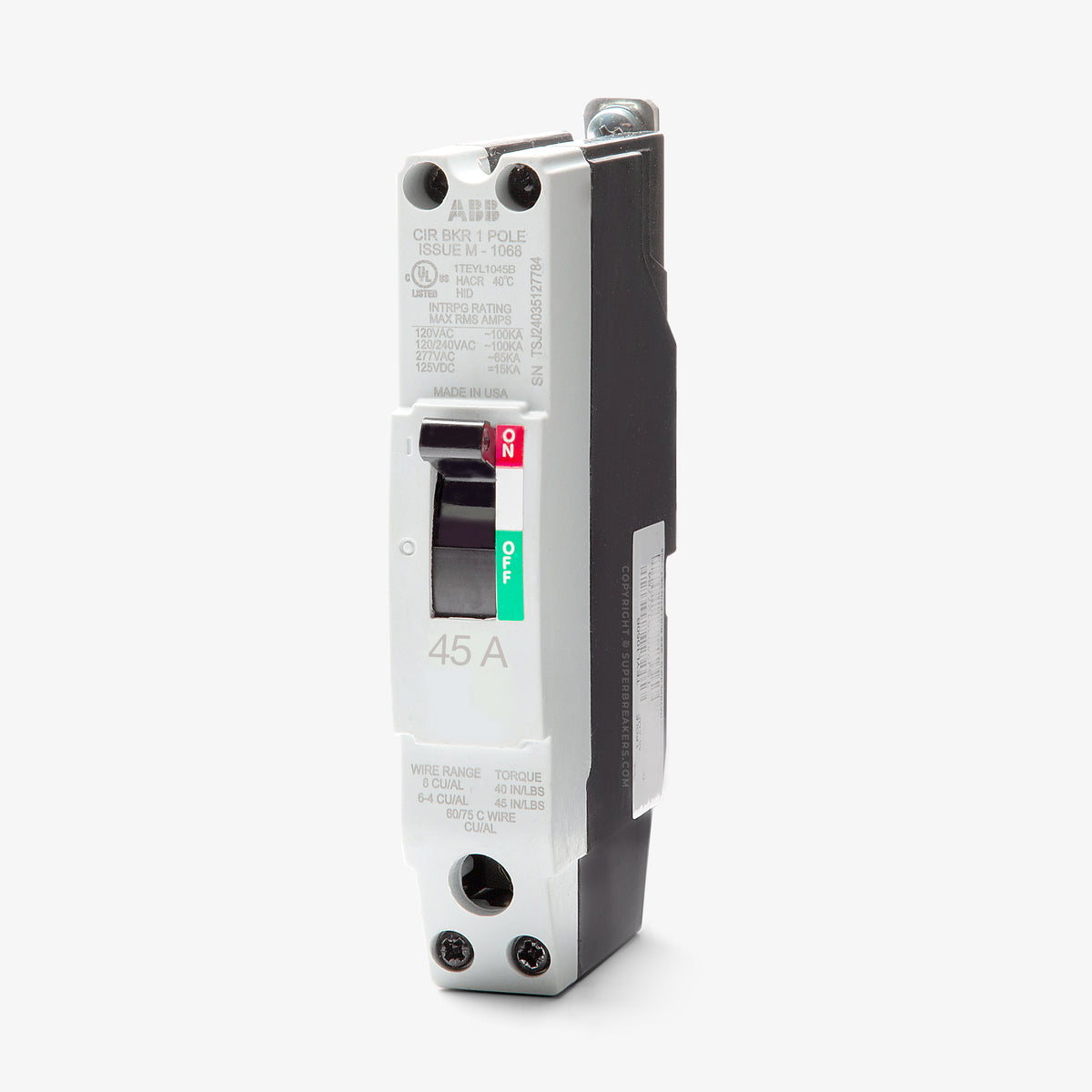

ABB / General Electric TEYL1045B Molded Case Circuit Breaker
- 45A
- 1 Pole
- Bolt-On
ABB / General Electric
TEYL1045B
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEYL1045B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYL1045B - 45A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYL1040B
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEYL1060B
60A 1 Pole Molded Case Circuit Breaker
1 Pole Circuit Breaker
Description
Part of the Q-Line family, the GE TEYL1045B is a 45A, single-pole molded case circuit breaker built for commercial and industrial systems. It provides reliable thermal-magnetic overcurrent protection. This bolt-on breaker mounts into GE A-Series lighting panelboards. It features a quick-make, quick-break mechanism and accepts 10-4 AWG wire via factory-installed load lugs. Rated 65kAIC at 277VAC and 100kAIC at 120VAC, this HACR-rated breaker ensures robust fault clearing.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYL |
| Amperage | 45A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 277VAC, 15kA @ 125VDC, 100kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Visual Trip Indicator, High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the TEYL1045B?
This bolt-on breaker is designed exclusively for GE A-Series lighting panelboards, including AE, AS, AQU, and AEU types configured for TEY-frame branch breakers.
Can I use the TEYL1045B to replace a standard TEY or TEYF breaker?
Yes, the TEYL1045B shares the same physical dimensions and mounting footprint as TEY, TEYF, TEYD, and TEYH breakers. It can be used as a direct upgrade in A-Series panelboards where a higher 65kAIC interrupting rating is required.
What does the "L" in the TEYL1045B catalog number indicate?
The "L" designates the highest interrupting capacity tier within the GE TEY family. While standard TEY breakers are rated at 14kAIC at 277VAC, the TEYL series provides a 65kAIC rating at 277VAC for high-fault applications.
What does the "B" suffix mean on this circuit breaker?

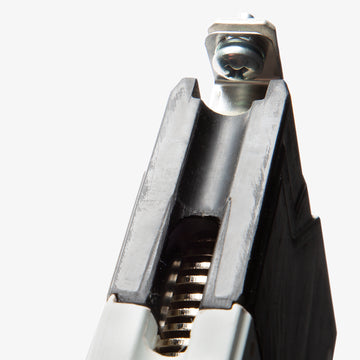

The "B" suffix indicates that the breaker includes factory-installed load-side lugs. The line side bolts directly to the A-Series panelboard bus, while the load lug accepts 10-4 AWG copper or aluminum wire.
Can the TEYL1045B be mounted on a standard DIN rail?
No, this is a bolt-on molded case circuit breaker. It must be bolted directly to the interior bus of a compatible GE A-Series panelboard and cannot be mounted on a DIN rail.
