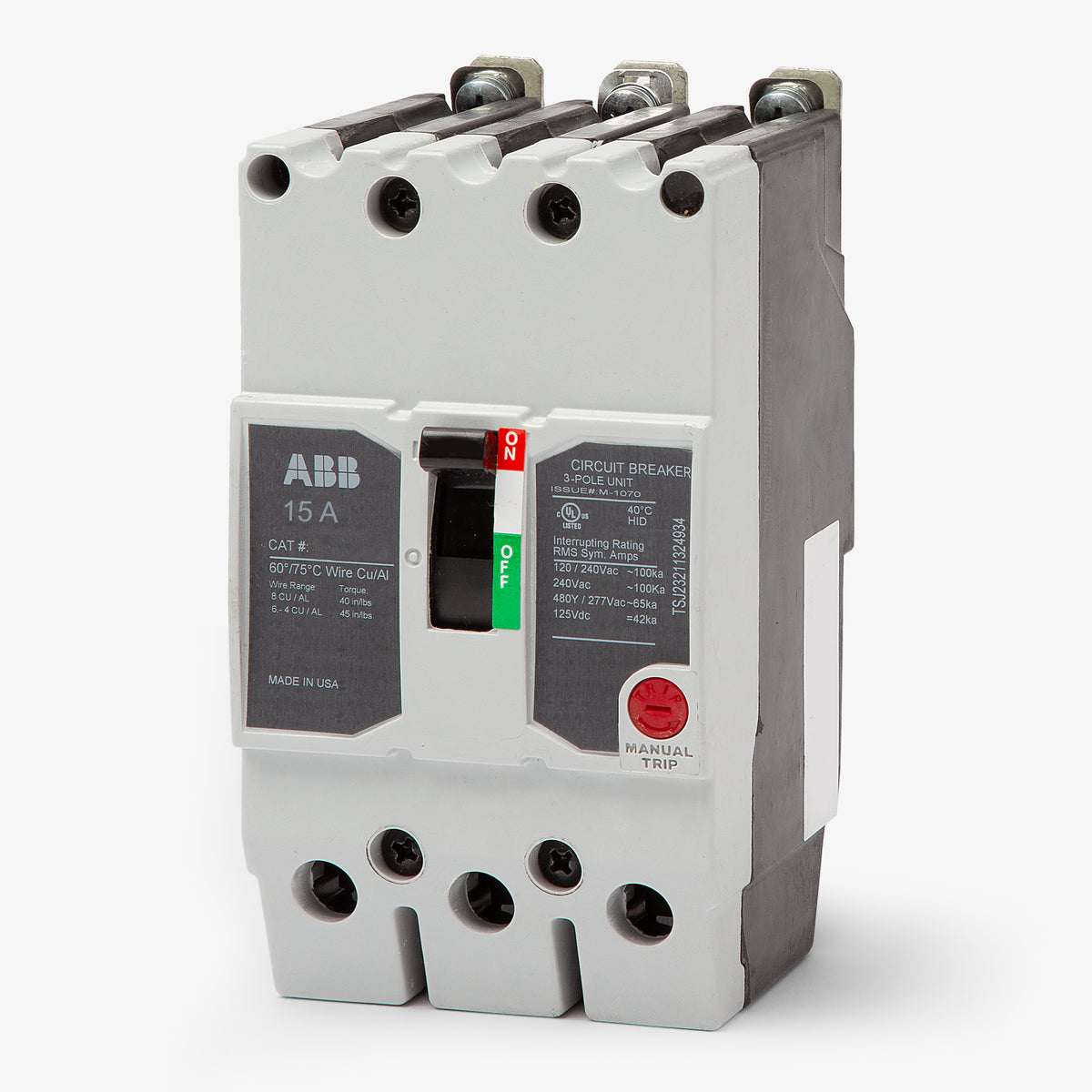

ABB / General Electric TEYL3015B Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
ABB / General Electric
TEYL3015B
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEYL3015B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYL3015B - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEYL3015B - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEYL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | Q-Line |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Tie, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Quantity
ABB / General Electric TEYL3015B - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEYL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | Q-Line |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Tie, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTEYL3030B
30A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
3 Pole Circuit Breaker
Description
Built for demanding commercial environments, this 15A, 3-pole MCCB offers thermal-magnetic trip technology with long-time and instantaneous functions. The TEYL frame design ensures consistent performance across various industrial power systems. Designed for seamless integration, the unit mounts into GE A-Series panelboards. It features a bolt-on configuration and includes load lugs that accommodate 14-10 AWG copper wiring.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | Q-Line |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Tie, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Product FAQs
5 answersCan I install the TEYL3015B breaker in a standard GE residential load center?
No. The TEYL3015B is a bolt-on circuit breaker specifically designed for GE A-Series lighting panels and commercial distribution systems. It is not compatible with PowerMark Gold residential load centers that require plug-in THQL style breakers.
What wire gauges are accepted by the lugs on the TEYL3015B?
The factory load lugs accept 14 to 10 AWG copper conductors or 12 to 10 AWG aluminum conductors. Always ensure the lugs are torqued to the specifications listed on the breaker face or panelboard label when landing these smaller gauge wires.
Are the trip settings adjustable on this breaker?
No. This breaker utilizes a fixed thermal-magnetic trip unit. Both the long-time overload (L) and instantaneous short-circuit (I) protection settings are factory-calibrated and non-adjustable.
Is the TEYL3015B suitable for direct current (DC) systems?
Yes, it carries specific interrupting ratings for DC applications. It is rated to safely interrupt up to 42kAIC at 125VDC and 35kAIC at 250VDC, making it applicable for industrial control panels or battery systems requiring DC branch protection.
What is the difference between GE TEY, TEYD, TEYH, and TEYL circuit breakers?
These models share the same physical footprint and bolt-on mounting hardware for A-Series panelboards, but differ in their short circuit interrupting capacities at 480/277V. The standard TEY is rated at 14kAIC, the TEYD at 25kAIC, the TEYH at 35kAIC, while the TEYL is the highest-rated version at 65kAIC. You can upgrade to a TEYL if higher fault current protection is required, but you cannot substitute a lower-rated breaker unless the available fault current at the installation permits.
