ABB TEYL3040B Circuit Breaker
- 40
- 3 Pole
- Bolt-On
ABB
TEYL3040B
Circuit Breaker
Brand
ABB
SKU
TEYL3040B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB TEYL3040B 3 Pole Circuit Breaker
New
Quantity
Quantity
ABB TEYL3040B 3 Pole Circuit Breaker
New
Quantity
| Brand | ABB |
|---|---|
| Series | TEYL |
| Amperage | 40 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480V |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEYL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Trip-Free Mechanism |
Sold out
Quantity
ABB TEYL3040B 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | ABB |
|---|---|
| Series | TEYL |
| Amperage | 40 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480V |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEYL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Trip-Free Mechanism |
Similar Items
3 Pole Circuit Breaker
ABB / General ElectricTEYL3050B
50A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEYL3030B
30A 3 Pole Molded Case Circuit Breaker
Description

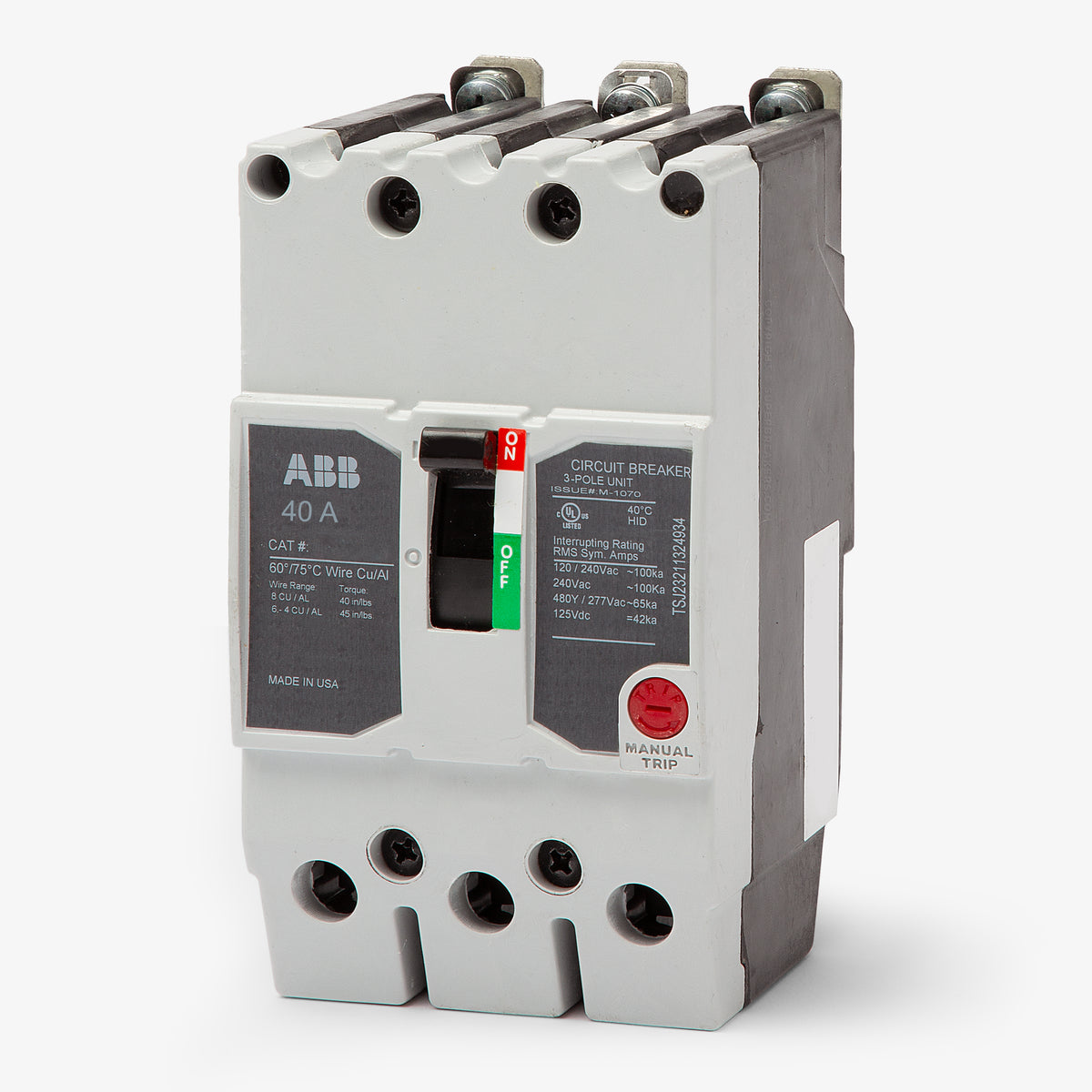

ABB TEYL3040B 3 Pole Circuit Breaker
The ABB TEYL3040B is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 40 Amps and a voltage rating of 480V. It has an interrupting rating of 65kAIC at 480V. The TEYL3040B has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | ABB |
|---|---|
| Series | TEYL |
| Amperage | 40 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 480V |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEYL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Quick-Make/Quick-Break, Common Trip, Trip-Free Mechanism |
Product FAQs
9 answersWhich panelboards accept the TEYL3040B circuit breaker?
The TEYL3040B is specifically designed to bolt into GE A-Series lighting panelboards.
How is the TEYL3040B secured in the panel?

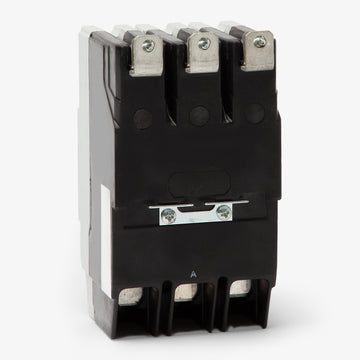

It uses a bolt-on connection. The breaker bolts directly to the internal bus of the A-Series panelboard to ensure a secure, high-capacity electrical connection.
Are GE TEYL3040B and ABB TEYL3040B the same breaker?
Yes. Following ABB's acquisition of GE Industrial Solutions, these breakers are manufactured under the ABB brand. They share the exact same footprint, UL listings, and catalog numbers.
Does the TEYL3040B support direct current (DC) applications?
Yes. In addition to its AC ratings, this breaker is rated for 42 kAIC at 125VDC and 35 kAIC at 250VDC.
Is the TEYL3040B HACR rated?
Yes, this circuit breaker is HACR listed, meaning it is certified for use with heating, air conditioning, and refrigeration equipment.
What wire sizes are compatible with the lugs on this breaker?

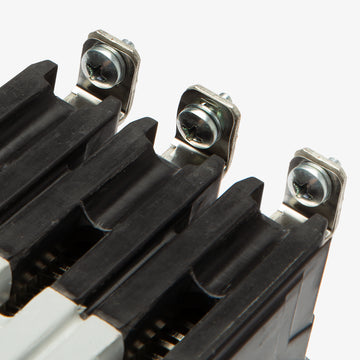

The factory-installed lugs on the TEYL3040B accept 10 AWG to 4 AWG wire and are rated for both copper (Cu) and aluminum (Al) conductors.
Can I use the TEYL3040B outside of an A-Series panelboard?
Yes, but it requires additional hardware. When fitted with the specific 3-pole mounting base accessory, this breaker can be utilized in unit-mount or lug-to-lug installations.
Is this breaker rated for HID lighting systems?
Yes. All TEYL series breakers rated 50 amps and below, including this 40-amp model, are UL listed for High Intensity Discharge (HID) lighting circuits.
How does the trip mechanism in the TEYL3040B operate?
It features a non-interchangeable thermal-magnetic trip unit with long-time and instantaneous (LI) functions. It also utilizes a quick-make, quick-break mechanism with a common trip bar to safely open all three poles simultaneously during a fault.
