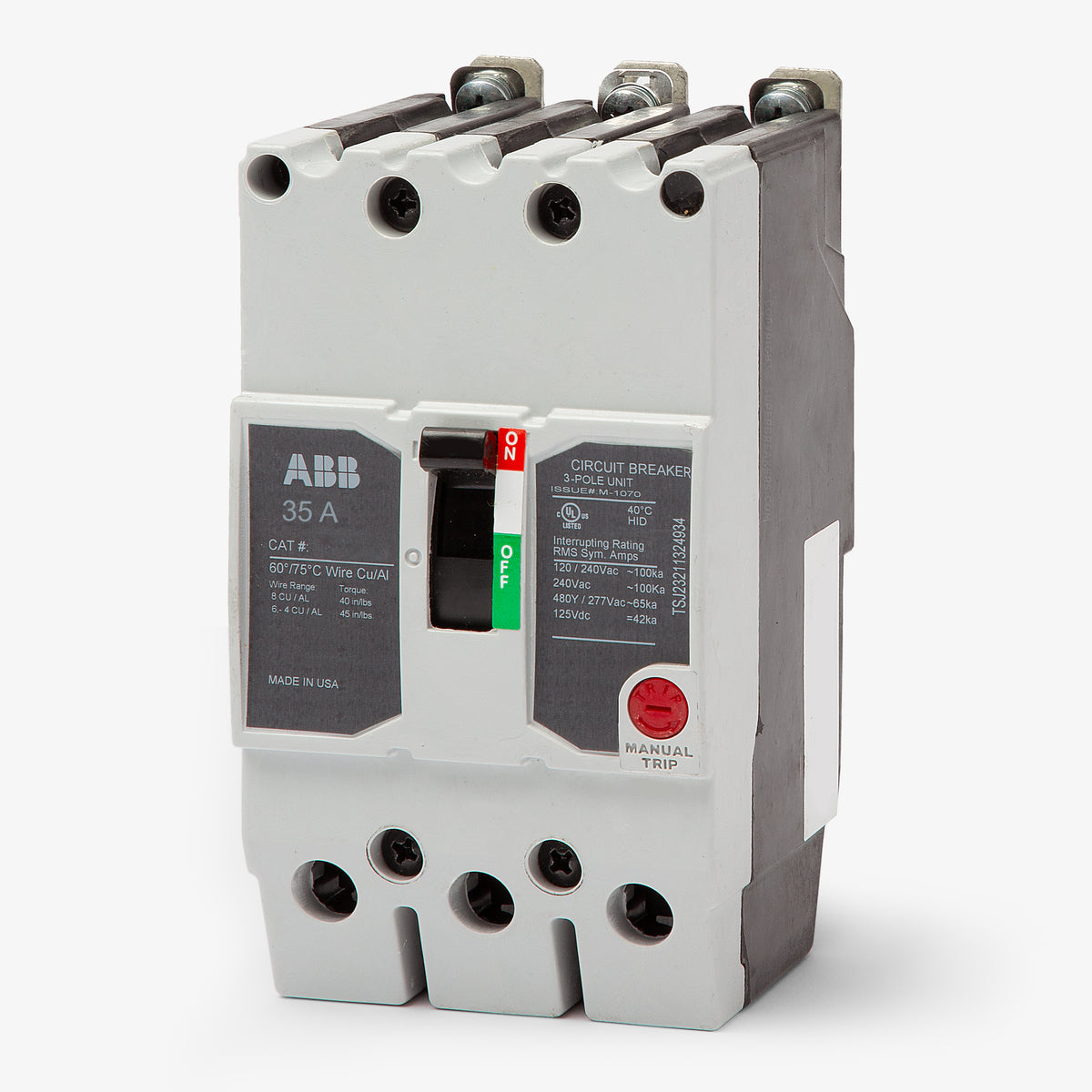

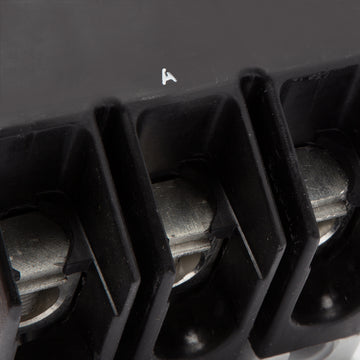

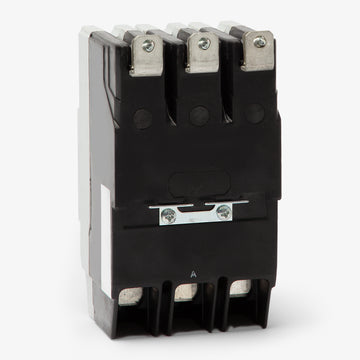

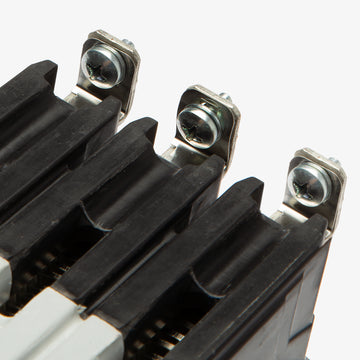

ABB TEYL3035B Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
ABB
TEYL3035B
Circuit Breaker
Brand
ABB
SKU
TEYL3035B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB TEYL3035B 3 Pole Circuit Breaker
New
Quantity
Quantity
ABB TEYL3035B 3 Pole Circuit Breaker
New
Quantity
| Brand | ABB |
|---|---|
| Part Number | TEYL3035B |
| Series | TEYL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Quantity
ABB TEYL3035B 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | ABB |
|---|---|
| Series | TEYL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTEYL3030B
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEYL3045B
45A 3 Pole Molded Case Circuit Breaker

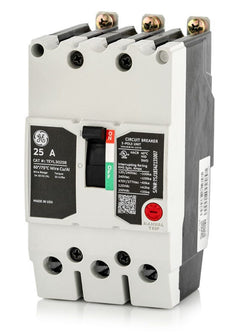

ABB / General ElectricTEYL3025B
25A 3 Pole Molded Case Circuit Breaker
Description
ABB TEYL3035B 3 Pole Circuit Breaker
The ABB TEYL3035B is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 35 Amps and a voltage rating of 480V. It has an interrupting rating of 65kAIC at 480V. The TEYL3035B has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | ABB |
|---|---|
| Part Number | TEYL3035B |
| Series | TEYL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the TEYL3035B?
This breaker is designed for use in GE A-Series panelboards, specifically Type AS bolt-on lighting panels.
What does the L in TEYL signify compared to standard TEY breakers?
The L indicates the highest short-circuit interrupting tier for this frame. The TEYL3035B delivers a 65kA interrupting rating at 480V, whereas standard TEY breakers are rated at 14kA and TEYH models at 35kA.
Can I use the TEYL3035B to replace a lower rated TEY3035B or TEYH3035B?
Yes. The TEYL frame shares the exact same 1-inch per pole spacing and physical dimensions as the TEY and TEYH models. Installing the TEYL upgrades your interrupting capacity to 65kA without requiring extra panel space.
What are the torque specifications for the load lugs on the TEYL3035B?
For the accepted 10-4 AWG wire range, the required terminal torque is 35 in-lbs for 10 AWG, 40 in-lbs for 8 AWG, and 45 in-lbs for 6-4 AWG conductors.
Why might my replacement TEYL3035B be branded as ABB instead of General Electric?
ABB acquired GE Industrial Solutions. Recent manufacturing runs of the TEYL series feature ABB branding. They are exact drop-in replacements with identical form, fit, and electrical specifications as legacy GE units.
Can this breaker be installed independently outside of an A-Series panelboard?
Yes. While it is built as a bolt-on branch breaker, the TEYL family can be used in standalone lug-to-lug installations when fitted with the appropriate three-pole mounting base accessory.
How does the LI trip unit protect the electrical circuit?
The Long-Time (L) function uses a thermal element to protect against sustained overloads, while the Instantaneous (I) function uses a magnetic element to immediately trip the breaker during a severe short circuit.
