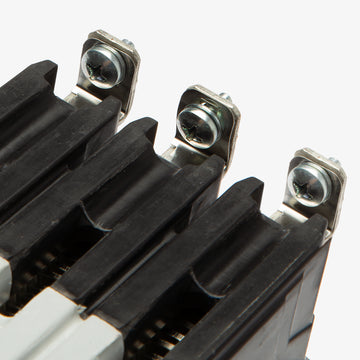

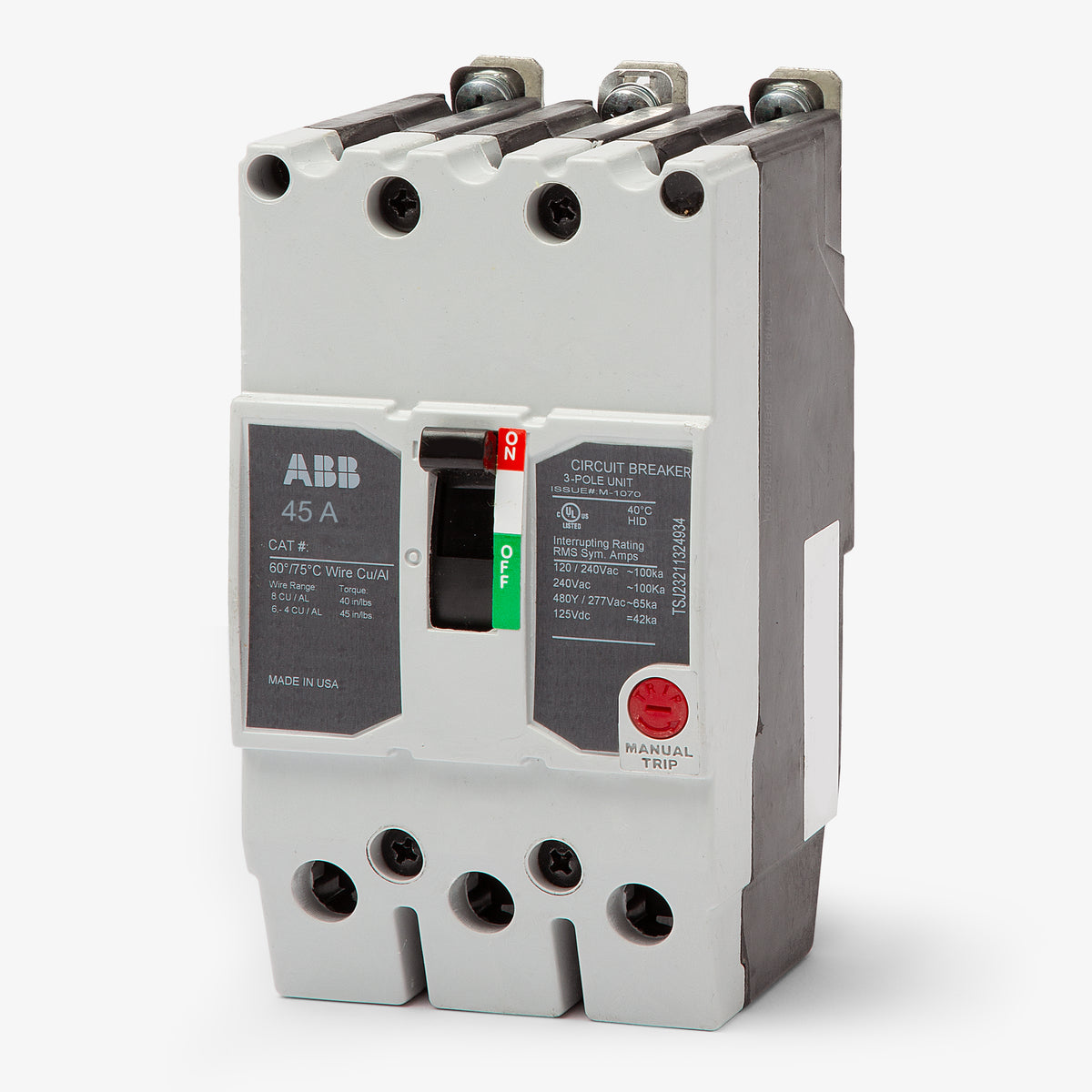

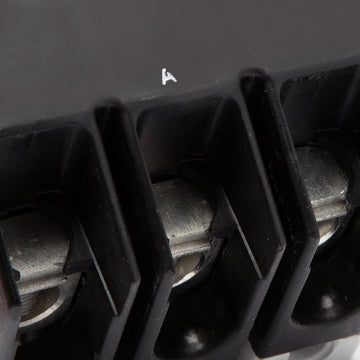

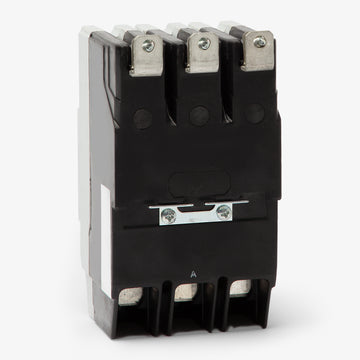

ABB / General Electric TEYL3045B Molded Case Circuit Breaker
- 45A
- 3 Pole
- Bolt-On
ABB / General Electric
TEYL3045B
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEYL3045B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYL3045B - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TEYL3045B - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYL3045B |
| Series | TEYL |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Quick-Make/Quick-Break, Common Trip |
Sold out
Quantity
ABB / General Electric TEYL3045B - 45A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYL3045B |
| Series | TEYL |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Quick-Make/Quick-Break, Common Trip |
Similar Items
3 Pole Circuit Breaker
3 Pole Circuit Breaker
3 Pole Circuit Breaker
Description
Rated at 65 kAIC at 480Y/277VAC, this 45A, 3-pole MCCB delivers exceptional overcurrent protection. The GE TEYL3045B is built for commercial power distribution. Designed for compatibility with GE A-Series panelboards, it utilizes a dependable bolt-on mounting style and accommodates 10-4 AWG conductors. As part of the TEYL series, it features fixed thermal-magnetic trip units. The device is HACR and HID rated, offering versatile performance and a current-limiting design.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYL3045B |
| Series | TEYL |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Quick-Make/Quick-Break, Common Trip |
Product FAQs
8 answersWhat panelboards are compatible with the TEYL3045B?
This circuit breaker is engineered specifically for GE A-Series panelboards. It features a bolt-on mounting configuration and will not mount into standard residential panels.
Can I install the TEYL3045B in a standard GE Q-Line residential load center?
No. Although classified within the broader Q-Line family, this is a commercial-grade bolt-on breaker intended for A-Series lighting and distribution panels. It lacks the plug-on clips required for residential load centers.
What does the L represent in the TEYL3045B part number?
The L designates this breaker as part of the high-interrupting tier within the GE TEY frame family. It achieves a 65kA interrupting rating at 480/277V AC, offering significantly higher fault current protection than the standard TEY and TEYF versions.
Can this breaker be applied in DC power systems?
Yes, it carries direct current ratings alongside its AC ratings. It is rated for 42kA interrupting capacity at 125V DC and 35kA at 250V DC.
What type of wire and gauges will the lugs accept?
The factory-installed mechanical lugs accept conductor sizes ranging from 10 AWG to 4 AWG. They are certified for use with both copper (Cu) and aluminum (Al) wiring.
Are the trip functions on the TEYL3045B adjustable?
No. It is equipped with a thermal-magnetic trip unit that features fixed long-time and fixed instantaneous (LI) settings, meaning the trip thresholds cannot be modified in the field.
Can a standard TEY3045 substitute for the TEYL3045B?
Both breakers share identical physical dimensions and mount in GE A-Series panelboards. However, the standard TEY3045 has a much lower interrupting rating. A substitution is only code-compliant if the available fault current at your panel falls within the lower rating of the standard TEY breaker.
Does this breaker offer GFCI or AFCI safety features?
No, the TEYL3045B provides standard thermal-magnetic protection against overloads and short circuits. It does not include built-in ground fault (GFCI) or arc fault (AFCI) safety circuitry.
