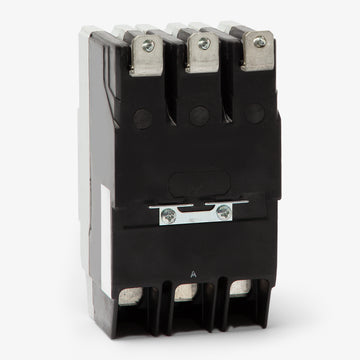

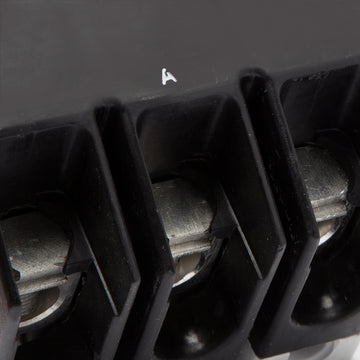

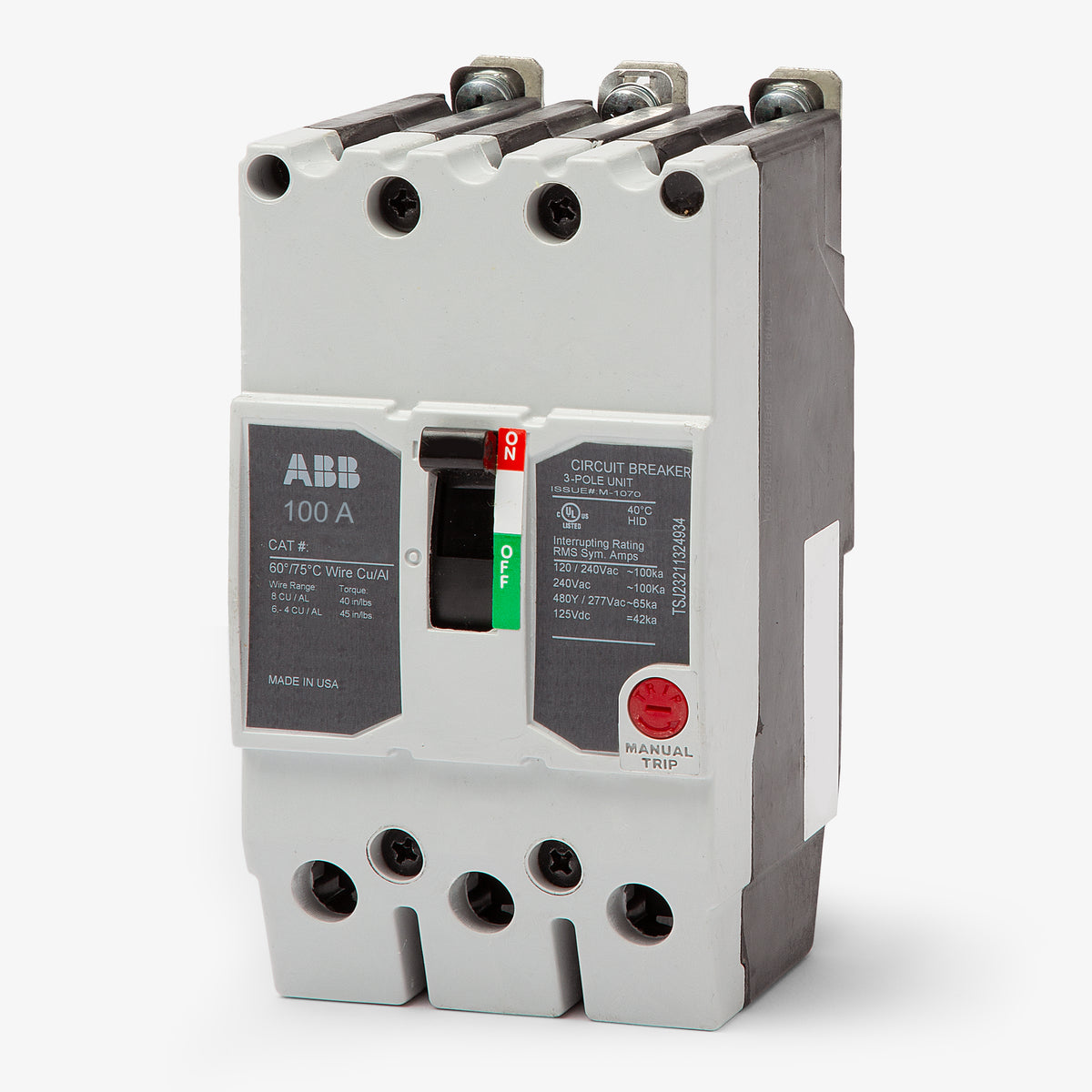

ABB / General Electric TEYL3100B ABB 3 Pole Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
ABB / General Electric
TEYL3100B
ABB 3 Pole Circuit Breaker
Brand
ABB / General Electric
SKU
TEYL3100B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB TEYL3100B 3 Pole Circuit Breaker
New
Quantity
Quantity
ABB TEYL3100B 3 Pole Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEYL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Quantity
ABB TEYL3100B 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEYL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Similar Items
3 Pole Circuit Breaker
3 Pole Circuit Breaker
ABB / General ElectricTEYL3125B
125A 3 Pole Molded Case Circuit Breaker
Description
ABB TEYL3100B 3 Pole Circuit Breaker
The ABB TEYL3100B is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 480V. It has an interrupting rating of 65kAIC at 480V. The TEYL3100B has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEYL |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards are compatible with the TEYL3100B?
It installs in GE A-Series panelboards. As a bolt-on breaker, it secures directly to the panel bus for commercial and industrial applications.
Are the GE TEYL3100B and ABB TEYL3100B the same product?
Yes, they are the exact same component. Because ABB acquired GE Industrial Solutions, TEY-frame breakers may carry either ABB or General Electric branding depending on the manufacturing date.

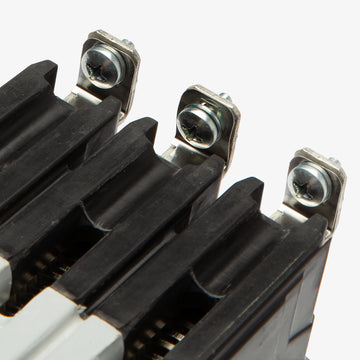

What wire sizes do the TEYL3100B lugs accept?
The factory lugs accommodate wire gauges ranging from 4 AWG to 2/0 AWG. They are rated for use with either copper or aluminum conductors.
Can I use the TEYL3100B in direct current (DC) systems?
Yes, this breaker is rated for DC applications. It provides an interrupting capacity of 42kAIC at 125VDC and 35kAIC at 250VDC.
What is the maximum interrupting capacity for the TEYL3100B on a 240V AC system?
On 240VAC or 120/240VAC systems, this breaker delivers a high interrupting capacity of 100kAIC. For higher voltage 277/480VAC systems, it is rated at 65kAIC.
How does the TEYL3100B mount into the panel?
It utilizes a bolt-on connection type. You must mechanically fasten it to the panelboard bus, which provides the secure contact required in Q-Line commercial setups.
Does the TEYL3100B allow for field adjustments to the trip curve?
No, it features a fixed thermal-magnetic trip unit. The long-time and instantaneous (LI) trip functions are factory set and cannot be modified by the installer.
