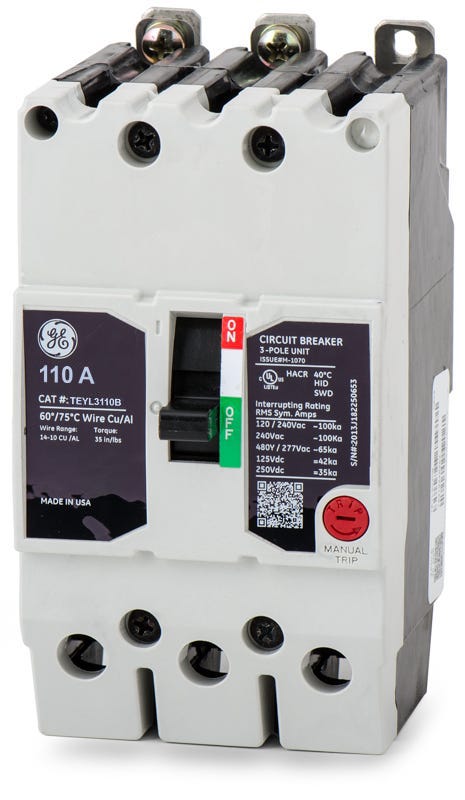

ABB / General Electric TEYL3110B Molded Case Circuit Breaker
- 110A
- 3 Pole
- Bolt-On
ABB / General Electric
TEYL3110B
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEYL3110B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEYL3110B - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTEYL3125B
125A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
3 Pole Circuit Breaker
Description
Built for demanding commercial applications, the GE TEYL3110B is a 3-pole, 110A MCCB. It utilizes a thermal-magnetic trip mechanism to deliver fixed long-time and instantaneous protection. Designed for seamless integration, this unit mounts into GE A-Series panelboards. The bolt-on configuration ensures a secure connection, and the included load lugs accommodate 4 AWG to 2/0 AWG conductors. With a 65kAIC rating at 480Y/277V, it offers excellent fault clearing capabilities.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEYL3110B |
| Series | TEYL |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125VDC, 250VDC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 42kA @ 125VDC, 35kA @ 250VDC, 100kA @ 120/240VAC |
| Frame Type | TEY |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Lugs (Factory Installed) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Common Trip, Non-Interchangeable Trip |
Product FAQs
8 answersWhat panelboards are compatible with the TEYL3110B circuit breaker?
This breaker is designed specifically for bolt-on installation in GE A-Series lighting panelboards (Type AS).
What does the L in the TEYL frame designation indicate?
In the GE TEY breaker family, the L designates the highest short-circuit interrupting tier, providing a 65kA rating at 480Y/277VAC. This is a significant increase over standard TEY (14kA) or TEYF (18kA) breakers.
What wire sizes are supported by the lugs on the TEYL3110B?
The factory-installed mechanical load lugs accept copper or aluminum conductors ranging from 4 AWG to 2/0 AWG.
Why might my TEYL3110B arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. As a result, TEYL series breakers are manufactured to the exact same form, fit, and function but may carry ABB branding, GE branding, or a combination of both.
Can the TEYL3110B be used in DC power applications?
Yes, this thermal-magnetic breaker is rated for DC systems, offering an interrupting capacity of 42kA at 125VDC and 35kA at 250VDC.
How much panel space does the TEYL3110B require?
TEYL series breakers feature a compact 1-inch width per pole design. As a 3-pole breaker, it requires 3 inches of total mounting space in your A-Series panelboard.
Does the TEYL3110B offer selective coordination?
Yes, TEYL circuit breakers are current limiting and provide full instantaneous selectivity. They can be easily coordinated with upstream and downstream GE breakers, such as Record Plus or EntelliGuard series, to restrict outages to the affected circuit.
What does the B at the end of the TEYL3110B catalog number mean?
The B suffix indicates a bolt-on attachment style, which is required for secure mounting to the busbars in GE A-Series panelboards.
