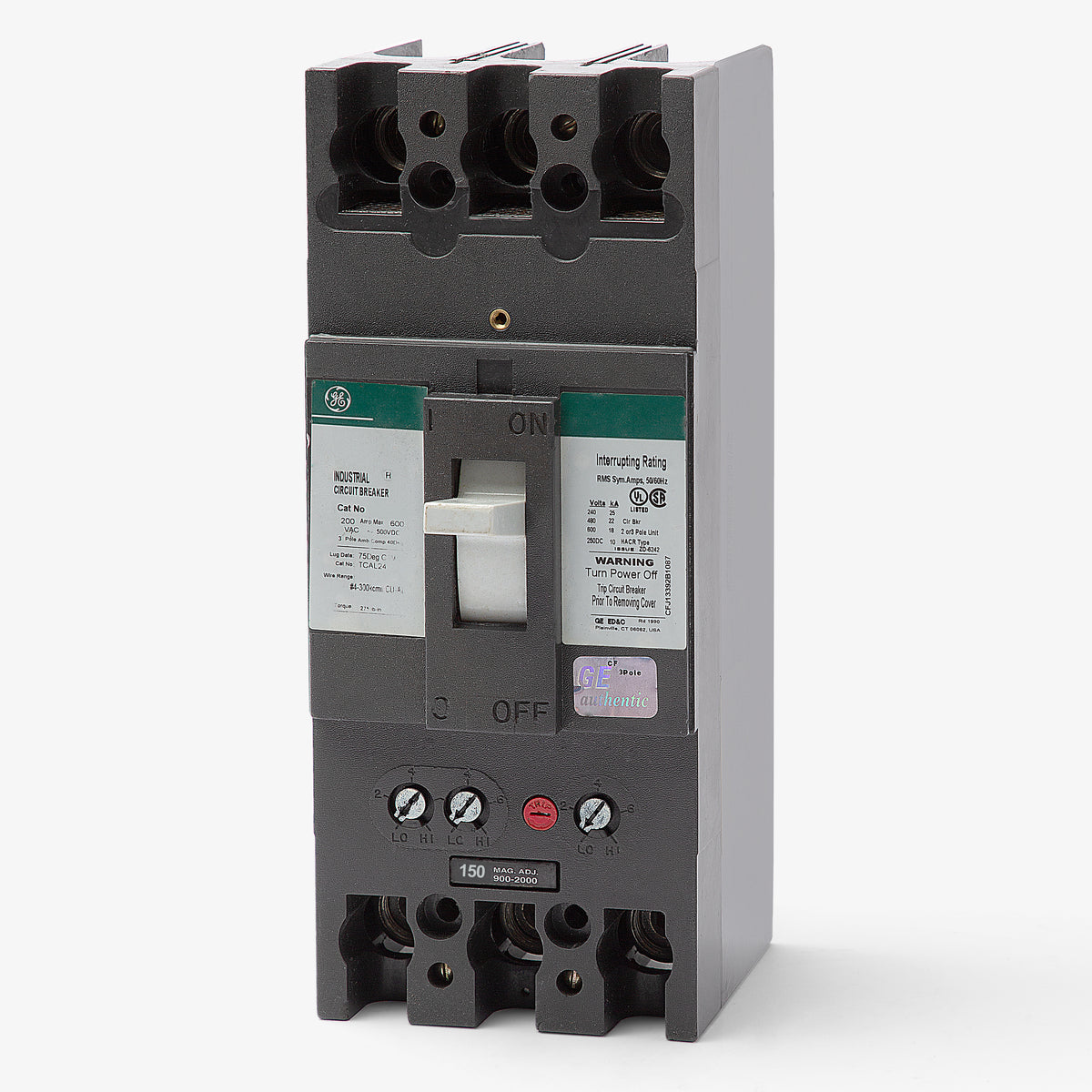

ABB / General Electric TFJ236150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
ABB / General Electric
TFJ236150
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFJ236150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFJ236150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TFJ236150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236150 |
| Series | TFJ |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE J-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Includes Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TFJ236150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236150 |
| Series | TFJ |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE J-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Includes Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTFJ236125
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236110
110A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236200
200A 3 Pole Molded Case Circuit Breaker
Description
A dependable choice for commercial facilities, the GE TFJ236150 is a 3-pole, 150A molded case circuit breaker. This bolt-on MCCB is engineered to install into GE A-Series and legacy J-Line panelboards. It includes load side lugs and replaces older TFK236150 and THFK236150 models. Featuring a 22kAIC rating at 480VAC, the breaker utilizes a non-interchangeable thermal-magnetic trip unit. It is HACR rated and reverse feed capable.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236150 |
| Series | TFJ |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE J-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Includes Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the TFJ236150 circuit breaker?
The TFJ236150 is designed for bolt-on installation in GE A-Series and GE J-Line panelboards. Depending on your specific panelboard interior, a dedicated mounting hardware kit like the AMCB6FJ may be required to secure the breaker to the bus.
Can the TFJ236150 be used in DC electrical systems?
Yes, this breaker is rated for direct current applications. It provides a 10kA interrupting capacity at both 250VDC and 500VDC, making it suitable for specific industrial DC loads.
What wire sizes are accepted by the lugs on the TFJ236150?

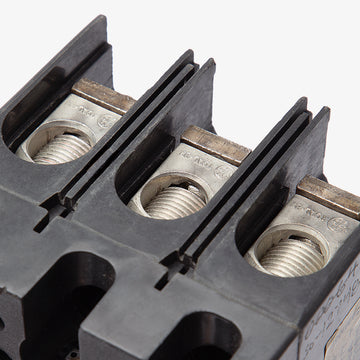

The factory lugs on this breaker accept copper or aluminum (Cu/Al) conductors ranging from 4 AWG up to 300 kcmil. Ensure proper torque specifications are followed during installation to maintain a secure connection.
How does the trip unit function on this TFJ frame breaker?
The TFJ236150 features a thermal-magnetic trip unit with a fixed thermal element for long-time overload protection and an adjustable magnetic element for instantaneous short-circuit protection. This allows electricians to fine-tune the instantaneous trip threshold based on the specific load requirements.
Is the TFJ236150 part of a current production series?
The TFJ frame is a legacy molded case circuit breaker originally manufactured by General Electric. While exact replacements are still sourced to maintain existing A-Series and J-Line panels, ABB's Tmax XT series is often utilized for modern upgrades and retrofits.
