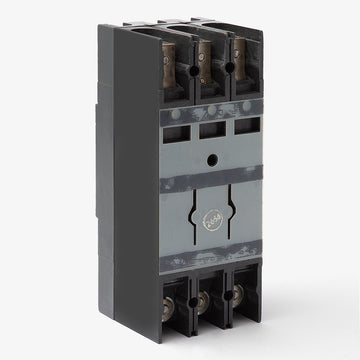

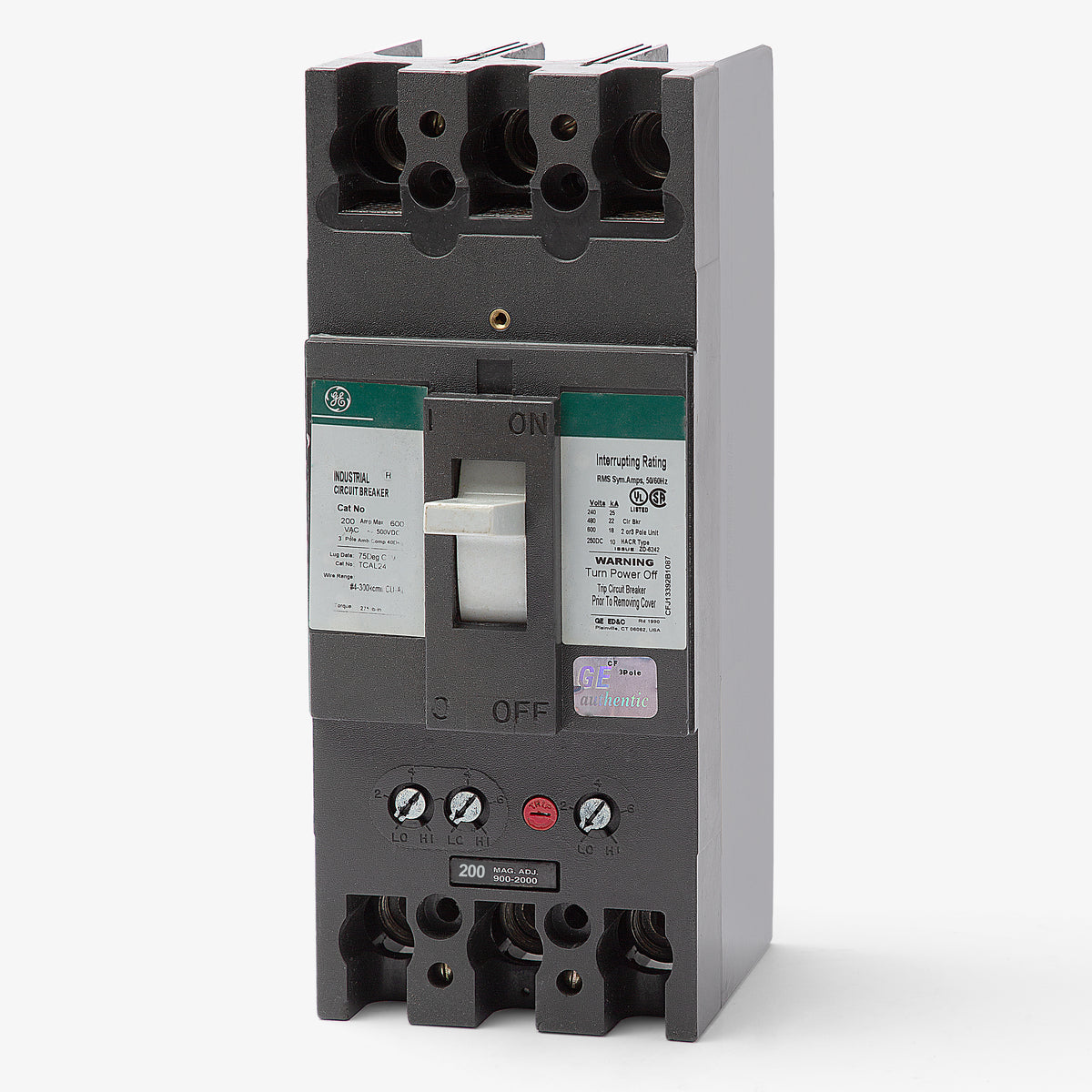

ABB / General Electric TFJ236200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
ABB / General Electric
TFJ236200
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFJ236200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFJ236200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TFJ236200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236200 |
| Series | TFJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TFJ236200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236200-R |
| Series | TFJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTFJ236175
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236150
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236125
125A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial distribution, the TFJ236200 delivers reliable thermal-magnetic protection for industrial facilities. This 3-pole, 200-amp breaker utilizes fixed thermal and adjustable magnetic trip settings to handle demanding electrical loads. It bolts into GE A-Series panelboards, Spectra panelboards, and compatible switchboards. For modern facility upgrades, this legacy F-Frame model transitions to the ABB Tmax XT4 series using an appropriate retrofit kit. It features a HACR rating.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236200-R |
| Series | TFJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhich panelboards are compatible with the TFJ236200 breaker?
This F-frame MCCB bolts directly into GE A-Series panelboards, GE Spectra Series panelboards, and standard GE switchboards.
Is the TFJ236200 branded as ABB or General Electric?
Following the acquisition of GE Industrial Solutions by ABB, this F-frame breaker may arrive with either ABB or GE branding. Both versions are manufactured to the exact same specifications and are fully interchangeable in the field.
Can I adjust the trip settings on the TFJ236200?
The long-time thermal overload setting is fixed at 200 amps. However, the instantaneous magnetic trip function is adjustable, allowing panel builders to coordinate short-circuit protection for specific downstream loads.
What is the difference between the TFJ236200 and TFJ236200WL?

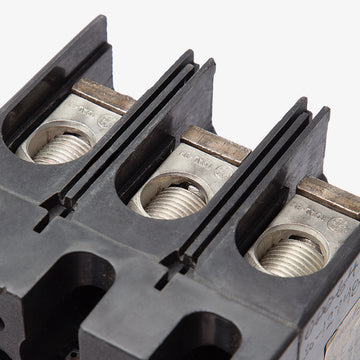

The standard TFJ236200 catalog number comes equipped with load side lugs only. A part number ending in WL, such as TFJ236200WL, indicates that the breaker is supplied with both line and load lugs installed from the factory.
Can the TFJ236200 be installed in DC voltage systems?
Yes, this breaker is rated for ungrounded DC applications. It provides up to 10kA of interrupting capacity on both 250VDC and 500VDC electrical systems.
Is the TFJ236200 suitable for reverse feed applications?
Yes, GE F-frame MCCBs like the TFJ series do not have strict line and load side restrictions and are fully capable of reverse feed operations.
What does the F225 line designation mean for this GE breaker?
The TFJ series is part of the legacy GE F225 line. This means it utilizes a 225-amp maximum frame size, sharing physical dimensions and mounting hardware with other F-frame breakers like the TFK and THFK series.
