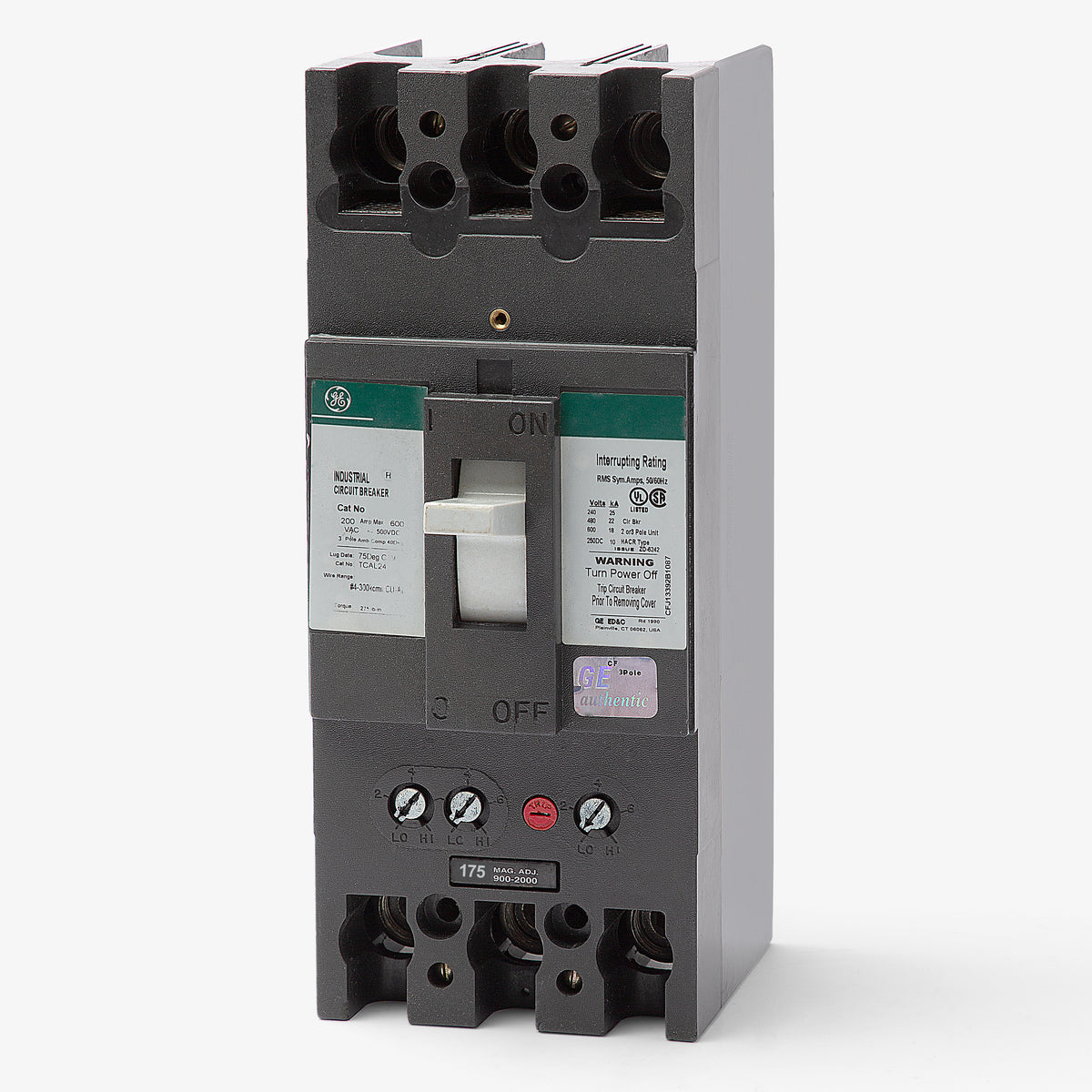

ABB / General Electric TFJ236175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
ABB / General Electric
TFJ236175
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFJ236175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFJ236175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
ABB / General Electric TFJ236175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236175-R |
| Series | TFJ |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Includes Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric TFJ236175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TFJ |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Includes Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTFJ236150
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236225
225A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236125
125A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial applications, the GE TFJ236175 delivers reliable overcurrent protection with a 175A rating. This three-pole, bolt-on MCCB mounts into GE A-Series panelboards, Spectra Series switchboards, and motor control centers. It provides a replacement solution for existing infrastructure or can be upgraded to the Tmax XT series. It features fixed thermal and adjustable magnetic trip functions, reverse feed capability, and a 22kAIC rating at 480V.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236175-R |
| Series | TFJ |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Includes Load Side Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat equipment is compatible with the TFJ236175 breaker?
This F-frame breaker is designed for bolt-on installation in GE A-Series panelboards, Spectra Series panelboards, switchboards, and motor control centers.

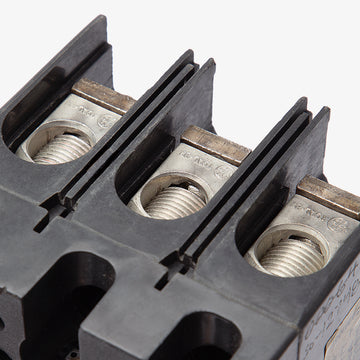

What wire sizes are accepted by the standard lugs on this breaker?
The standard factory lugs accept both copper and aluminum conductors ranging from 4 AWG to 300 kcmil. Ensure proper torque specifications are followed during installation.
How is the trip unit configured on the TFJ236175?
It features a thermal magnetic trip unit with fixed long-time thermal protection and an adjustable instantaneous magnetic trip function, allowing users to fine-tune the short-circuit response.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions. As a result, legacy GE F-frame breakers like the TFJ236175 may arrive with either GE or ABB branding, but they are physically and electrically identical.
Can the TFJ236175 be used in direct current systems?
Yes, this breaker is rated for DC applications up to 500VDC, providing a 10kA interrupting capacity at both 250VDC and 500VDC.
