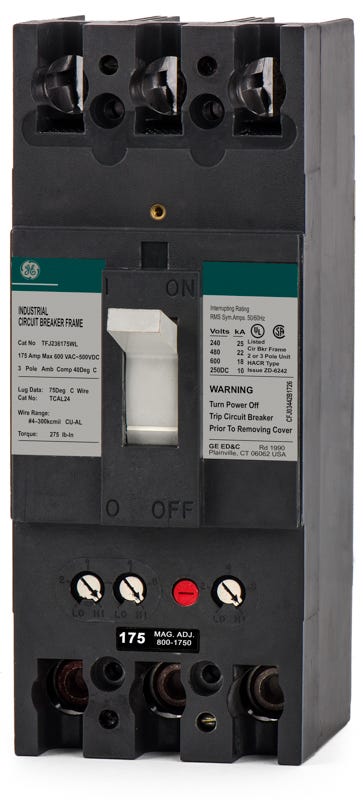

ABB / General Electric TFJ236175WL Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
ABB / General Electric
TFJ236175WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFJ236175WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFJ236175WL - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TFJ236175WL - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236175WL |
| Series | TFJ |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TFJ236175WL - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236175WL-R |
| Series | TFJ |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTFJ236150WL
150A 3 Pole Molded Case Circuit Breaker

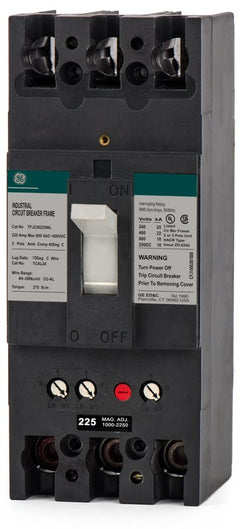

ABB / General ElectricTFJ236225WL
225A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236125WL
125A 3 Pole Molded Case Circuit Breaker
Description
Designed for versatile industrial applications, the GE TFJ236175WL provides robust 175-amp overcurrent protection. This three-pole, unit mount breaker includes factory-installed Cu/Al lugs for straightforward feed-thru wiring. It installs into standalone enclosures and switchboards, serving as a replacement for legacy F-Frame units or upgrading to the Tmax XT4 series. It offers a 22kAIC rating at 480VAC alongside fixed thermal and adjustable magnetic trip functions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236175WL-R |
| Series | TFJ |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TFJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat does the "WL" suffix indicate on the TFJ236175WL catalog number?
The "WL" suffix designates that the circuit breaker includes factory-installed line and load lugs for copper or aluminum wire. It is functionally identical to the base TFJ236175 catalog number.
What equipment is compatible with the TFJ236175WL circuit breaker?
This F225 line, unit-mount breaker is designed for installation in GE A-Series panelboards, Spectra Series switchboards, motor control centers, and standalone enclosures.
Can the trip unit on the TFJ236175WL be swapped or upgraded?
No, the TFJ frame utilizes a factory-assembled, non-interchangeable thermal-magnetic trip unit. Applications requiring an interchangeable trip unit must use the TFK or THFK frame styles instead.
Is the TFJ236175WL approved for reverse feed wiring?
Yes, this molded case circuit breaker is rated for reverse feed applications, allowing line power to be connected to either the top or bottom terminals.
Can this breaker be used to protect HVAC equipment?
Yes, the TFJ236175WL is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment.
How is the trip unit adjusted on the TFJ236175WL?
The thermal protection for overload conditions is fixed at 175 amps. The magnetic protection for short-circuit conditions is adjustable, allowing electricians to fine-tune the instantaneous trip threshold based on the application.
