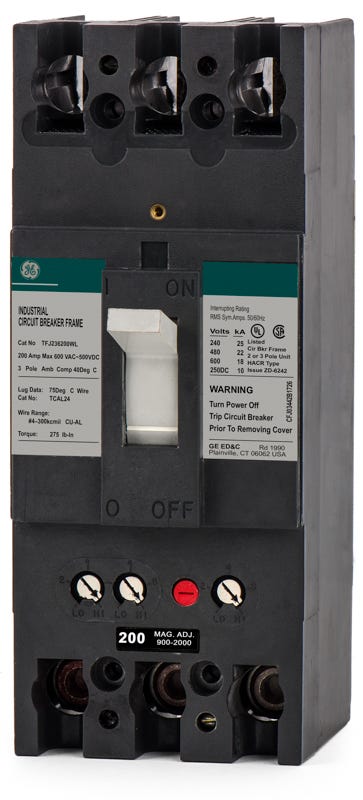

ABB / General Electric TFJ236200WL Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
ABB / General Electric
TFJ236200WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFJ236200WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFJ236200WL - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TFJ236200WL - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236200WL |
| Series | TFJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TFJ236200WL - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236200WL-R |
| Series | TFJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTFJ236175WL
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236250WL
250A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236150WL
150A 3 Pole Molded Case Circuit Breaker
Description
Engineered for demanding commercial and industrial applications, the GE TFJ236200WL provides robust overcurrent protection. This 3-pole, 200A breaker operates at up to 600VAC and utilizes a fixed thermal, adjustable magnetic trip unit to safeguard critical electrical infrastructure. Designed for seamless integration, it mounts into GE A-Series and Spectra Series panelboards, as well as compatible switchboards.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236200WL-R |
| Series | TFJ |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
4 answersWhat does the "WL" suffix indicate on the TFJ236200WL catalog number?
The WL suffix designates that the breaker comes equipped with factory-installed Cu/Al lugs on both the line and load sides. TFJ breakers ordered without this suffix typically ship without line-side lugs.
How does the TFJ236200WL mount into an electrical panel?
This is a unit-mount breaker, meaning it bolts directly to the chassis or bus of compatible GE A-Series panelboards, Spectra Series panelboards, and switchboards rather than using a plug-on connection.
Why is this circuit breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Because of this transition, the TFJ236200WL may feature either the GE or ABB logo depending on its date of manufacture, but the electrical specifications and physical footprint are identical.
Is the trip unit on the TFJ236200WL interchangeable?
No. The TFJ frame designation indicates it has a factory-sealed, non-interchangeable thermal-magnetic trip unit. If your application requires an interchangeable trip unit, you would need to source a GE TFK or THFK frame breaker instead.
