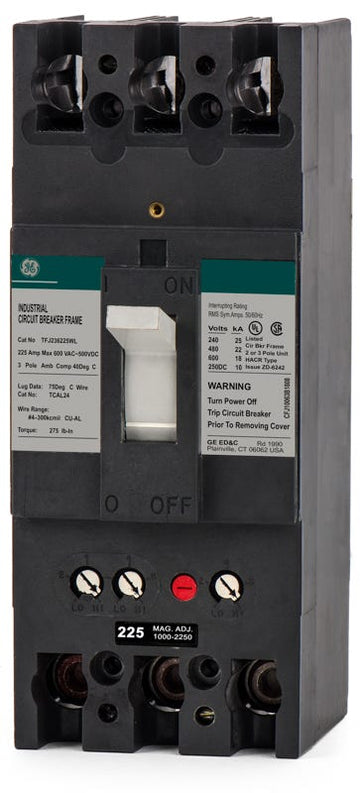

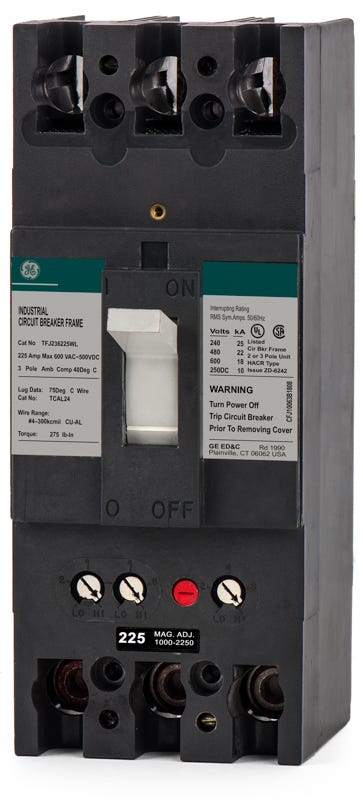

ABB / General Electric TFJ236225WL Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
ABB / General Electric
TFJ236225WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFJ236225WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFJ236225WL - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TFJ236225WL - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236225WL |
| Series | TFJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TFJ236225WL - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236225WL-R |
| Series | TFJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTFJ236200WL
200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236175WL
175A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFJ236150WL
150A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial switchgear, the GE TFJ236225WL is a 225A, 3-pole unit mount molded case circuit breaker. The "WL" suffix indicates factory-installed line and load lugs, ready for 4 AWG to 300 kcmil wiring. This F-Frame breaker mounts securely into GE Spectra Series panelboards, motor control centers, and standalone enclosures. It serves as a reliable replacement for legacy installations. Delivering 25kAIC at 240V, it provides fixed thermal and adjustable magnetic (LI) protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFJ236225WL-R |
| Series | TFJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat does the "WL" suffix mean in the TFJ236225WL catalog number?
The "WL" suffix indicates that the circuit breaker comes factory-equipped with both line and load-side lugs for wire termination.
What is the magnetic trip adjustment range for the 225A TFJ breaker?
The instantaneous magnetic trip on the TFJ236225WL can be adjusted between 1000A on the low setting and 2250A on the high setting.
Is the GE TFJ236225WL suitable for reverse feed applications?
Yes. Because the TFJ frame features a non-interchangeable thermal-magnetic trip unit, it is fully rated and suitable for reverse feed installations.
Which specific lug kit is standard on the TFJ236225WL?
This breaker includes TCAL24 lugs on both the line and load sides, which are rated to accept 4 AWG to 300 kcmil copper or aluminum conductors.
Can I swap the trip unit on the TFJ236225WL to change the amperage?
No, the TFJ series features a non-interchangeable trip unit. If your application requires an interchangeable trip unit within the GE F225 line, you must use a TFK or THFK frame breaker instead.
Is the TFJ236225WL rated for HVAC applications?
Yes, this breaker carries an HACR rating, meaning it is approved for use with commercial heating, air conditioning, and refrigeration equipment.
