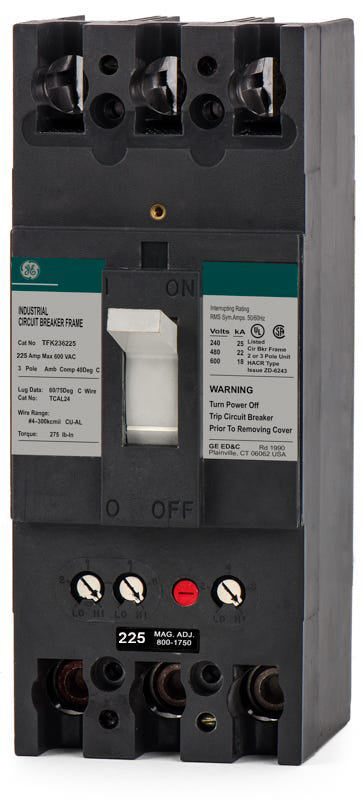

ABB / General Electric TFK236225 Molded Case Circuit Breaker
- 225A
- 3 Pole
- Bolt-On
ABB / General Electric
TFK236225
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TFK236225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TFK236225 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTFK236150
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFK236100
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTFK236070
70A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial use, this 225A, 3-pole molded case circuit breaker operates across 240V, 480V, and 600VAC systems. It utilizes thermal magnetic trip technology to safeguard critical infrastructure. Designed for bolt-on installation, it fits perfectly into GE A-Series panels, Spectra switchboards, and MCCs. Facilities looking to modernize can replace this unit with the Tmax XT4 series via a retrofit kit. The breaker includes an interchangeable trip unit and carries a HACR rating.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TFK236225 |
| Series | TFK |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | TFK |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit |
Product FAQs
8 answersWhat types of electrical equipment are compatible with the TFK236225 circuit breaker?
The TFK236225 is a legacy F-frame breaker engineered specifically for bolt-on integration into GE A-Series panelboards, Spectra Series switchboards, and GE motor control centers. It is commonly used to maintain or expand existing General Electric distribution systems.
What are the wire size and torque specifications for the lugs on the TFK236225?
The standard lugs accept 4 AWG to 300 kcmil copper or aluminum conductors. When using the compatible TCAL26 aluminum terminal lug kit, the recommended tightening torque is 275 lb-in. Always verify torque requirements on the physical breaker label before terminating.
Is the GE TFK236225 still in active production, or is there a modern replacement?
The TFK frame is a legacy General Electric design. For facilities looking to modernize their switchgear, ABB offers the Tmax XT4 series as a direct upgrade path, which can be installed using a dedicated retrofit kit.
How does the trip unit function on the TFK236225?
This breaker utilizes a thermal magnetic trip unit with a fixed thermal element for the 225A continuous rating and an adjustable magnetic element. The adjustable instantaneous trip allows electricians to coordinate the breaker with downstream loads or account for motor inrush currents.
Does the TFK236225 provide ground fault or equipment protection?
No, this model provides standard long-time and instantaneous (LI) overcurrent and short-circuit protection. It does not feature integral ground fault sensing (GFPE) or arc fault protection.
Can the TFK236225 be utilized in direct current (DC) systems?
Yes, in addition to its AC ratings, this breaker is rated for 250VDC with a 10kA interrupting capacity. This makes it suitable for specific industrial DC applications, provided the system voltage does not exceed 250V.
Is the TFK236225 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment that requires a 225A overcurrent protection device.
Does the TFK236225 feature an interchangeable trip unit?
Yes, this breaker is designed with an interchangeable trip unit. This allows panel builders to swap the trip mechanism without replacing the entire breaker frame if load requirements change in the future.
