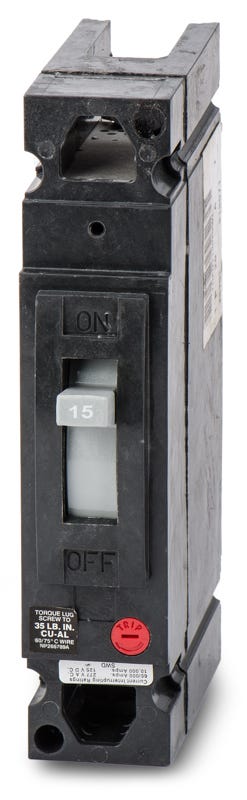

ABB / General Electric THED113015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
ABB / General Electric
THED113015
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED113015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED113015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THED113015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED113015 |
| Series | THED |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 277VAC, 20kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Lighting Panels |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Line Lugs (Suffix WL) |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Quantity
ABB / General Electric THED113015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED113015-R |
| Series | THED |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 277VAC, 20kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Lighting Panels |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Line Lugs (Suffix WL) |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Similar Items
ABB / General ElectricTHED113030
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124015
15A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136015
15A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial lighting and industrial power distribution, this 15A E-Frame breaker provides reliable thermal-magnetic protection. The single-pole unit features a high interrupting capacity of 65kAIC at 277VAC, making it ideal for demanding environments. The bolt-on design installs securely into GE A-Series panelboards and lighting panels. It serves as a direct upgrade for standard TED113015 models. This HACR and SWD rated device includes load lugs for immediate deployment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED113015 |
| Series | THED |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 277VAC, 20kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Lighting Panels |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Line Lugs (Suffix WL) |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
5 answersWhat panelboards are compatible with the THED113015 circuit breaker?
This E-frame breaker is designed for bolt-on installation in GE A-Series panelboards and GE lighting panels.
What wire sizes and materials are accepted by the lugs on this breaker?
The factory-installed lugs accept 14 to 3 AWG copper wire or 12 to 1 AWG aluminum wire.
Can the THED113015 be used in direct current (DC) applications?
Yes, this breaker is rated for use in DC systems up to 125VDC with an interrupting capacity of 20kAIC.
Are the trip settings on this breaker adjustable?
No, this thermal-magnetic breaker features fixed long-time and fixed instantaneous trip functions that cannot be adjusted in the field.
What is the difference between the THED113015 and a standard TED breaker?
The THED series belongs to the GE E-frame family and shares the same physical dimensions as standard TED breakers, but it provides a higher interrupting rating of 65kAIC at 277VAC.
