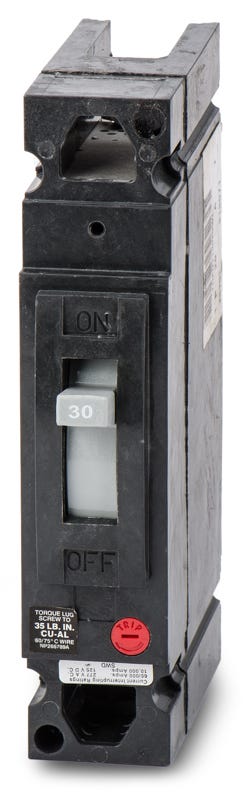

ABB / General Electric THED113030 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
ABB / General Electric
THED113030
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED113030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED113030 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THED113030 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED113030 |
| Series | THED |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 277VAC, 20kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Lighting Panels |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Line Lugs (Suffix WL) |
|---|---|
| Accessories | Load Side Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Sold out
Quantity
ABB / General Electric THED113030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED113030-R |
| Series | THED |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 277VAC, 20kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Lighting Panels |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Line Lugs (Suffix WL) |
|---|---|
| Accessories | Load Side Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Similar Items
ABB / General ElectricTHED113015
15A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124030
30A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136030
30A 3 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty 277V applications, the GE THED113030 is a 1-pole, 30A bolt-on molded case circuit breaker. It delivers consistent thermal-magnetic protection for commercial facilities requiring robust short-circuit defense. It integrates seamlessly into GE A-Series panelboards and lighting panels. This E150-frame unit is an exact, upgraded replacement for the discontinued TED113030 breaker.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED113030 |
| Series | THED |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 277VAC, 20kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Lighting Panels |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Line Lugs (Suffix WL) |
|---|---|
| Accessories | Load Side Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
7 answersWhat panelboards are compatible with the THED113030 circuit breaker?
The THED113030 is designed for use in GE A-Series panelboards and GE lighting panels.
What is the difference between the GE TED113030 and THED113030?
Both are 1-pole, 30A, 277VAC breakers in the E150 frame family, but they have different interrupting ratings. The TED113030 is a standard-tier breaker, while the THED113030 is a high-interrupting capacity version rated at 65kAIC at 277VAC.
What wire sizes are accepted by the lugs on the THED113030?
The lugs on this breaker accept 14-3 AWG copper (Cu) wire or 12-1 AWG aluminum (Al) wire.
Can the THED113030 be used in DC applications?
Yes, this breaker is rated for DC applications and provides a 20kA interrupting rating at 125VDC.
How does the THED113030 mount into the panelboard?
This breaker features a bolt-on connection type, meaning it bolts directly to the busbar in compatible GE panelboards.
What type of trip unit does the THED113030 use?
It uses a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) trip functions.
Is the THED113030 suitable for reverse feed applications?
Yes, GE TEB, TED, and THED series molded case circuit breakers are suitable for reverse feed installations.
