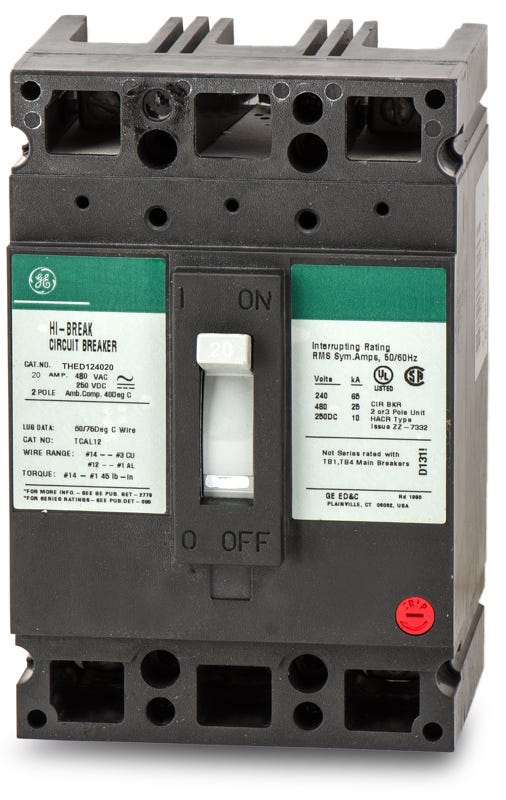

ABB / General Electric THED124020 Molded Case Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
ABB / General Electric
THED124020
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED124020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED124020 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THED124020 - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124020 |
| Series | THED |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, 2-Pole in 3-Pole Housing, High Interrupting Capacity |
Quantity
ABB / General Electric THED124020 - 20A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124020-R |
| Series | THED |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, 2-Pole in 3-Pole Housing, High Interrupting Capacity |
Similar Items
ABB / General ElectricTHED124015
15A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124030
30A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124040
40A 2 Pole Molded Case Circuit Breaker
Description
Designed for commercial facilities, the GE THED124020 is a 2-pole, 20A MCCB from the E150 frame series. It utilizes fixed thermal-magnetic trip technology to deliver precise long-time and instantaneous (LI) protection. This bolt-on breaker mounts securely into GE A-Series and Spectra Series panelboards. It serves as a high-interrupting upgrade for standard TED124020 breakers, accepting 14-3 AWG copper wiring. Rated for 25kA at 480V, it safely isolates severe electrical faults.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124020 |
| Series | THED |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, 2-Pole in 3-Pole Housing, High Interrupting Capacity |
Product FAQs
5 answersWhat panelboards are compatible with the THED124020 circuit breaker?
This bolt-on breaker is designed for installation in GE A-Series and GE Spectra Series panelboards.
Can the THED124020 be used in DC power systems?
Yes, in addition to its AC ratings, this breaker is rated for 250VDC applications with a 10kAIC interrupting capacity.
Are the lugs on the THED124020 rated for aluminum conductors?
Yes, the factory lugs accept both copper and aluminum wire. The supported wire range is 12 to 1 AWG for aluminum and 14 to 3 AWG for copper.
What is the difference between GE TED and THED circuit breakers?
Both belong to the GE E-Frame family and share the same physical dimensions. THED breakers are the high-interrupting tier, offering higher fault current ratings than standard TED breakers.
Are the trip settings on the THED124020 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are factory set and non-adjustable.
