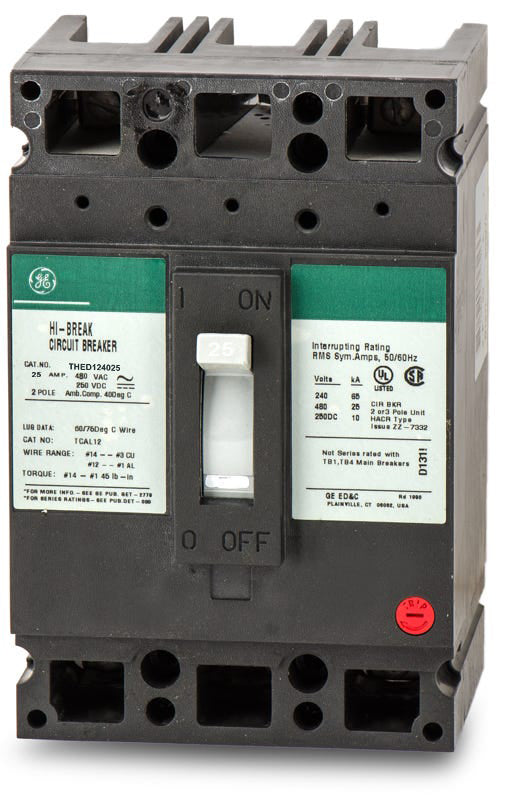

ABB / General Electric THED124025 Molded Case Circuit Breaker
- 25A
- 2 Pole
- Bolt-On
ABB / General Electric
THED124025
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED124025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED124025 - 25A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHED124020
20A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124015
15A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124040
40A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, this 2-pole, 25A molded case circuit breaker delivers reliable thermal-magnetic protection. The GE THED124025 handles branch and feeder circuits with precision. This bolt-on MCCB mounts into GE A-Series and Spectra Series panelboards. It serves as a direct, high-interrupting replacement for the standard TED124025 breaker. Rated for 25kAIC at 480VAC, this E-Frame unit features fixed long-time and instantaneous trip functions.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124025 |
| Series | THED |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersCan the THED124025 replace a standard TED124025 circuit breaker?
Yes. The THED124025 shares the exact physical dimensions of the E-150 frame but provides a higher interrupting capacity of 25kAIC at 480VAC. It serves as a direct, high-interrupting drop-in replacement for the TED124025.
Is the GE THED124025 suitable for reverse feed installations?
Yes. All GE TEB, TED, and THED molded case circuit breakers are designed to be suitable for reverse feed applications, allowing flexibility when routing line and load connections.
Does the THED124025 carry an HACR rating?
Yes. This thermal-magnetic breaker is HACR rated, making it approved for branch circuit protection in commercial heating, air conditioning, and refrigeration equipment.
Which GE panelboards are compatible with the THED124025?
This E-150 frame breaker is designed for bolt-on installation in GE A-Series and Spectra Series panelboards. It is commonly utilized for branch and feeder circuit protection within these commercial distribution panels.
Is the THED124025 rated for direct current (DC) applications?
Yes. While primarily used in AC distribution, this breaker is also rated for 250VDC systems with a 10kAIC interrupting capacity, making it suitable for industrial DC control and power circuits.
