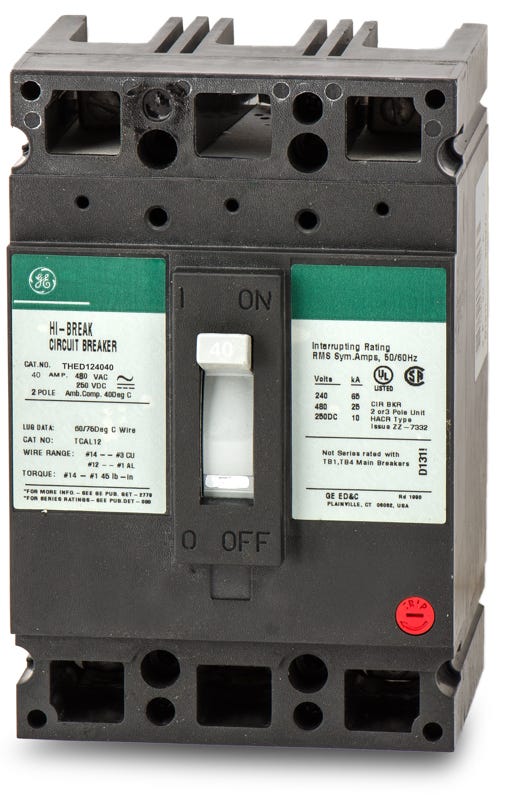

ABB / General Electric THED124040 Molded Case Circuit Breaker
- 40A
- 2 Pole
- Bolt-On
ABB / General Electric
THED124040
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED124040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED124040 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THED124040 - 40A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124040 |
| Series | THED |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 1 AWG (Al), 3 AWG (Cu) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, HID Rated |
Quantity
ABB / General Electric THED124040 - 40A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124040-R |
| Series | THED |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 1 AWG (Al), 3 AWG (Cu) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, HID Rated |
Similar Items
ABB / General ElectricTHED124030
30A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124025
25A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124060
60A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the THED124040 provides robust thermal-magnetic trip functions in a compact E-frame footprint. This 40-amp, two-pole molded case circuit breaker is designed to mount into GE A-Series and Spectra Series panelboards. Rated for 65 kAIC at 240VAC and 25 kAIC at 480VAC, it offers high interrupting capacity for demanding environments. It serves as a direct, higher-rated replacement for the older TED124040 model.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124040 |
| Series | THED |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 1 AWG (Al), 3 AWG (Cu) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, HID Rated |
Product FAQs
9 answersWhat panelboards are compatible with the THED124040?
The THED124040 is designed for use in GE A-Series and Spectra Series panelboards. It mounts directly to the bus using a bolt-on connection.
What are the acceptable wire sizes and materials for the THED124040 terminals?
The factory-installed lugs accommodate 14 to 3 AWG copper conductors or 12 to 1 AWG aluminum conductors. Ensure proper torque specifications are followed during installation.
Can the THED124040 replace an older TED124040 breaker?
Yes, the THED124040 serves as a direct, higher-rated replacement for the older TED124040 model. It shares the exact same E-frame footprint and bolt-on mounting but offers a higher interrupting capacity.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this E-frame breaker may be branded as either ABB or GE, but the physical dimensions, fit, and technical specifications remain identical.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides both Long-Time (L) and Instantaneous (I) protection. The long-time function protects against sustained overloads, while the instantaneous function trips the breaker immediately during a short circuit.
Is the THED124040 suitable for reverse feeding?
Yes, this breaker is rated for reverse feed applications. This allows it to be back-fed in a panelboard, which is often required when used as a main breaker or in specific generator and solar setups.
Is this breaker HACR rated?
Yes, the THED124040 is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific designation for safe operation.
Can this breaker be used in DC applications?
Yes, in addition to its standard AC ratings, this breaker is rated for up to 250VDC with a 10kA interrupting capacity, making it suitable for specific industrial DC control panels.
What frame size is the THED124040?
This breaker is part of the GE E-150 Line and utilizes the TED frame, which is a compact molded case design commonly used in commercial and industrial distribution.
