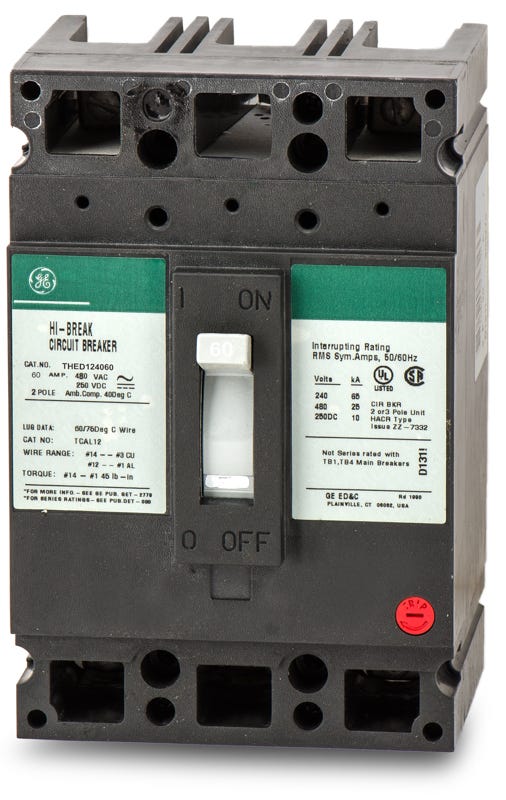

ABB / General Electric THED124060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
ABB / General Electric
THED124060
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED124060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED124060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THED124060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124060 |
| Series | THED |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Line Lugs |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | UL 489, CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, 2-Pole in 3-Pole Housing, High Interrupting Capacity |
Quantity
ABB / General Electric THED124060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124060-R |
| Series | THED |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Line Lugs |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | UL 489, CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, 2-Pole in 3-Pole Housing, High Interrupting Capacity |
Similar Items
ABB / General ElectricTHED124050
50A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124040
40A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124030
30A 2 Pole Molded Case Circuit Breaker
Description
A reliable solution for commercial facilities, the GE THED124060 is a 60A, 2-pole molded case circuit breaker utilizing fixed thermal-magnetic trip elements to safeguard branch circuits. Designed for bolt-on installation, this E-Frame breaker fits into GE A-Series and Spectra Series panelboards. It is an ideal upgrade for standard-interrupt TED124060 breakers. With a high interrupting capacity of 65kAIC at 240VAC, it handles severe faults. The unit is HACR rated with a trip-free mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED124060 |
| Series | THED |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Line Lugs |
|---|---|
| Accessories | Load Lugs (TCAL12) |
| Standards | UL 489, CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, 2-Pole in 3-Pole Housing, High Interrupting Capacity |
Product FAQs
7 answersWhat is the difference between the GE TED124060 and the THED124060?
The THED124060 is the high-interrupting version of the standard TED124060. Both share the same E150 frame and bolt-on mounting dimensions, but the THED model offers a higher interrupting capacity of 25kAIC at 480VAC and 65kAIC at 240VAC. It serves as a direct drop-in upgrade when available fault current exceeds the standard TED ratings.
Which panelboards are compatible with the THED124060 circuit breaker?
This bolt-on E150 frame breaker is designed for installation in GE A-Series and GE Spectra Series panelboards. It requires the appropriate bolt-on chassis hardware for secure mounting within these specific distribution panels.
Can the THED124060 be used in direct current applications?
Yes, this thermal-magnetic breaker is rated for DC use. It provides an interrupting capacity of 10kAIC at 250VDC, making it suitable for specific industrial control or battery backup circuits requiring DC overcurrent protection.
Does the THED124060 mount to a standard DIN rail?
No, this is a bolt-on molded case circuit breaker. It is engineered to bolt directly to the buswork of compatible GE panelboards and cannot be mounted on a DIN rail.
What does the H in the THED prefix indicate?
In GE nomenclature, the H designates a high-interrupting capacity variant of the standard TED frame. This indicates the breaker can safely clear higher fault currents, which is often required near service entrances or downstream of large transformers.
What type of terminals are included on the THED124060?
This breaker comes equipped with mechanical lugs designed to accept bare wire. The lugs are rated for both copper and aluminum conductors, accommodating 14 to 3 AWG copper or 12 to 1 AWG aluminum wire.
Does the THED124060 provide ground fault or arc fault protection?
No, this breaker features standard thermal-magnetic trip elements with long-time and instantaneous functions. It provides overload and short circuit protection but does not include ground fault (GFCI) or arc fault (AFCI) circuitry.
