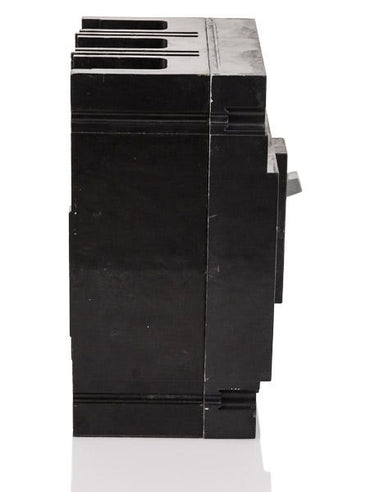

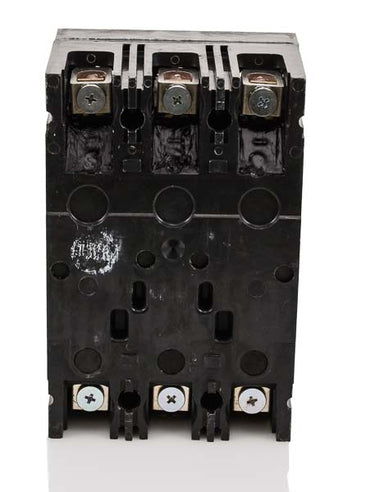

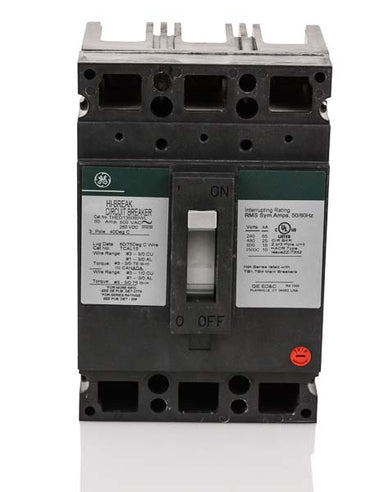

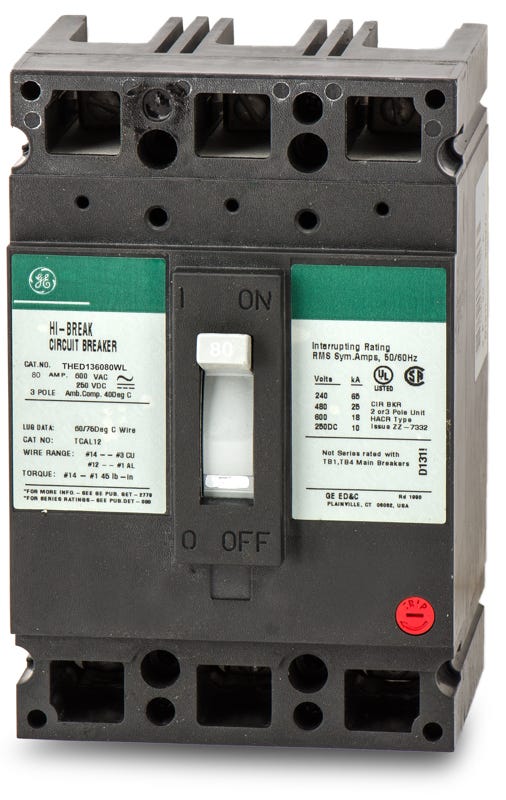

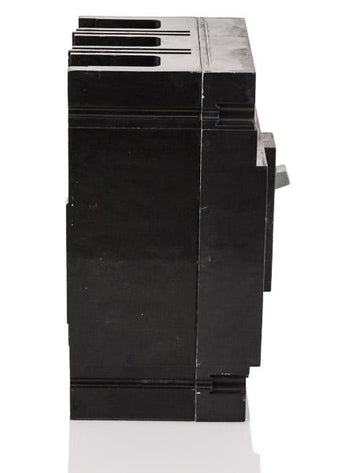

ABB / General Electric THED136080WL Molded Case Circuit Breaker
- 80A
- 3 Pole
- Unit Mount
ABB / General Electric
THED136080WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED136080WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED136080WL - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric THED136080WL - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED136080WL |
| Series | THED |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Quantity
ABB / General Electric THED136080WL - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED136080WL-R |
| Series | THED |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Similar Items
ABB / General ElectricTHED136070WL
70A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136100WL
100A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136060WL
60A 3 Pole Molded Case Circuit Breaker
Description
Engineered for demanding industrial environments, the GE THED136080WL is a 3-pole, 80A molded case circuit breaker from the legacy E150 frame family. This unit-mount breaker features factory-installed line and load lugs, making it ideal for standalone enclosures, switchboards, and motor control centers. It delivers a robust 65kAIC interrupting rating at 240VAC (18kAIC at 600VAC) and utilizes fixed thermal-magnetic trip technology for dependable long-time and instantaneous (LI) protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED136080WL-R |
| Series | THED |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | CSA C22.2 No. 5.1, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip |
Product FAQs
6 answersWhat does the "WL" suffix mean on the THED136080WL catalog number?
The "WL" suffix indicates that the circuit breaker comes factory-equipped with aluminum/copper (Al/Cu) lugs on both the line and load sides. Without this suffix, the breaker is typically shipped bare and requires lugs to be sourced separately.
Which types of electrical equipment accept the THED136080WL breaker?
This E-frame (E150 line) molded case circuit breaker is designed for unit-mount installation in legacy GE enclosures, switchboards, and motor control centers.
Why might my THED136080WL arrive with an ABB label instead of General Electric?
ABB acquired GE Industrial Solutions in 2018. Since the transition, the E150 legacy breaker line continues to be manufactured to the exact same form, fit, and electrical specifications, but units may feature ABB branding, GE branding, or a combination of both.
Can the THED136080WL be reverse fed?
Yes, GE E150 line breakers, including the THED series, are suitable for reverse feed applications. They utilize a non-interchangeable, fixed thermal-magnetic trip unit without specific line or load orientation restrictions.
What is the difference between GE TED and THED circuit breakers?
The "H" in the THED designation stands for high interrupting capacity. While a standard E-frame TED breaker is typically rated for 18kA at 240VAC, the THED series is rated for 65kA at 240VAC, making it suitable for distribution systems with higher available fault currents.
Is the THED136080WL rated for use with HVAC equipment?
Yes, this breaker carries an HACR rating, meaning it is certified for the protection of multi-motor heating, air conditioning, and refrigeration circuits.
