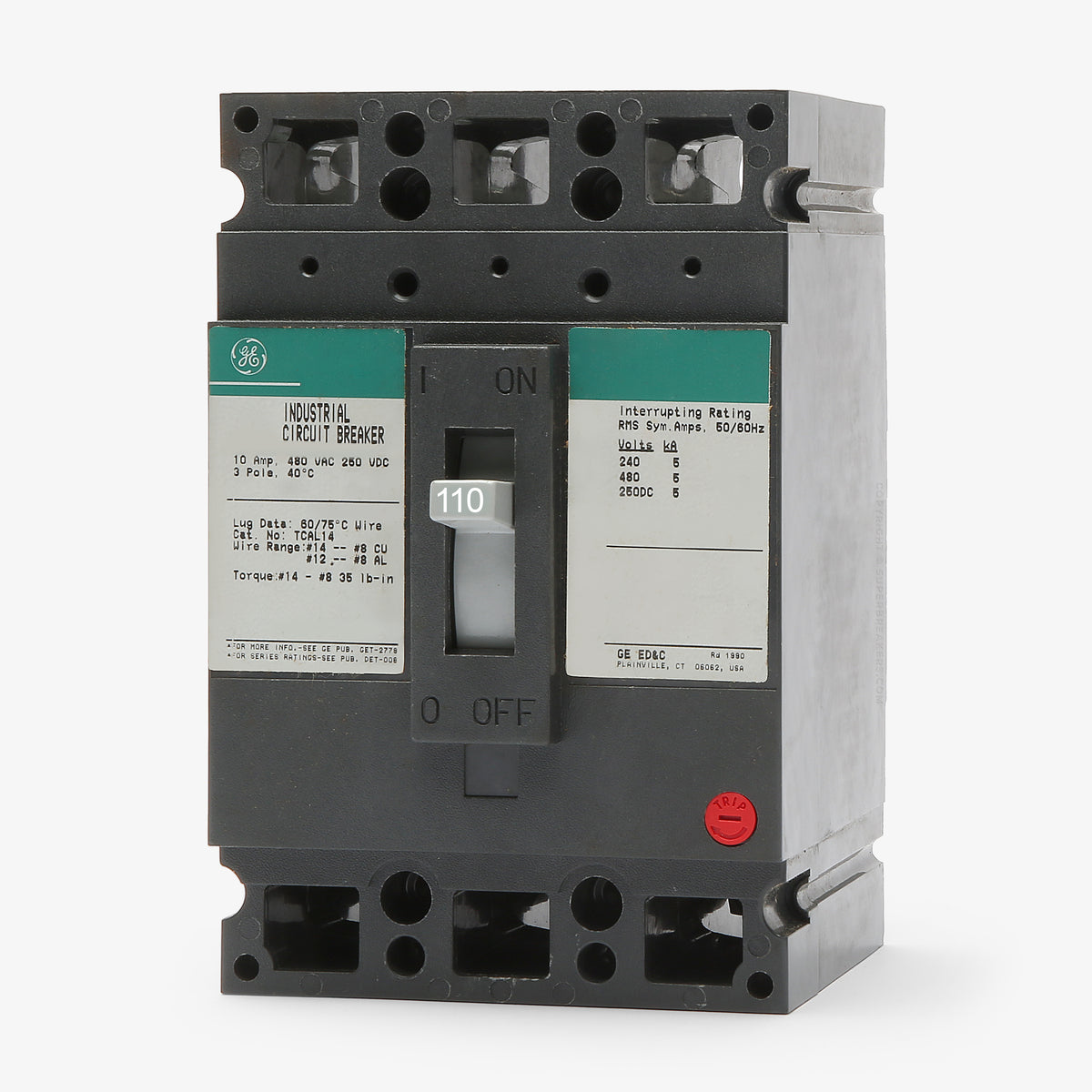

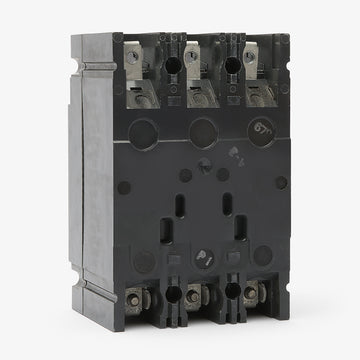

ABB / General Electric THED136110WL Molded Case Circuit Breaker
- 110A
- 3 Pole
- Unit Mount
ABB / General Electric
THED136110WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED136110WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED136110WL - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHED136125WL
125A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136090WL
90A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136080WL
80A 3 Pole Molded Case Circuit Breaker
Description
Designed for industrial applications, the GE THED136110WL is a 3-pole, 110A MCCB from the E150 line. It provides dependable overcurrent defense for demanding 600VAC electrical systems. This unit-mount breaker includes factory-installed line and load lugs, allowing installation into enclosures, switchboards, and motor control centers. It serves as an exact replacement for older TED136110WL models. It features a fixed thermal-magnetic trip unit and a high interrupting capacity of 65kA at 240V.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED136110WL |
| Series | THED |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC, 10kA @ 500VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG - 3/0 AWG (Cu), 1 AWG - 3/0 AWG (Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB-1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity |
Product FAQs

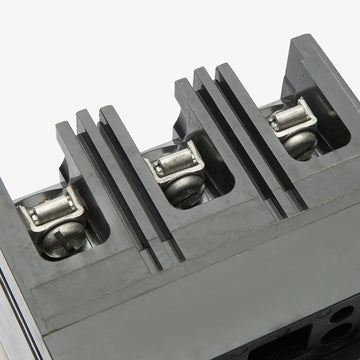

6 answersWhat does the WL suffix indicate on the THED136110WL?
The WL suffix designates that the breaker comes factory-equipped with line and load lugs.
What frame family does the THED136110WL belong to?
This breaker is part of the GE E-Frame family, specifically the TED frame type. It shares the same physical footprint as other 150-amp maximum E-Frame breakers.
Is the THED136110WL suitable for direct current systems?
Yes, this thermal-magnetic breaker is rated for DC applications. It provides a 10kA interrupting capacity at both 250VDC and 500VDC.

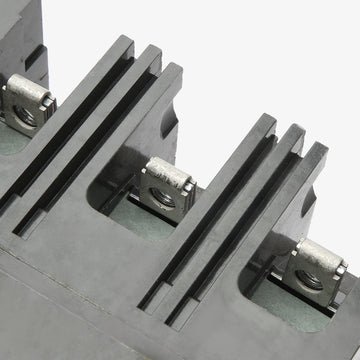

What are the accepted wire sizes for the factory lugs on this 110A breaker?
The included lugs accept 3 AWG to 3/0 AWG copper conductors, or 1 AWG to 3/0 AWG aluminum conductors. Ensure proper torque specifications are followed during installation.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions. You may receive this exact E-Frame breaker with either GE or ABB branding, but the physical dimensions, mounting, and UL listings remain identical.
Where is the THED136110WL typically mounted?
As a unit-mount, bolt-on breaker, it is designed for installation in GE switchboards, motor control centers, and standalone industrial enclosures rather than standard load centers.
