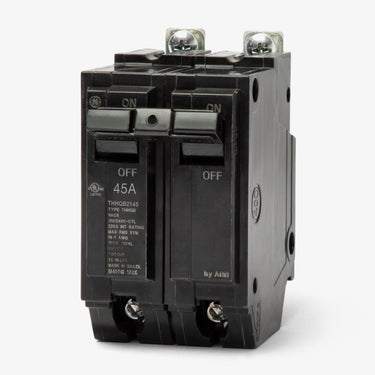

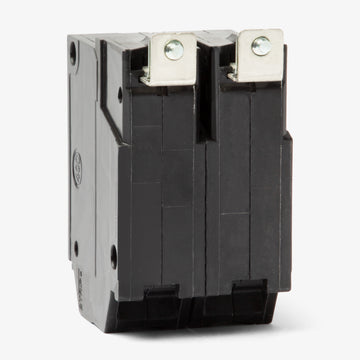

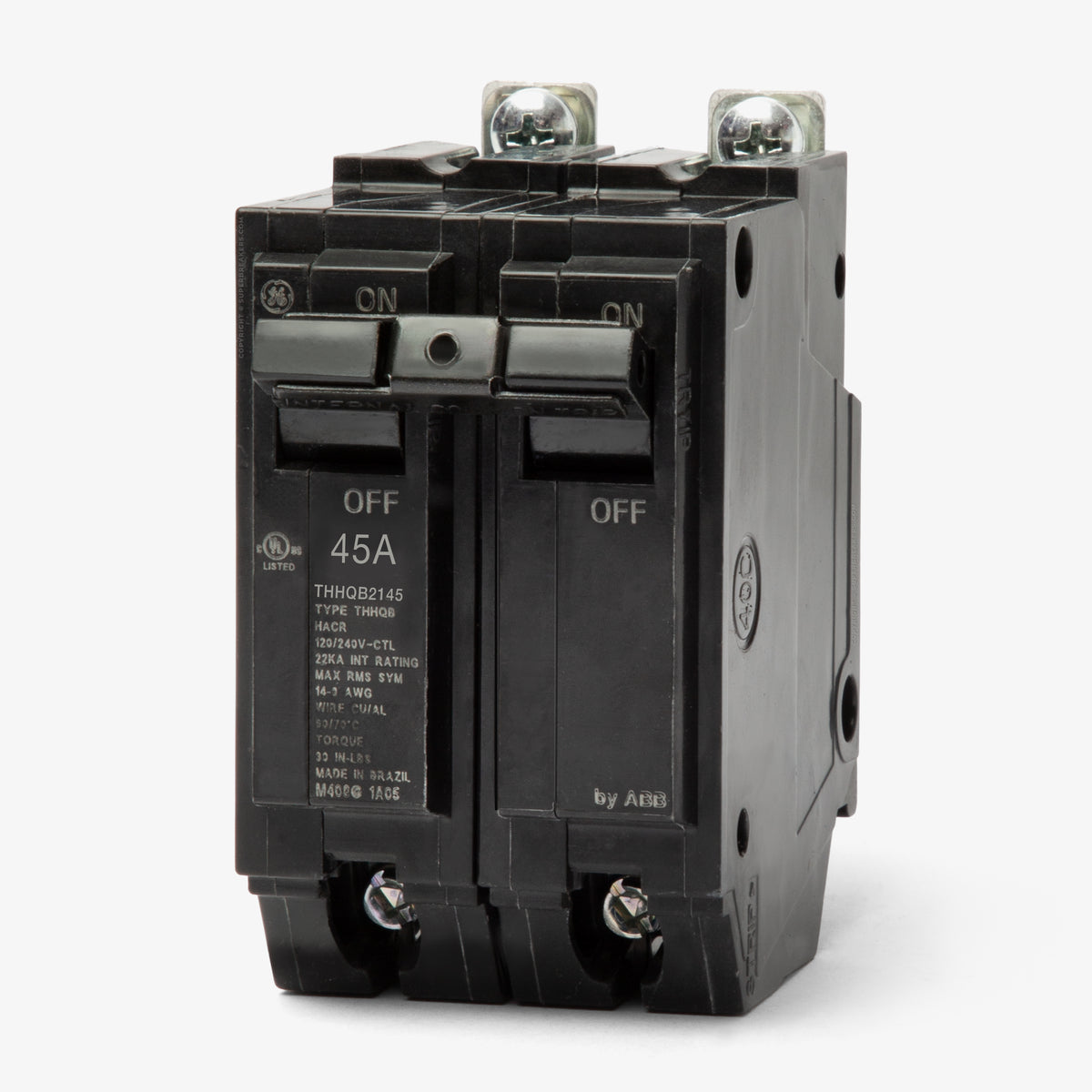

ABB / General Electric THHQB2145 Miniature Circuit Breaker
- 45A
- 2 Pole
- Bolt-On
ABB / General Electric
THHQB2145
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB2145
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB2145 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHHQB2140
40A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2135
35A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB2160
60A 2 Pole Miniature Circuit Breaker
Description
Part of the robust Q-Line family, this 45A component offers dependable thermal-magnetic protection. A trip-free mechanism guarantees tripping even if the handle is held ON. Designed for seamless integration, it mounts into GE A-Series panelboards and ReliaGear lighting panels. Standard box lugs accommodate 8-3 AWG conductors. The 22kAIC interrupting capacity provides enhanced fault clearing. An internal common trip disconnects both poles simultaneously during an overload.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB2145 |
| Series | THHQB |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|

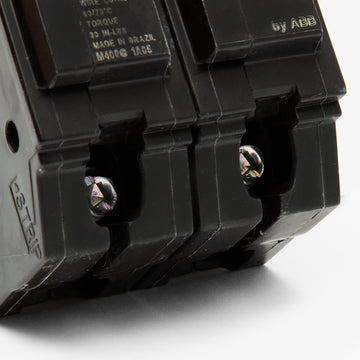

| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear Lighting Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhat panelboards are compatible with the THHQB2145 circuit breaker?
The THHQB2145 is a bolt-on Q-Line breaker designed for use in GE A-Series panelboards and ReliaGear Lighting Panelboards.
What is the difference between a standard THQB and the THHQB2145?
The "H" in THHQB indicates a high interrupting capacity. While standard THQB breakers are rated at 10kAIC, the THHQB2145 features a higher 22kAIC interrupting rating at 120/240VAC.
What are the lug tightening torque specifications for the THHQB2145?
For the box lugs on this breaker, torque to 40 in-lb for 8 AWG wire, 45 in-lb for 6 to 4 AWG wire, and 50 in-lb for 3 AWG wire.
Can the THHQB2145 be used to replace a standard THQB2145?
Yes, the THHQB2145 shares the same physical dimensions and bolt-on mounting as the THQB2145, but offers a higher 22kAIC rating. Upgrading to a higher interrupting rating is generally acceptable, but always verify your specific panel and local code requirements.
What trip functions are included in the THHQB2145?
This breaker features a non-interchangeable thermal magnetic trip unit with fixed Long-Time and Instantaneous (LI) trip functions.

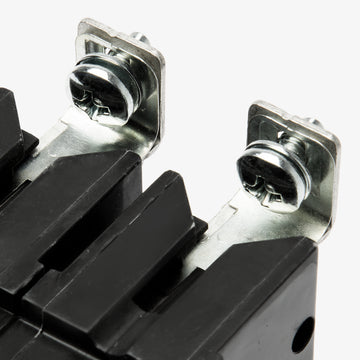

How does the THHQB2145 connect to the panel bus?
It utilizes a bolt-on connection, providing a secure, vibration-resistant attachment to the panelboard bus compared to plug-in Q-Line alternatives.
