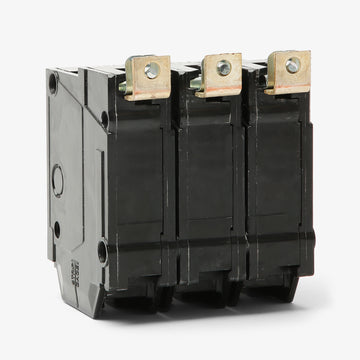

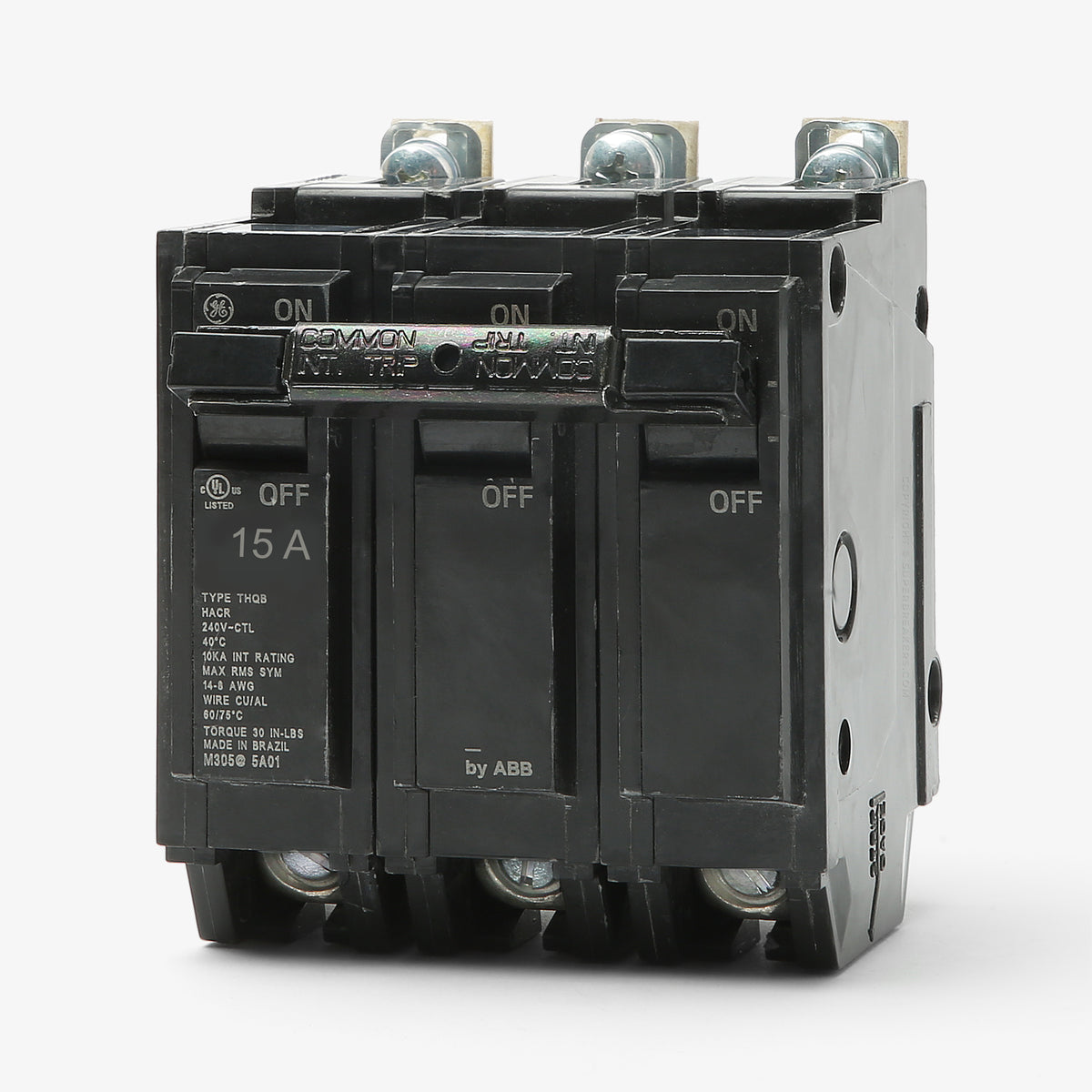

ABB / General Electric THHQB32015 Miniature Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
ABB / General Electric
THHQB32015
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB32015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB32015 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB32015 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32015 |
| Series | THHQB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear Lighting Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THHQB32015 - 15A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32015-R |
| Series | THHQB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear Lighting Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTHHQB32025
25A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB32030
30A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB32040
40A 3 Pole Miniature Circuit Breaker
Description
Built for three-phase commercial power distribution, this 15A Q-Line breaker delivers consistent overload and short-circuit response. It incorporates an internal common trip mechanism to disconnect all poles simultaneously during a fault. Fastening securely via bolt-on mounting, it integrates seamlessly with GE A-Series and ReliaGear lighting panelboards. The robust connection ensures stable performance in high-traffic facility operations.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32015 |
| Series | THHQB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, ReliaGear Lighting Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards are compatible with the THHQB32015 breaker?

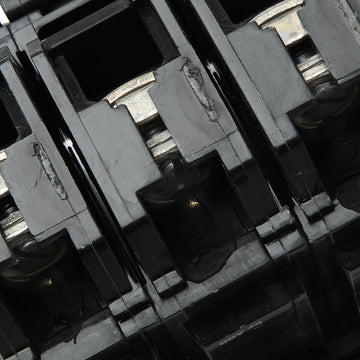

This bolt-on breaker is designed for use in GE A-Series panelboards and ABB ReliaGear lighting panelboards. It requires a bolted connection to the bus bar and will not fit in standard load centers that use plug-in breakers.
What is the difference between a THQB and a THHQB circuit breaker?
Both are 1-inch wide per pole bolt-on breakers for GE commercial panels, but they have different interrupting ratings. The standard THQB is rated at 10kAIC, while the THHQB features a higher interrupting capacity of 22kAIC.
What wire gauges are approved for the THHQB32015 lugs?

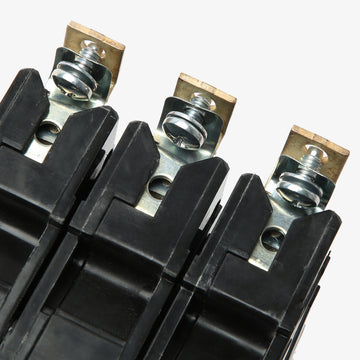

The box lugs on this 15-amp breaker accept 14 to 8 AWG copper conductors or 12 to 8 AWG aluminum conductors.
What is the interrupting capacity of the THHQB32015?
This high-interrupting Q-Line breaker delivers a 22kAIC rating at 120V, 240V, and 208/240V AC. This makes it suitable for commercial locations with higher available fault currents compared to standard 10kAIC breakers.
How does the THHQB32015 handle multi-phase faults?
This 3-pole breaker features an internal common trip bar. If an overload or short circuit occurs on any single phase, the mechanism ensures all three poles disconnect simultaneously to protect the circuit.
Is the THHQB32015 trip mechanism independent of the handle?
Yes, it features a trip-free mechanism. The breaker will successfully trip and interrupt the circuit during an overload or short circuit even if the operating handle is physically held in the ON position.
