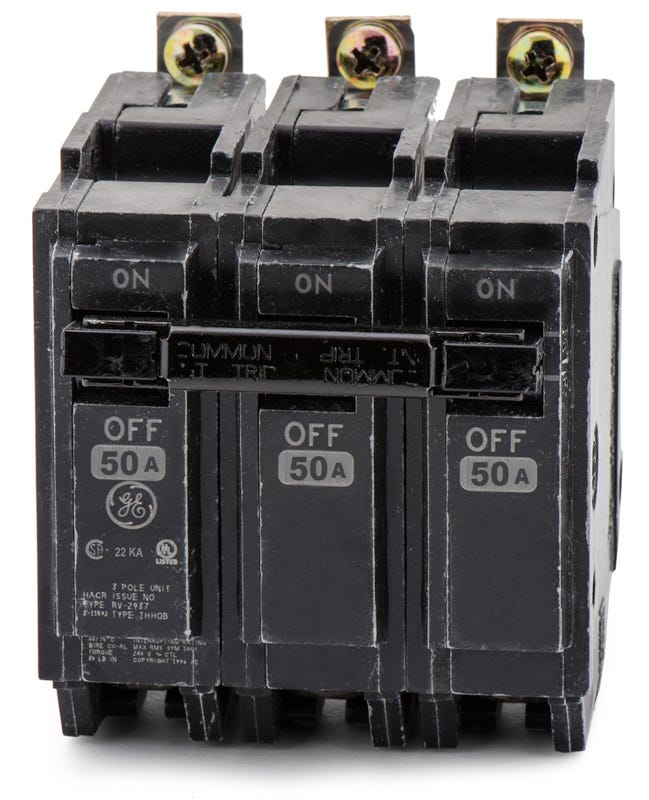

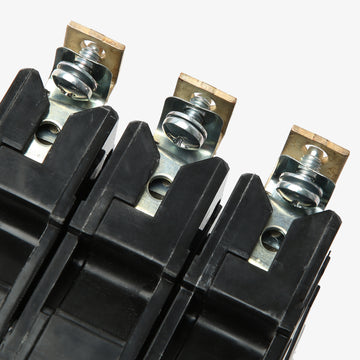

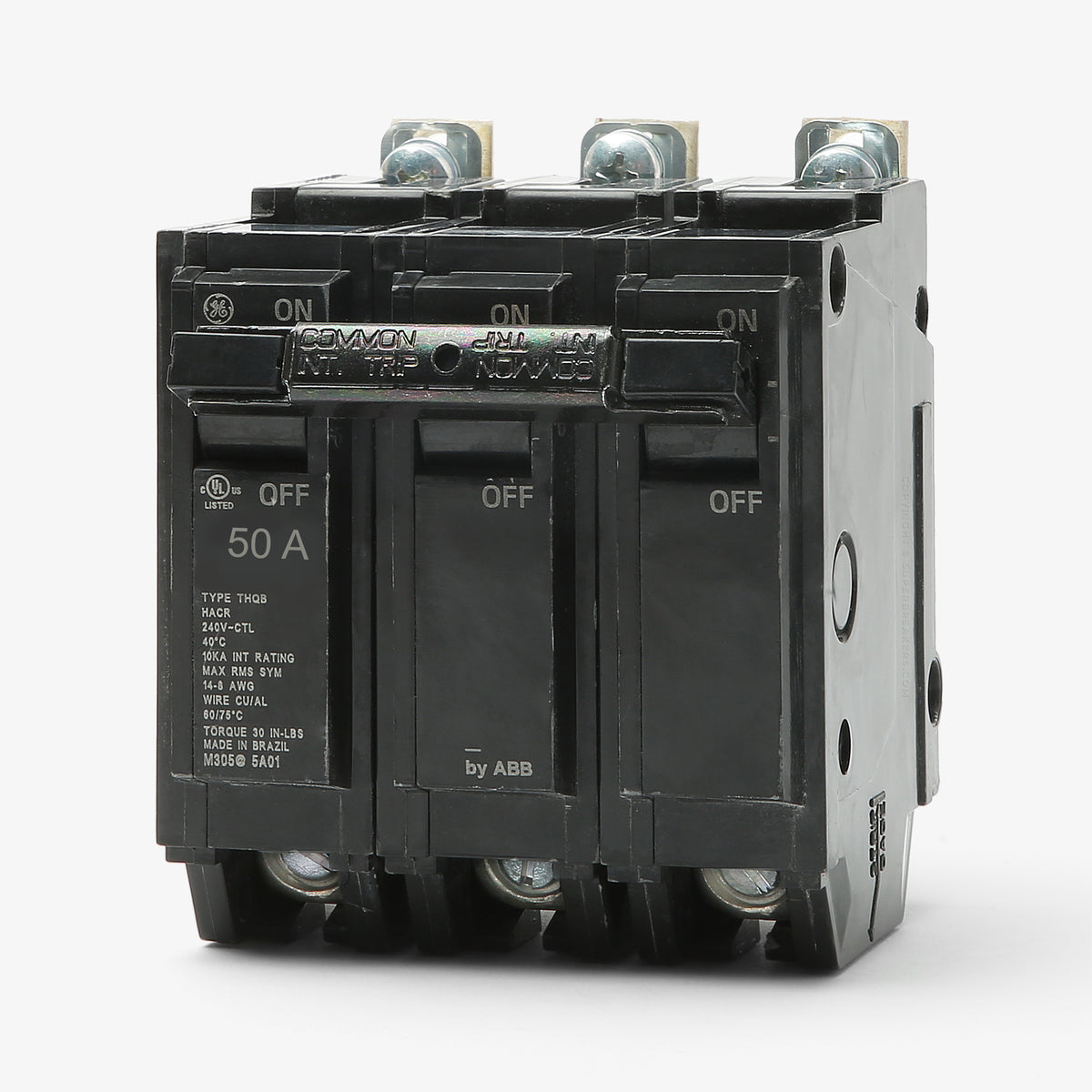

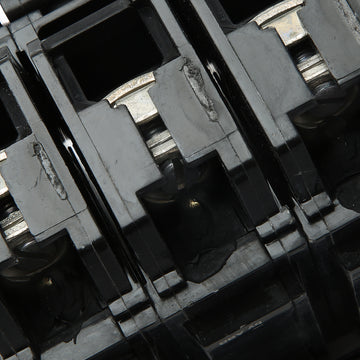

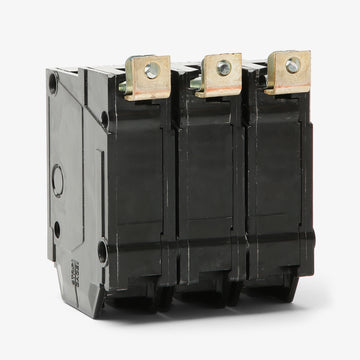

ABB / General Electric THHQB32050 Miniature Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
ABB / General Electric
THHQB32050
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB32050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB32050 - 50A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB32050 - 50A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32050 |
| Series | THHQB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Reverse Feed |
Sold out
Quantity
ABB / General Electric THHQB32050 - 50A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32050-R |
| Series | THHQB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Reverse Feed |
Similar Items
ABB / General ElectricTHHQB32060
60A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB32040
40A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHHQB32070
70A 3 Pole Miniature Circuit Breaker
Description
Built for three-phase commercial systems, the GE THHQB32050 provides dependable 22kAIC fault interruption at 240VAC. This 50-amp Q-Line miniature breaker delivers reliable thermal-magnetic protection. It fastens firmly into GE ReliaGear, A-Series, and AQ panelboards, ensuring a secure, vibration-resistant connection for critical circuits. Featuring non-interchangeable trip elements and an internal common trip, this HACR-rated breaker fully supports reverse feed applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32050 |
| Series | THHQB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
8 answersWhich panelboards are compatible with the THHQB32050?
This bolt-on breaker is designed for use in GE A-Series, GE AQ, and ABB ReliaGear panelboards. It is not compatible with load centers that require plug-in style breakers.
What is the difference between the THHQB32050 and the THQB32050?
The THHQB32050 features a higher interrupting rating of 22kAIC at 240VAC. The standard THQB32050 has an interrupting rating of 10kAIC. Both share the same physical dimensions and bolt-on mounting style.
What wire sizes are accepted by the terminals on this 50A breaker?
The box lugs accept 8 AWG to 3 AWG wire for both copper (Cu) and aluminum (Al) conductors. Always verify the specific torque requirements printed on the breaker label before terminating.
Will this breaker arrive branded as ABB or General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, the THHQB32050 may feature either ABB or GE branding, but the form, fit, and function remain identical.
Does the THHQB32050 include ground fault or arc fault protection?
No. This is a standard thermal magnetic breaker with fixed long-time and instantaneous (LI) trip functions. It does not provide equipment protection (EPD), GFCI, or AFCI capabilities.
Does this breaker require a specific mounting hardware kit?
The THHQB32050 bolts directly to the busbar of compatible A-Series and AQ panelboards. The mounting screws are typically retained in the breaker housing for installation, requiring no separate hardware kit.
Can I install this 3-pole breaker in a single-phase panel?
No. The THHQB32050 is a 3-pole breaker designed for 3-phase systems. It requires a 3-phase panelboard bus to mount and function correctly.
Is this breaker suitable for high-inrush loads?
The THHQB32050 uses a standard fixed thermal magnetic trip curve. For specialized high-inrush applications like large motors or transformers, verify that the standard instantaneous trip threshold meets your coordination requirements.
