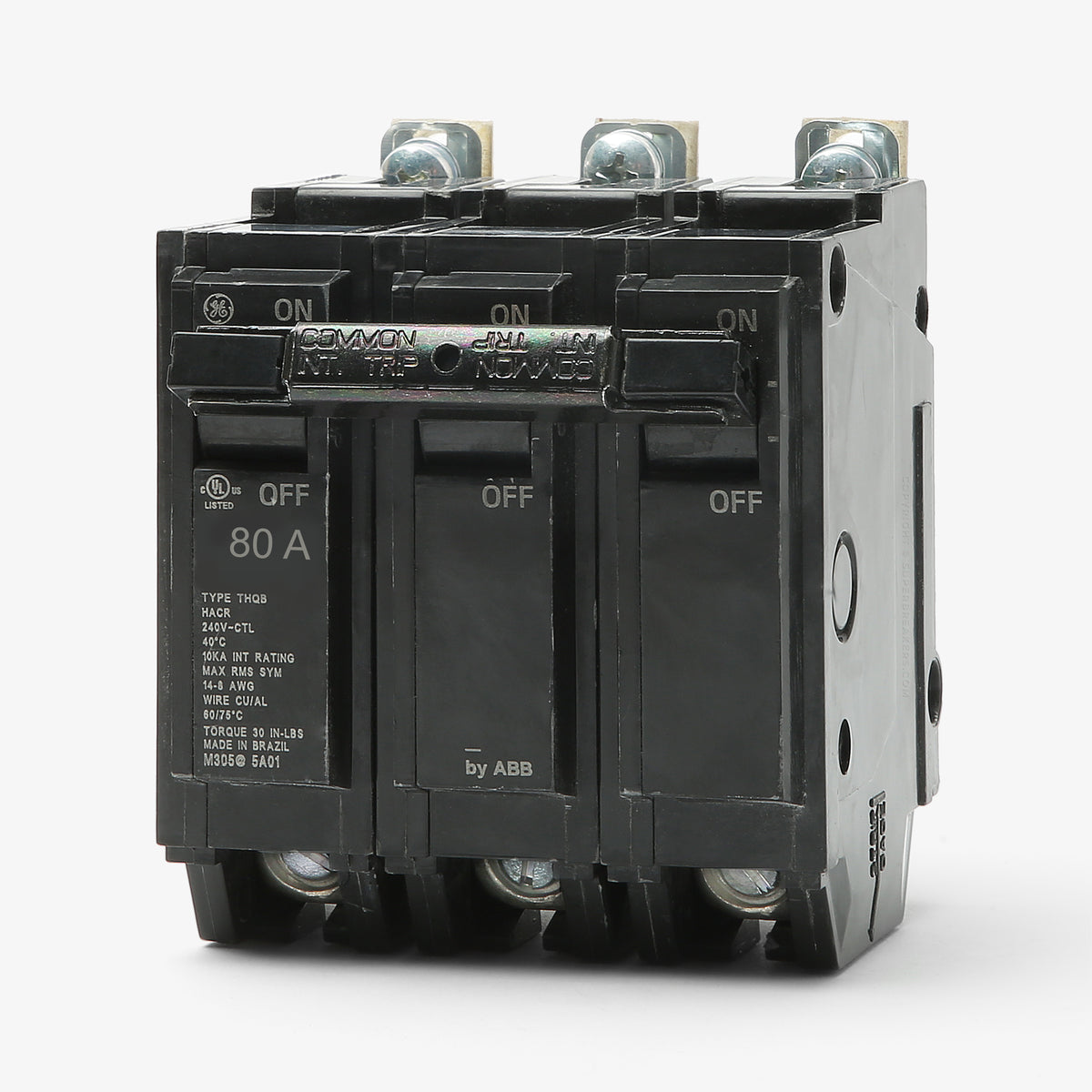

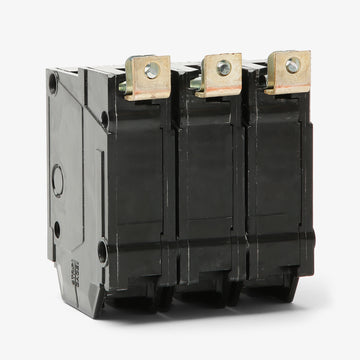

ABB / General Electric THHQB32080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
ABB / General Electric
THHQB32080
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THHQB32080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THHQB32080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THHQB32080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32080 |
| Series | THHQB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Sold out
Quantity
ABB / General Electric THHQB32080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32080-R |
| Series | THHQB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Similar Items
3 Pole Circuit Breaker

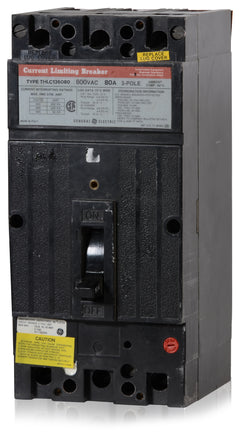

ABB / General ElectricTHLC136080
80A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEY380ST12
80A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial environments, this 80-amp Q-Line component provides reliable thermal-magnetic trip functions. The unit features quick-make mechanisms for consistent operation. It mounts into GE A-Series, AQ, and ABB ReliaGear panelboards. The bolt-on design ensures a secure connection for three-phase distribution systems. Rated at 22kAIC for 240VAC, it offers higher interrupting capacity than standard 10kA versions. It carries an HACR rating for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THHQB32080 |
| Series | THHQB |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Panelboards, ReliaGear Panelboards |
| Wire Gauge | 6-1/0 AWG (Cu), 4-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the THHQB32080 circuit breaker?
This bolt-on breaker is designed for use in GE A-Series, GE AQ, and ABB ReliaGear panelboards. It requires a bolt-on connection and will not fit in standard Powermark Gold load centers that use plug-in Q-Line breakers.
What is the difference between GE THQB and THHQB breakers?
The primary difference is the interrupting capacity. Standard THQB breakers are rated at 10kAIC, while THHQB breakers like the THHQB32080 feature a higher interrupting rating of 22kAIC. Both share the same physical dimensions and bolt-on mounting configuration.
What are the wire size and torque specifications for the THHQB32080 lugs?

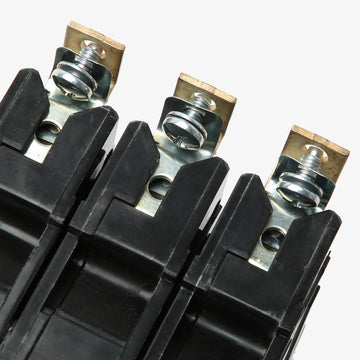

The box lugs accept 6 to 1/0 AWG copper or 4 to 1/0 AWG aluminum wire. The required tightening torque is 45 in-lb for 6 to 4 AWG wire and 50 in-lb for 3 to 1/0 AWG wire.
Can the THHQB32080 be used on a 480V system?
No, this breaker is rated for a maximum of 240VAC. It cannot be used on 480V or 277/480V electrical systems. For 480V applications, a different breaker frame such as the TEY series is required.
Does the THHQB32080 include ground fault or arc fault protection?
No, this is a standard thermal-magnetic circuit breaker providing overload and short-circuit protection. It does not include GFCI or AFCI functionality.
