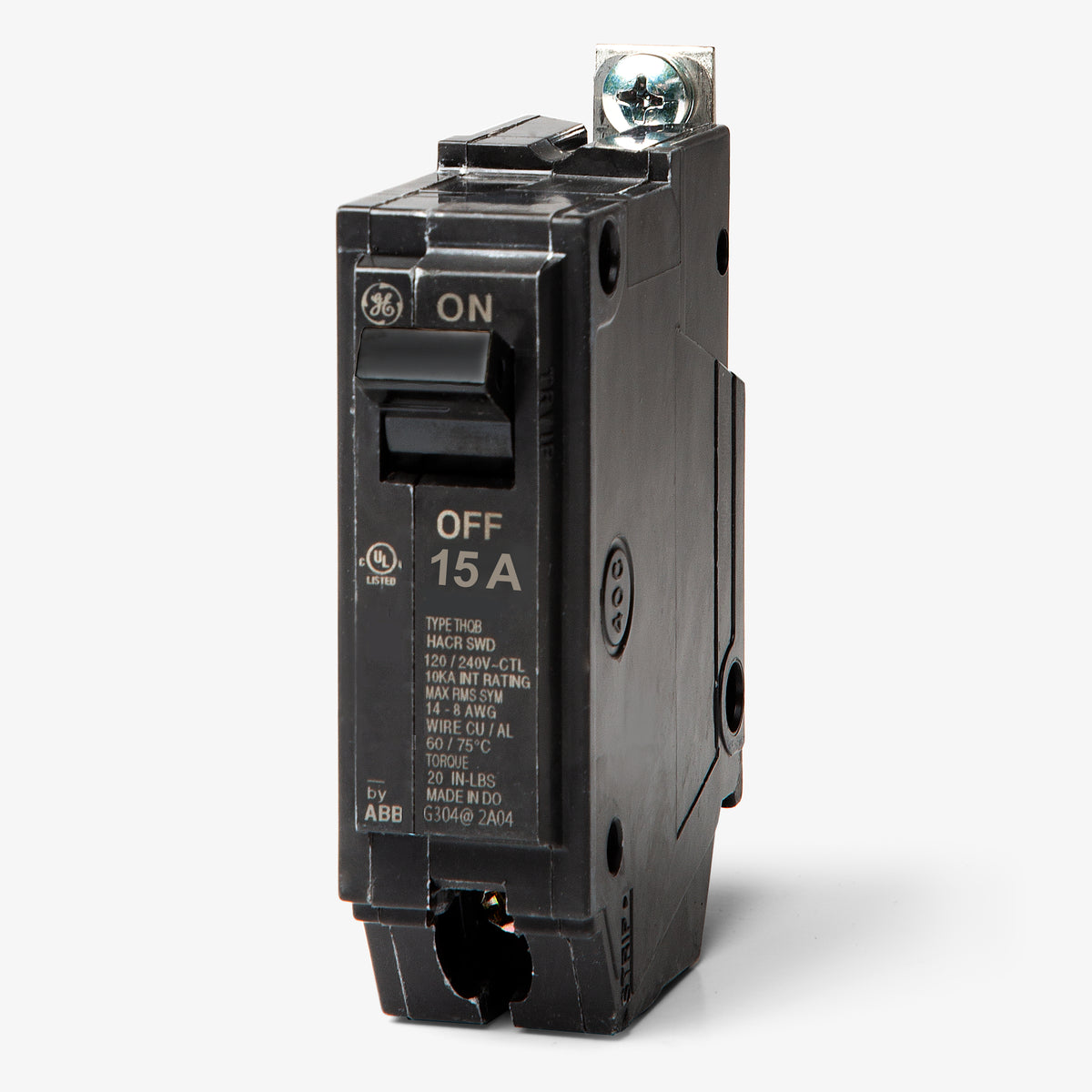

ABB / General Electric THQB1115 Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
ABB / General Electric
THQB1115
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB1115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB1115 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB1115 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1115 |
| Series | THQB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Quantity
ABB / General Electric THQB1115 - 15A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1115-R |
| Series | THQB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQB1120
20A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1120HID
20A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1120ST1
20A 1 Pole Miniature Circuit Breaker
Description
Engineered for commercial environments, the THQB1115 delivers precise 15A thermal-magnetic protection. It carries an SWD (Switching Duty) classification, making it suitable for regular switching of fluorescent lighting loads. The unit bolts firmly into GE AQ lighting panels and A-Series panelboards. This mechanical fastening ensures a vibration-resistant connection, which is critical for industrial power distribution systems.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1115 |
| Series | THQB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break |
Product FAQs
5 answersIs the ABB THQB1115 the same as the GE THQB1115?
Yes. ABB acquired GE Industrial Solutions in 2018. Both brands share the identical internal design, footprint, and THQB1115 catalog number. An ABB branded breaker is a direct, manufacturer-approved replacement for an older GE branded unit.
What is the difference between GE THQB, THQL, and THQC circuit breakers?
All three belong to the 1-inch wide Q-Line family but utilize different panel mounting methods. The THQB series mounts via a bolt-on connection to the bus. THQL breakers are plug-on units, and THQC breakers feature cable-in, cable-out lug connections or surface mounting.
Can the THQB1115 be reverse fed?
Yes, this fixed thermal magnetic circuit breaker does not have line or load terminal restrictions and is rated as suitable for reverse feed applications.
Is the THQB1115 suitable for switching lighting circuits?
Yes, this 15-amp breaker carries an SWD (Switching Duty) classification. It is approved for the regular daily switching of 120VAC fluorescent lighting loads without rapidly degrading the internal contacts.
Does this breaker carry an HACR rating?
Yes, the THQB1115 is HACR rated. It is certified for use with compatible heating, air conditioning, and refrigeration motor groups that require this specialized branch circuit protection.
