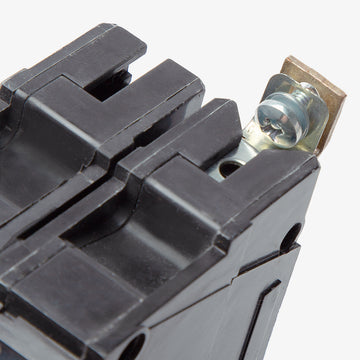

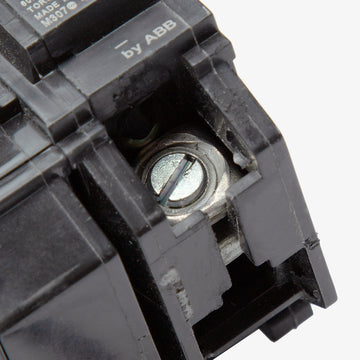

ABB / General Electric THQB1120ST1 Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
ABB / General Electric
THQB1120ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB1120ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB1120ST1 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB1120ST1 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1120ST1 |
| Series | THQB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR Rated, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Reverse Feed |
Sold out
Quantity
ABB / General Electric THQB1120ST1 - 20A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1120ST1-R |
| Series | THQB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR Rated, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Reverse Feed |
Similar Items
ABB / General ElectricTHQB1115ST1
15A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1130ST1
30A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2120ST1
20A 2 Pole Miniature Circuit Breaker
Description
Providing remote shutdown capabilities, the GE THQB1120ST1 is a 20-amp, single-pole miniature circuit breaker. It features a factory-installed 120VAC shunt trip mechanism, allowing the breaker to be tripped from a remote location for emergency stops. This unit installs into GE A-Series panelboards. The bolt-on design ensures a secure, vibration-resistant connection to the bus bar in industrial settings.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1120ST1 |
| Series | THQB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR Rated, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
7 answersWhat panelboards are compatible with the THQB1120ST1 circuit breaker?
This bolt-on Q-Line miniature breaker fits GE A-Series panelboards, including AQ and AL lighting panels, and ABB ReliaGear RQ panelboards.
Can I install the THQB1120ST1 in a standard residential load center?
No. The THQB series features a bolt-on connection designed for commercial panelboards. It will not fit in standard plug-on load centers that require THQL series breakers.
Are GE and ABB THQB circuit breakers interchangeable?
Yes. Following ABB's acquisition of GE Industrial Solutions, THQB breakers are manufactured by ABB. A GE-branded and an ABB-branded THQB1120ST1 share the exact same catalog number, form factor, and safety listings.
How many panel spaces does the THQB1120ST1 require?
Although it is a 1-pole breaker, it requires two 1-inch pole spaces in the panel. One space houses the standard 20A breaker mechanism, and the second space accommodates the factory-installed shunt trip module.
What does the ST1 suffix indicate on this circuit breaker?
The ST1 suffix specifies that the breaker includes a factory-installed 120V AC shunt trip. This allows the breaker to be tripped remotely when control voltage is applied to the accessory.
How is the shunt trip function activated on the THQB1120ST1?
The shunt trip is typically wired to a momentary pushbutton, emergency stop, or safety relay. Applying 120V AC to the accessory wires electrically actuates the internal mechanism to instantly open the breaker contacts.
Do I need to manually reset the breaker after a remote shunt trip?
Yes. Once the shunt trip accessory opens the breaker, the operating handle moves to the tripped position. You must manually move the handle fully to the OFF position and then back to the ON position to restore power.
