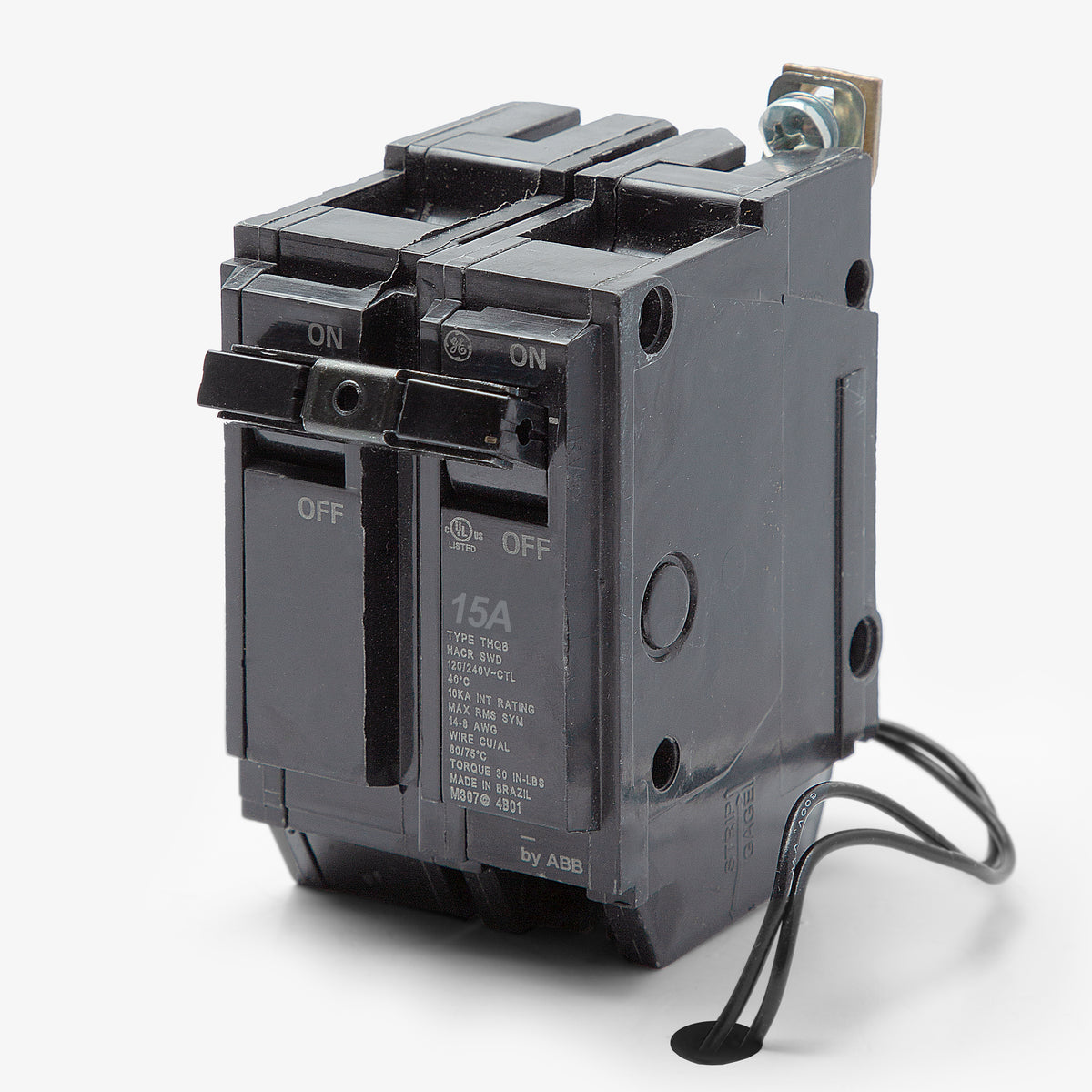

ABB / General Electric THQB1115ST1 Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
ABB / General Electric
THQB1115ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB1115ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB1115ST1 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQB1125ST1
25A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1130ST1
30A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL1115ST1
15A 1 Pole Miniature Circuit Breaker
Description

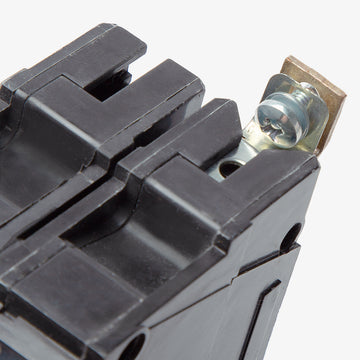

Part of the Q-Line family, the GE THQB1115ST1 is a 1-pole, 15A breaker featuring a factory-installed 120VAC shunt trip for remote shutdown capabilities. The bolt-on design mounts into GE A-Series panelboards and AQ lighting panels. It utilizes standard box lugs accepting 14-8 AWG copper or 12-8 AWG aluminum wire. Delivering 10kAIC at 120/240VAC, the breaker uses thermal-magnetic trip technology. It includes a trip-free mechanism and is SWD-rated for fluorescent lighting.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | THQB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhat does the ST1 suffix indicate on the THQB1115ST1?
The ST1 suffix designates a factory-installed 120VAC shunt trip mechanism. This allows the breaker to be tripped remotely via an external control signal, which is commonly used for emergency shutdown or automated control systems.
Which panelboards are compatible with this bolt-on breaker?
This unit is designed for use in GE A-Series panelboards and GE AQ lighting panels. It requires a bolt-on connection to the panel bus and cannot be used in plug-on load centers.
What are the acceptable wire sizes for the box lugs on this breaker?

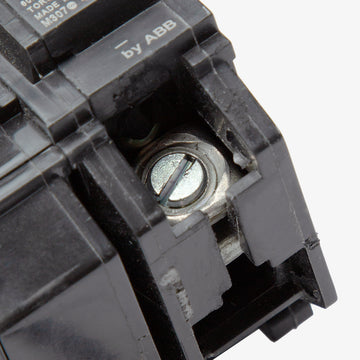

The terminals accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire. Ensure proper torque specifications are followed during installation to maintain a secure connection.
How is the shunt trip wired for remote operation?

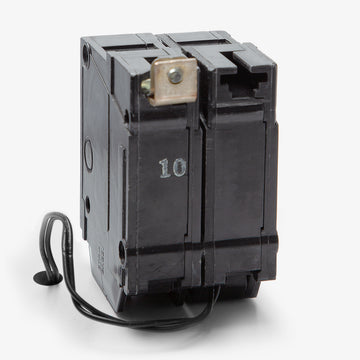

The factory-installed shunt trip includes external pigtail leads that must be connected to a 120VAC control circuit. When voltage is applied to these leads, the internal coil energizes and mechanically trips the breaker.
Is the THQB1115ST1 rated for switching duty and HVAC applications?
Yes, this 15A breaker is SWD rated for switching 120VAC fluorescent lighting loads. It is also HACR rated for use with heating, air conditioning, and refrigeration equipment.
Does this breaker require a separate control power source for the shunt trip?
Yes, the factory-installed shunt trip requires an external 120VAC control voltage source to actuate the trip coil. It does not draw control power from the breaker's primary load circuit.
Can I use this bolt-on breaker in a standard GE PowerMark Gold load center?
No, this THQB series breaker features a bolt-on connection designed for commercial panelboards. Standard GE PowerMark Gold residential load centers require plug-in THQL series breakers.
