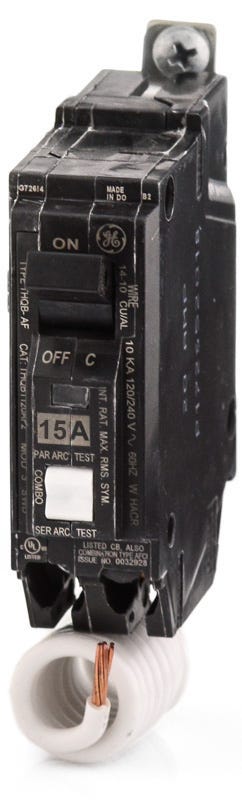

ABB / General Electric THQB1115AF2 AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
ABB / General Electric
THQB1115AF2
AFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB1115AF2
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB1115AF2 - 15A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL1115AF
15A AFCI Miniature Circuit Breaker
ABB / General ElectricTHQL1115AF2
15A AFCI Miniature Circuit Breaker

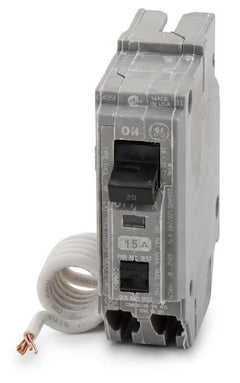

ABB / General ElectricTHHQL1115AF2
15A AFCI Miniature Circuit Breaker
Description
Providing comprehensive protection against electrical fires, this 15A single-pole unit detects both parallel and series arcing faults. The included pigtail neutral facilitates straightforward wiring. Utilizing a sturdy bolt-on connection, it integrates into GE A-Series panelboards and AQ lighting panels. This updated model replaces the older THQB1115AF branch/feeder breaker. Delivering a 10kAIC interrupting rating at 120/240VAC, the device utilizes a non-interchangeable thermal-magnetic trip.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1115AF2 |
| Series | THQB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 1699 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break |
Product FAQs
5 answersCan I install the THQB1115AF2 in a standard GE residential load center?
No. The THQB1115AF2 is a bolt-on circuit breaker designed specifically for GE A-Series panelboards and AQ Lighting Panels. Standard GE residential load centers require plug-on THQL series breakers.
What does the AF2 suffix in the THQB1115AF2 catalog number indicate?
The AF2 designation indicates that this is a Combination Arc Fault Circuit Interrupter (AFCI). It provides protection against both parallel and series arc faults to meet modern National Electrical Code (NEC) requirements for branch circuits.
How is the neutral connection made on the THQB1115AF2?
This breaker features a pigtail neutral wire. During installation, the coiled white pigtail must be routed and terminated directly to the neutral bus bar in the panelboard to power the internal arc fault detection circuitry.
Does the THQB1115AF2 provide personnel ground fault (GFCI) protection?
No. This breaker is strictly a Combination AFCI device designed to detect dangerous arcing conditions that can cause electrical fires. It does not provide 5mA GFCI protection. If both arc fault and ground fault protection are required on the same circuit, a Dual Function (DFCI) breaker is necessary.
Is the THQB1115AF2 manufactured by GE or ABB?
ABB acquired GE Industrial Solutions, so this breaker may arrive branded as either ABB or General Electric. The THQB1115AF2 maintains the exact same specifications, physical footprint, and UL listing for GE panelboards regardless of the logo on the label.
