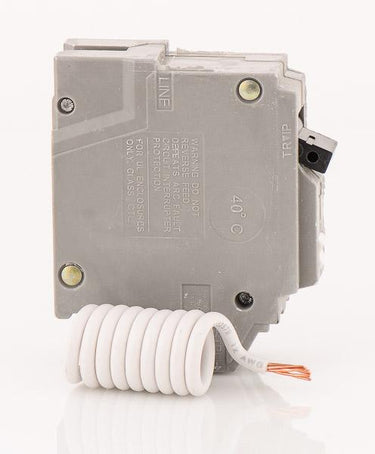

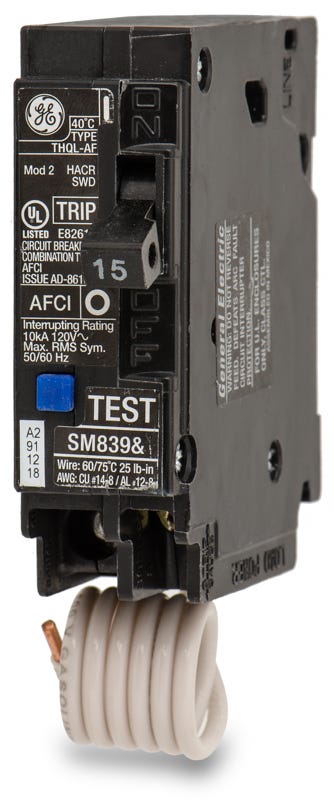

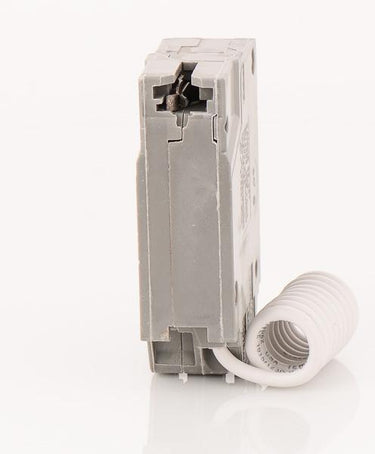

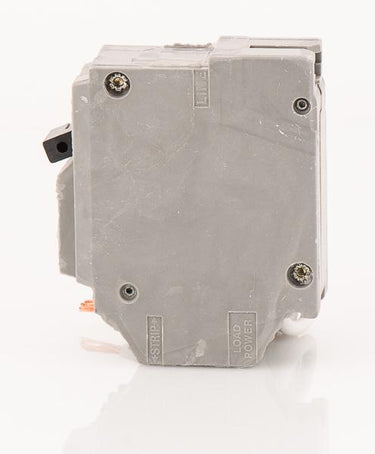

ABB / General Electric THQL1115AF AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
ABB / General Electric
THQL1115AF
AFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL1115AF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL1115AF - 15A AFCI Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL1115AF - 15A AFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1115AF |
| Series | THQL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, AQ Lighting Panels, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, SWD, UL 489, UL 1699 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Branch/Feeder Arc Fault Protection |
Sold out
Quantity
ABB / General Electric THQL1115AF - 15A AFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | THQL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, AQ Lighting Panels, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, SWD, UL 489, UL 1699 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Branch/Feeder Arc Fault Protection |
Similar Items
ABB / General ElectricTHQL1120AF2
20A AFCI Miniature Circuit Breaker
ABB / General ElectricTHQL1120AF2S
20A AFCI Miniature Circuit Breaker
ABB / General ElectricTHQL1120AFP2
20A AFCI Miniature Circuit Breaker
Description
Delivering reliable branch and feeder arc fault protection, the THQL1115AF is a 15-amp, single-pole breaker for residential applications. It features a standard pigtail neutral connection to meet early NEC arc-fault mitigation requirements. This plug-on unit mounts into GE PowerMark Gold load centers, A-Series panelboards, and ABB ReliaHome enclosures. It serves as the predecessor to the newer combination-type AFCI models.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1115AF |
| Series | THQL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, AQ Lighting Panels, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, SWD, UL 489, UL 1699 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Branch/Feeder Arc Fault Protection |
Product FAQs
5 answersDoes the THQL1115AF require a neutral pigtail connection?
Yes, this breaker features a pigtail neutral wire that must be connected directly to the panel's neutral bus bar for the arc fault detection circuitry to function properly.
What is the difference between the THQL1115AF and the THQL1115AF2?
The THQL1115AF is an older branch/feeder AFCI, while the THQL1115AF2 is a newer combination AFCI that detects both series and parallel arc faults. The THQL1115AF2 is the direct modern replacement for the THQL1115AF.
What are the recommended torque specifications for the THQL1115AF terminals?
For 14 to 10 AWG wire, torque the box lug to 35 lb-in. For 8 AWG wire, torque the lug to 40 lb-in.
Can I use a THQL1115AF in a panel that requires THQP breakers?
No. THQL breakers are full-size, requiring 1 inch of space per pole. THQP breakers are half-size, requiring only 1/2 inch per pole. They are not interchangeable unless the panel specifically accepts both 1-inch and 1/2-inch formats.
What type of arc fault protection does the THQL1115AF provide?
The THQL1115AF provides branch/feeder arc fault protection, which is designed to detect high-energy parallel arcs. For modern combination arc fault protection that also detects low-energy series arcs, you would need the THQL1115AF2.
