ABB / General ElectricTHQL1115AF
Free Shipping Over $99

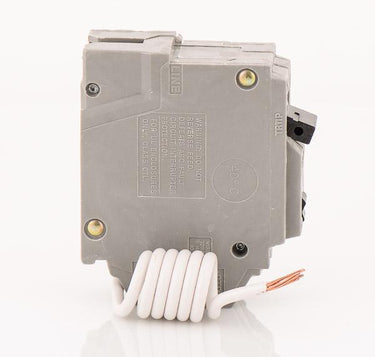

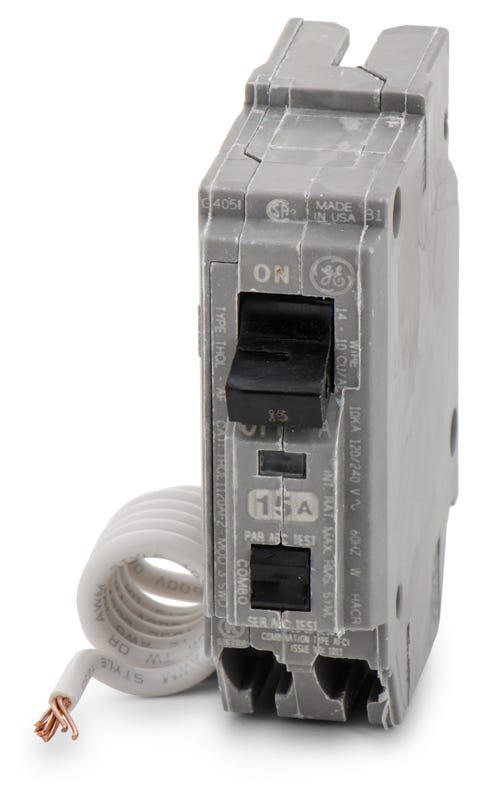

ABB / General Electric THQL1115AF2 AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
ABB / General Electric
THQL1115AF2
AFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL1115AF2
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL1115AF2 - 15A AFCI Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL1115AF2 - 15A AFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1115AF2 |
| Series | THQL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 1699, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Sold out
Quantity
ABB / General Electric THQL1115AF2 - 15A AFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | THQL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 1699, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Similar Items
ABB / General ElectricTHQL1120AF2
20A AFCI Miniature Circuit Breaker
ABB / General ElectricTHQL1120AF2S
20A AFCI Miniature Circuit Breaker
ABB / General ElectricTHQL1120AFP2
20A AFCI Miniature Circuit Breaker
Description
Redesigned for modern NEC compliance, the THQL1115AF2 is a 15-amp combination arc fault circuit interrupter. It actively monitors for both high-energy parallel arcs and low-energy series arcs, offering superior fire prevention for residential branch circuits. This one-inch plug-on breaker fits perfectly into GE Q-Line, PowerMark Gold, and ABB ReliaHome load centers.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1115AF2 |
| Series | THQL |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 1699, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Visual Trip Indicator |
Product FAQs
8 answersWhich load centers are compatible with the THQL1115AF2 breaker?
It is designed for use in GE Q-Line, GE PowerMark Gold, and ABB ReliaHome load centers that accept 1-inch plug-in breakers.
Does this AFCI breaker use a pigtail or plug-on neutral connection?
The THQL1115AF2 features a pigtail neutral wire. This pigtail must be routed and connected directly to the neutral bus bar in your panel to power the arc fault circuitry.
What is the difference between a standard AFCI and the combination AFCI provided by this breaker?
As a Combination Arc Fault Circuit Interrupter (CAFCI), this unit detects both high-energy parallel arcs and low-energy series arcs. Older branch or feeder AFCI models only detected parallel arcs.
Can the THQL1115AF2 replace the older THQL1115AF?
Yes. The THQL1115AF2 is the direct replacement for the obsolete THQL1115AF. The AF2 version upgrades the protection to a Combination AFCI to meet modern NEC requirements.
Is the THQL1115AF2 rated for switching duty and HVAC equipment?
Yes, this breaker carries both SWD (Switching Duty) and HACR (Heating, Air Conditioning, and Refrigeration) ratings. It can be used to switch 120V fluorescent lighting circuits and protect dedicated HVAC loads.
What wire gauges are accepted by the terminals on this breaker?
The box lugs accept 14 to 8 AWG copper conductors or 12 to 8 AWG aluminum conductors. Ensure proper torque is applied during installation.
Does this breaker provide ground fault protection?
No, the THQL1115AF2 is strictly an Arc Fault Circuit Interrupter (AFCI). If your circuit requires both arc fault and ground fault protection, you will need a Dual Function (DFCI) breaker instead.
How much panel space is required to install this breaker?
It requires a single 1-inch space on the bus bar in a compatible GE or ABB load center.
