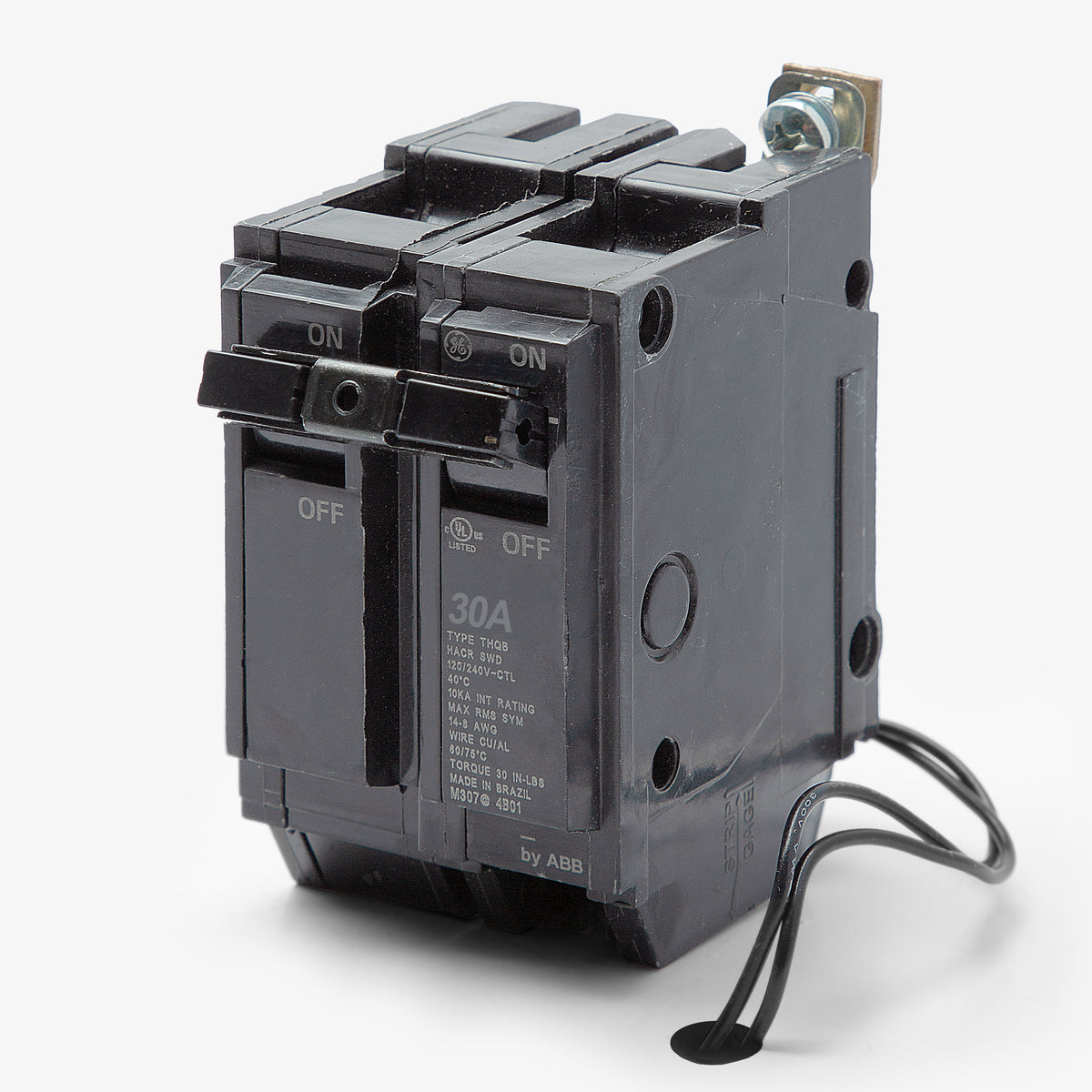

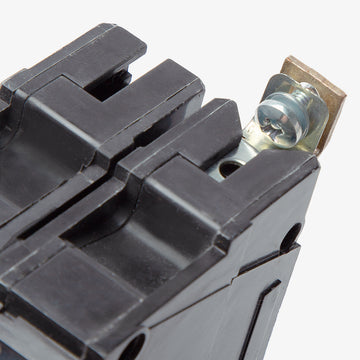

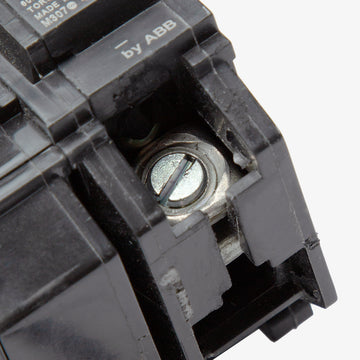

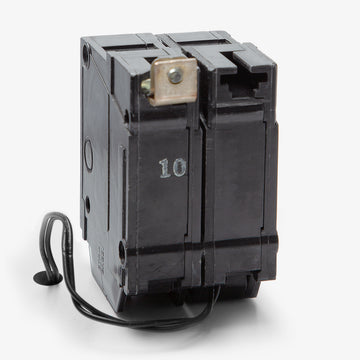

ABB / General Electric THQB1130ST1 Miniature Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
ABB / General Electric
THQB1130ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB1130ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB1130ST1 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB1130ST1 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1130ST1 |
| Series | THQB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE AQ Lighting Panels, GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQB1130ST1 - 30A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1130ST1-R |
| Series | THQB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE AQ Lighting Panels, GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQB1120ST1
20A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB1115ST1
15A 1 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2130ST1
30A 2 Pole Miniature Circuit Breaker
Description
Part of the Q-Line family, the GE THQB1130ST1 is a 30A, single-pole miniature circuit breaker built for commercial power distribution. It features a thermal-magnetic trip mechanism for reliable overcurrent protection. This unit bolts securely into GE A-Series panelboards and AQ lighting panels. The bolt-on mounting style ensures a rigid, vibration-resistant connection to the bus bar. A factory-installed 120VAC shunt trip enables remote tripping of the breaker for emergency shutdowns.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB1130ST1 |
| Series | THQB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE AQ Lighting Panels, GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break |
Product FAQs
5 answersWhat panels are compatible with the THQB1130ST1 breaker?
This bolt-on breaker is designed specifically for installation in GE A-Series panelboards and GE AQ lighting panels.
What does the ST1 suffix mean on this GE circuit breaker?
The ST1 suffix indicates the breaker includes a factory-installed 120VAC shunt trip accessory. This allows the breaker to be tripped remotely by an external control signal, such as an emergency stop button or fire alarm system.
Can I substitute a plug-in THQL breaker for this THQB model?
No. While both are part of the GE Q-Line family, THQL breakers are plug-in units for residential load centers. The THQB1130ST1 is a bolt-on breaker required for commercial A-Series and AQ panels. They cannot be interchanged.
Is this breaker suitable for high fault current applications?
The THQB1130ST1 has a standard interrupting rating of 10kAIC at 120V. If your commercial panel requires a higher short-circuit rating, you must use a THHQB series breaker, which raises the interrupting capacity to 22kAIC within the same bolt-on footprint.
How does the thermal-magnetic trip mechanism operate on this unit?
The fixed thermal-magnetic trip unit provides dual protection. The thermal component responds to sustained overloads with a long-time delay, while the magnetic component provides an instantaneous trip response to safely clear severe short circuits.
