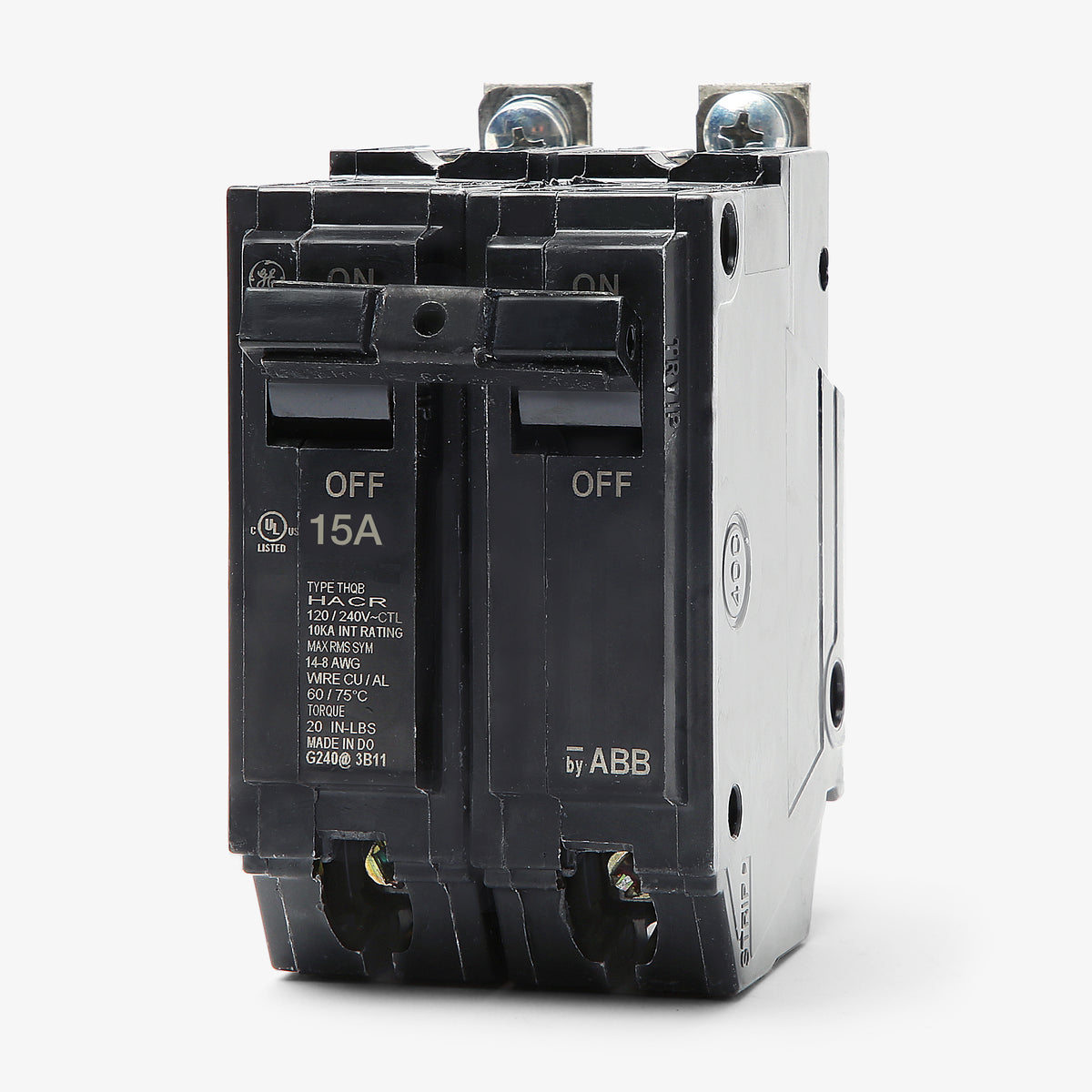

ABB / General Electric THQB2115 Miniature Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2115
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2115 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB2115 - 15A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2115 |
| Series | THQB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQB2115 - 15A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2115-R |
| Series | THQB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQB2120ST1
20A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2125
25A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2130
30A 2 Pole Miniature Circuit Breaker
Description
Rated at 10 kAIC, this 15-amp miniature circuit breaker offers dependable overcurrent and short-circuit protection for commercial electrical systems. It is designed to bolt securely into GE A-Series panelboards and AQ lighting panels, providing a rigid connection that withstands vibration. The Q-Line breaker features an internal common trip, HACR rating, and a quick-make/quick-break mechanism to ensure long-lasting operational reliability.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2115 |
| Series | THQB |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat is the difference between the THQB2115 and a THQL circuit breaker?
The THQB2115 is a bolt-on breaker designed for commercial panelboards, securing directly to the busbar with screws. THQL breakers are plug-in style units meant for residential load centers. They are not interchangeable.
Which panelboards accept the THQB2115 breaker?
This breaker fits General Electric A-Series panelboards and GE AQ Lighting Panels. Because it is a bolt-on unit, it will not fit standard GE plug-in load centers.
Is this 15-amp Q-Line breaker HACR rated?
Yes, the THQB2115 is UL listed for Heating, Air Conditioning, and Refrigeration (HACR) motor loads and equipment applications.
Will this breaker arrive with GE or ABB branding?
ABB acquired GE Industrial Solutions in 2018, so newly manufactured units may carry the ABB brand. They are the exact same OEM parts, built to the original Q-Line specifications, and are fully backward compatible with older GE panels.
How does a bolt-on connection benefit this breaker installation?
Screwing the breaker directly to the panel busbar provides a rigid mechanical connection. This prevents the breaker from vibrating loose over time, making it ideal for commercial or industrial environments.
What does the LI trip function mean?
LI stands for Long-Time and Instantaneous. It indicates the breaker utilizes a thermal-magnetic trip unit to provide thermal protection against prolonged overloads (Long-Time) and magnetic protection to instantly clear sudden short circuits (Instantaneous).
