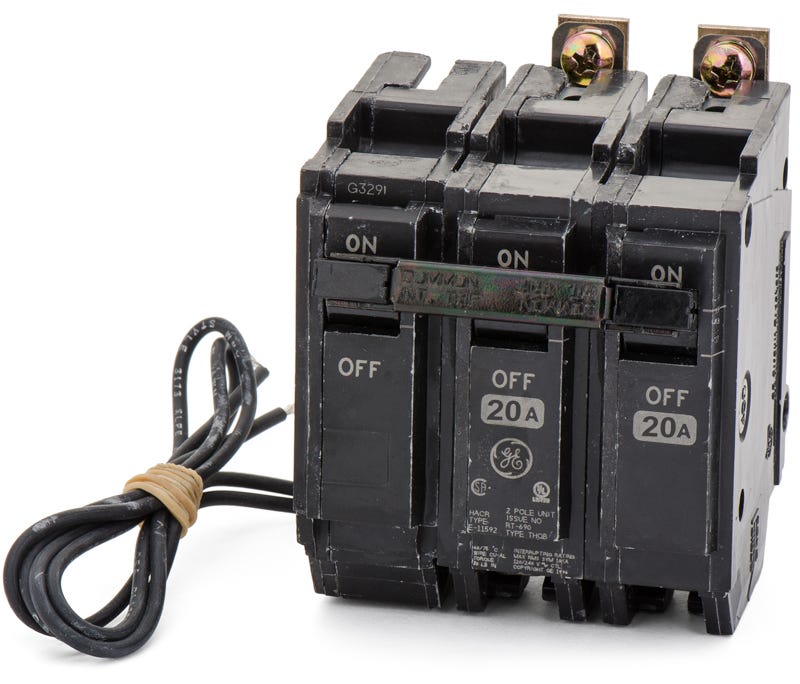

ABB / General Electric THQB2120ST1 Miniature Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2120ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2120ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2120ST1 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB2120ST1 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2120ST1 |
| Series | THQB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
Quantity
ABB / General Electric THQB2120ST1 - 20A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2120ST1-R |
| Series | THQB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
Similar Items
ABB / General ElectricTHQB2140ST1
40A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2150ST1
50A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2160ST1
60A 2 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial environments, the THQB2120ST1 delivers robust overcurrent protection with the added functionality of a factory-installed shunt trip. This allows for remote tripping of the circuit, which is essential for emergency shutdowns and automated control systems. It mounts securely into GE A-Series panelboards and AQ lighting panels. Rated at 10 kAIC at 120/240VAC, this two-pole breaker features a quick-make, quick-break mechanism and an internal common trip.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2120ST1 |
| Series | THQB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
8 answersWhat does the ST1 suffix indicate on the THQB2120ST1 breaker?
The ST1 suffix indicates that this breaker includes a factory-installed 120VAC shunt trip. This allows the circuit breaker to be opened remotely for emergency power cutoff.
Can I install this breaker in a standard GE residential load center?
No. The THQB2120ST1 is a bolt-on breaker intended for commercial GE A-Series panelboards and AQ lighting panels. Standard GE residential load centers require plug-in THQL style breakers.
What is the difference between GE THQB and THQL circuit breakers?
THQB breakers, like the THQB2120ST1, are bolt-on devices used primarily in commercial lighting panels and panelboards. THQL breakers are plug-in devices designed for residential load centers. They are not interchangeable.
How does this breaker connect to the panel bus?
The THQB2120ST1 features a bolt-on mounting style. It secures directly to the panelboard bus with screws, ensuring a reliable mechanical and electrical connection in commercial applications compared to plug-in alternatives.
Can I use this breaker in systems requiring a 22kAIC short-circuit rating?
No. The THQB2120ST1 has a maximum interrupting rating of 10kAIC at 120/240VAC. You will need to specify a breaker with a higher interrupting rating for systems with elevated available fault currents.
What trip technology does the THQB2120ST1 use?
This breaker utilizes a thermal magnetic trip unit with fixed long-time and instantaneous trip functions. The thermal element protects against gradual overloads, while the magnetic element trips instantly during severe short circuits.
Can I replace an older ABB THQB2120ST1 with a General Electric branded one?
Yes. ABB and General Electric THQB breakers are the exact same product manufactured to identical specifications, which is why they share the same catalog numbers.
How does the shunt trip function improve safety?
The factory-installed ST1 shunt trip allows auxiliary safety systems, emergency stop buttons, or fire alarms to remotely trigger the breaker to open. This cuts power to the circuit immediately during an emergency event.
