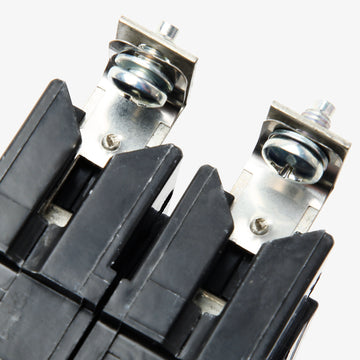

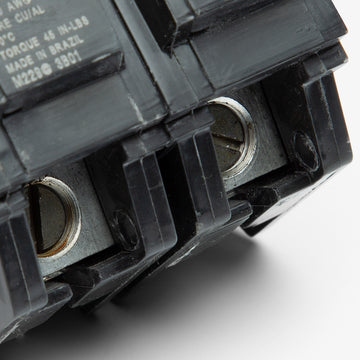

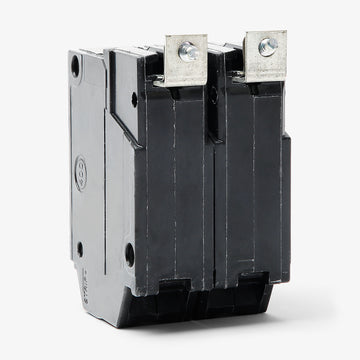

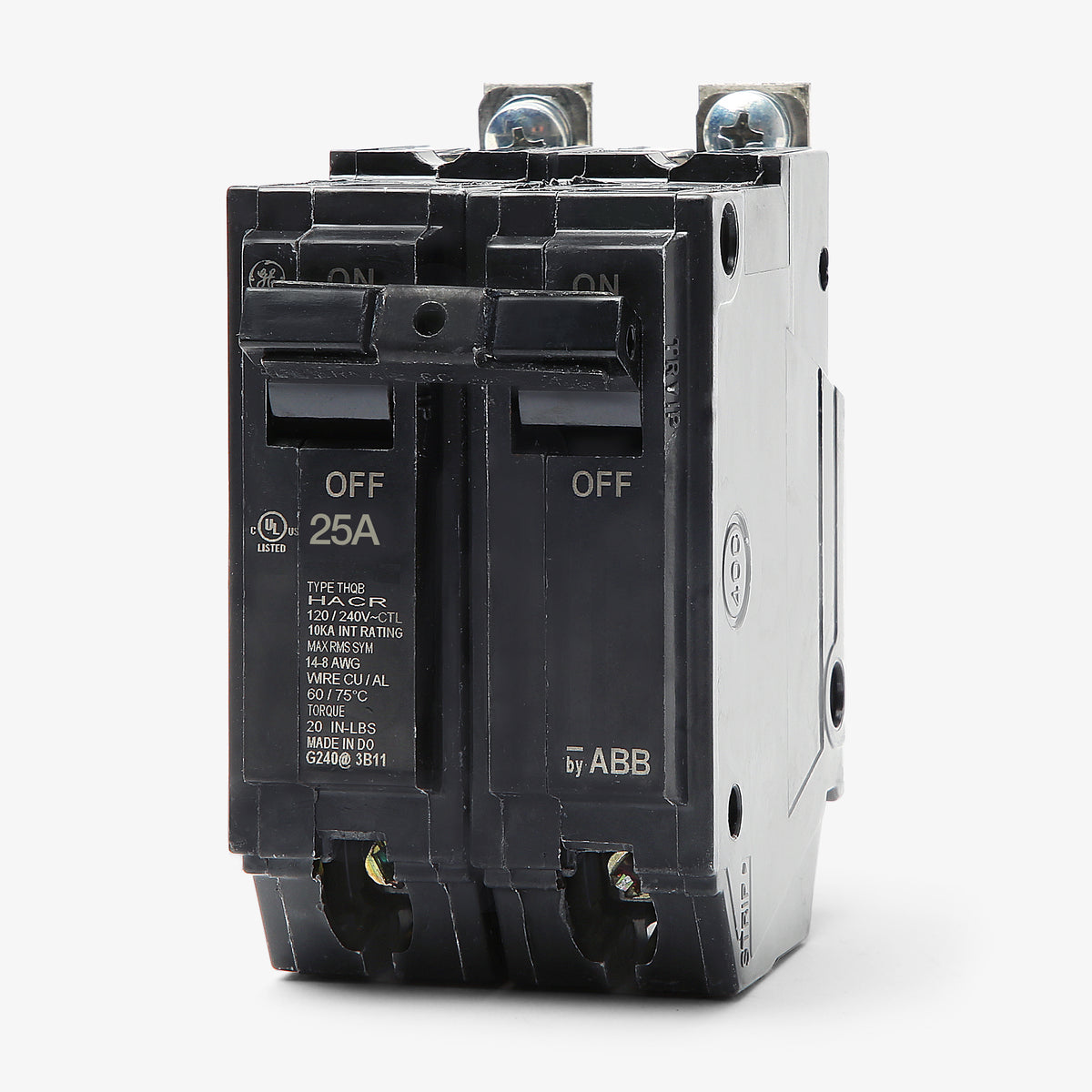

ABB / General Electric THQB2125 Miniature Circuit Breaker
- 25A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2125
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2125 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB2125 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2125 |
| Series | THQB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
ABB / General Electric THQB2125 - 25A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2125-R |
| Series | THQB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTHQB2130ST1
30A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2120
20A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2120ST1
20A 2 Pole Miniature Circuit Breaker
Description
Rated 10 kAIC at 120/240VAC, this 25-amp breaker provides essential overcurrent and short-circuit protection for commercial branch circuits. It is designed to bolt into GE A-Series panelboards and AQ lighting panels, offering a secure and stable connection to the busbar. The unit features a quick-make, quick-break mechanism and an internal common trip to ensure both poles open simultaneously during a fault. It is HACR rated for use with heating and air conditioning equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2125 |
| Series | THQB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE AQ Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersCan I install this THQB breaker in a standard GE Powermark Gold load center?
No. The THQB2125 is a bolt-on circuit breaker designed specifically for commercial GE A-Series panelboards and AQ Lighting Panels. Standard residential Powermark Gold load centers require THQL plug-in breakers.
What is the plug-in equivalent to the THQB2125?
If your panelboard requires a plug-in connection instead of a bolt-on connection, the direct 25-amp, 2-pole equivalent is the GE THQL2125.
Will this breaker arrive with GE or ABB branding?
It may arrive with either. ABB acquired GE Industrial Solutions, so the THQB2125 is manufactured to the exact same specifications under both brand names and is fully interchangeable.
How much panel space does the THQB2125 require?
Q-Line breakers are 1 inch wide per pole. Because this is a 2-pole breaker, it will require a total of 2 inches of horizontal mounting space on the panelboard bus.
What is the required tightening torque for the load lugs?
According to ABB and GE specifications, the box lugs should be torqued to 35 in-lb for 14 to 10 AWG wire and 40 in-lb for 8 AWG wire.
Is the THQB2125 HACR rated?
Yes. This circuit breaker carries a Heating, Air Conditioning, and Refrigeration (HACR) rating, making it suitable for protecting dedicated HVAC equipment circuits.
Does this breaker have an internal common trip mechanism?
Yes. It is manufactured with an internal common trip bar to ensure both poles open simultaneously if a fault is detected on either phase.
