ABB / General Electric THQB2130ST1 Miniature Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
ABB / General Electric
THQB2130ST1
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQB2130ST1
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQB2130ST1 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQB2130ST1 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2130ST1 |
| Series | THQB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Sold out
Quantity
ABB / General Electric THQB2130ST1 - 30A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2130ST1-R |
| Series | THQB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Similar Items
ABB / General ElectricTHQB2120ST1
20A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2150ST1
50A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQB2160ST1
60A 2 Pole Miniature Circuit Breaker
Description

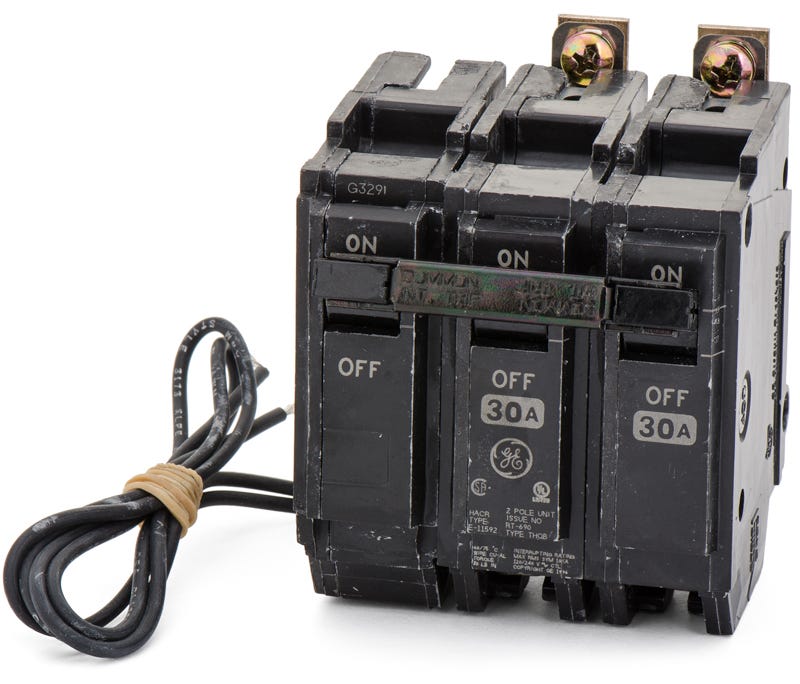

Providing remote shutdown capabilities, the GE THQB2130ST1 is a 2-pole, 30-amp miniature circuit breaker featuring a built-in 120VAC shunt trip. This allows the breaker to be tripped remotely for emergency stops or automated control systems. The Q-Line breaker installs into GE A-Series panelboards and lighting panels. Its bolt-on mounting style ensures a rigid connection to the bus, while the box lug terminals accept 14-8 AWG copper or 12-8 AWG aluminum wiring.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQB2130ST1 |
| Series | THQB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip (120VAC) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
5 answersWhich panelboards are compatible with the THQB2130ST1 circuit breaker?
This Q-Line bolt-on breaker is designed for use in GE A-Series panelboards, including AL, AQ, ALC, AQC, and Spectra series commercial lighting panels.
Can I install the THQB2130ST1 in a standard GE residential load center?
No. The THQB series features a bolt-on connection designed specifically for commercial panelboards. Standard GE residential load centers require THQL series plug-in breakers.
What does the ST1 suffix mean on the THQB2130ST1?
The ST1 suffix indicates that the breaker includes a factory-installed 120VAC shunt trip accessory. This allows the breaker to be tripped remotely via an external control signal for emergency shutdowns or automated systems.
How does the integrated shunt trip on the THQB2130ST1 enhance electrical safety?
The 120VAC shunt trip allows the breaker to be wired to emergency stop buttons, fire alarm relays, or other safety interlocks. When energized, it instantly opens the circuit to disconnect power from critical equipment during an emergency.
Why might my THQB2130ST1 breaker arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. As a result, current production of this exact catalog number may feature ABB, GE, or GE by ABB branding. The physical dimensions, mounting, and performance specifications remain completely identical.
